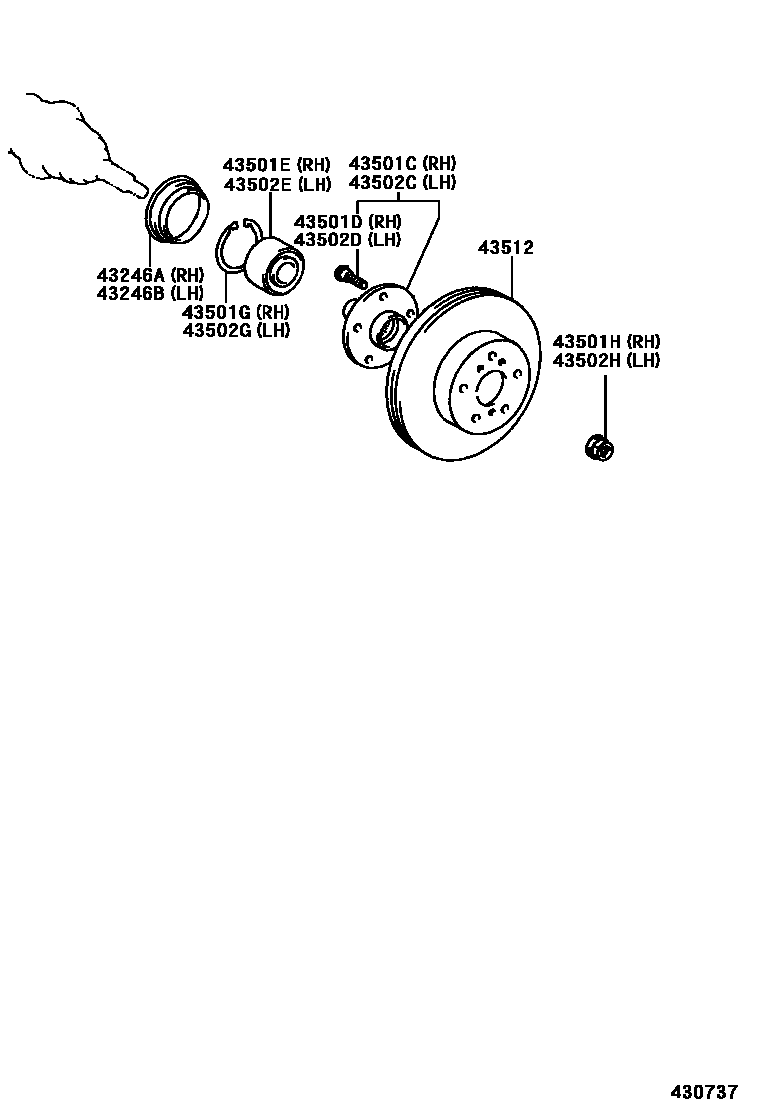

Toyota KLUGER — FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-28020i200308

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-28020i200308

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-28090i200308

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i200308

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-45003i200308

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001i200308

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200308

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-28090i200308

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i200308

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-45003i200308

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001i200308

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200308

43512DISC, FRONT

main43512-48030×2i200308-200405

main43512-48031×2i200405-200705

13 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota KLUGER

This section contains 13 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota KLUGER. Key components include: DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH).
