Toyota KLUGER L/V — SWITCH & RELAY & COMPUTER

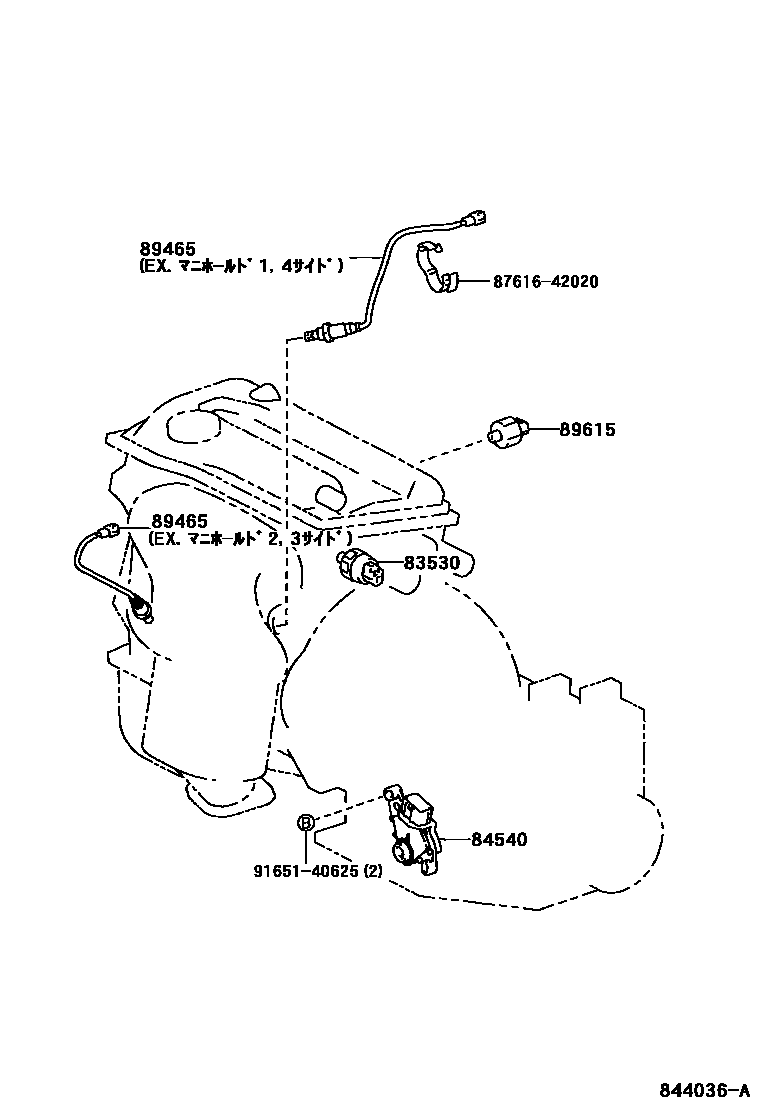

Parts diagram

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010i200308

main83530-28020i200011-200308

main83530-60020i200011-200308

main83530-AA011i200301-200308

84540SWITCH ASSY, NEUTRAL START

main84540-12230i200011-200202

main84540-32110i200202-200308

main84540-48010i200308-200705

89465SENSOR, OXYGEN

main89465-41060i200011-200308

main89465-48020i200011-200308

main89465-48030i200011-200308

main89465-48050i200011-200308

main89465-48130i200308

main89465-48150i200308

main89465-48160i200308

89615SENSOR, KNOCK CONTROL

main89615-12090×2i200011-200308

main89615-20090i200308

main89615-30080i200011-200104

main89615-32030i200011-200104

main89615-44010i200104-200308

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9165140625

main91651-40625

6 parts on this diagram · 12 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota KLUGER L/V

This section contains 127 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota KLUGER L/V. Key components include: RADIATOR & WATER OUTLET, RELAY ASSY, STARTER, SENSOR ASSY, BATTERY CURRENT, SENSOR, BATTERY THERMOMETER, STEERING COLUMN & SHAFT.
