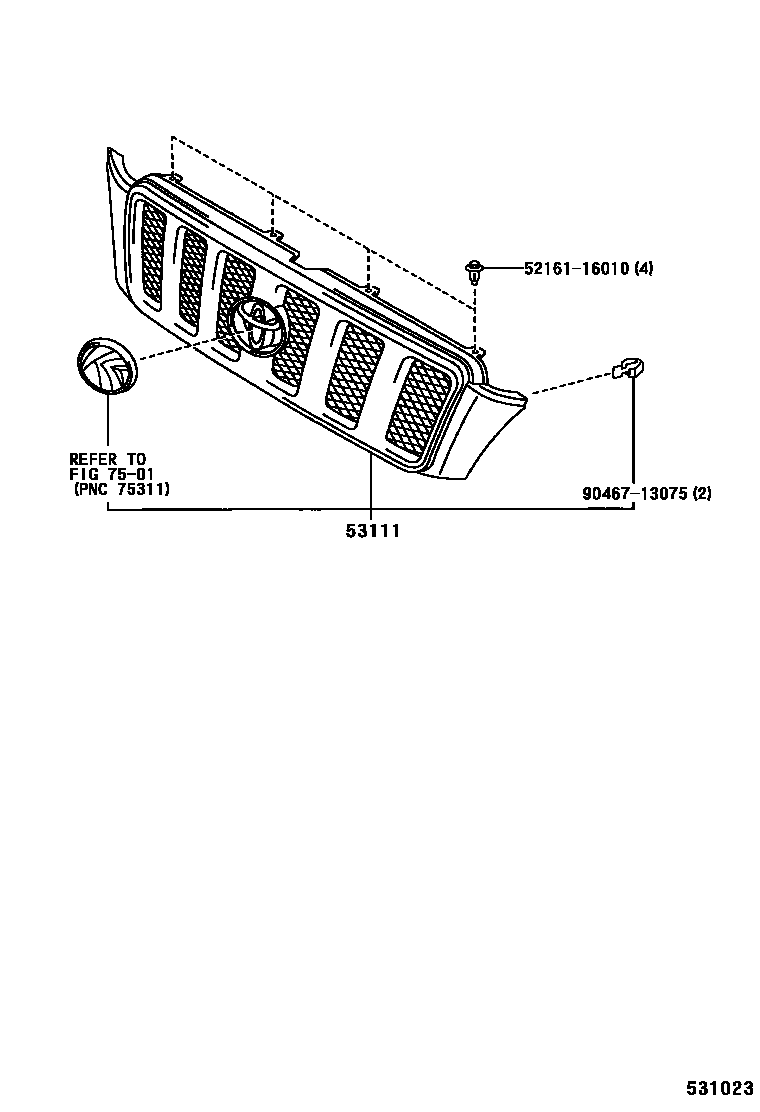

Toyota KLUGER L/V — RADIATOR GRILLE

53111GRILLE, RADIATOR

main53101-48050-A0i200011-200308

WHITE PEARL CS.,062

main53101-48050-B0i200011-200308

SILVER ME.,1C0

main53101-48050-B1i200201-200212

main53101-48050-B2i200212-200308

main53101-48050-C0i200011-200308

BLACK,202

main53101-48050-D0i200011-200308

RED M.M.,3N8

main53101-48050-E0i200011-200308

BEIGE SF.,4P2

main53101-48050-G0i200011-200308

DARK GREEN MC.,6R4

main53101-48050-J0i200011-200308

GRAYISH BLUE,8N6

main53101-48050-J1i200011-200308

DK.BLUE M.M.,8P4

main53101-48090-A0i200308-200705

WHITE PEARL CS.,062

main53101-48090-B0i200308-200705

SILVER ME.,1C0

main53101-48090-C0i200308-200705

BLACK,202

main53101-48090-D0i200308-200705

DK. RED M.M.,3Q3

main53101-48090-E0i200606-200705

BEIGE ME.,4R4

main53101-48090-F0i200308-200705

GOLD ME.,596

main53101-48090-J0i200308-200705

GRAYISH BLUE ME.,8N6

main53101-48090-J1i200308-200705

DK.BLUE M.M.,8P4

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9046713075

main90467-13075

4 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE for Toyota KLUGER L/V

This section contains 4 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota KLUGER L/V. Key components include: GRILLE, RADIATOR, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR), CUSHION, REAR BUMPER GUARD, NO.1.
