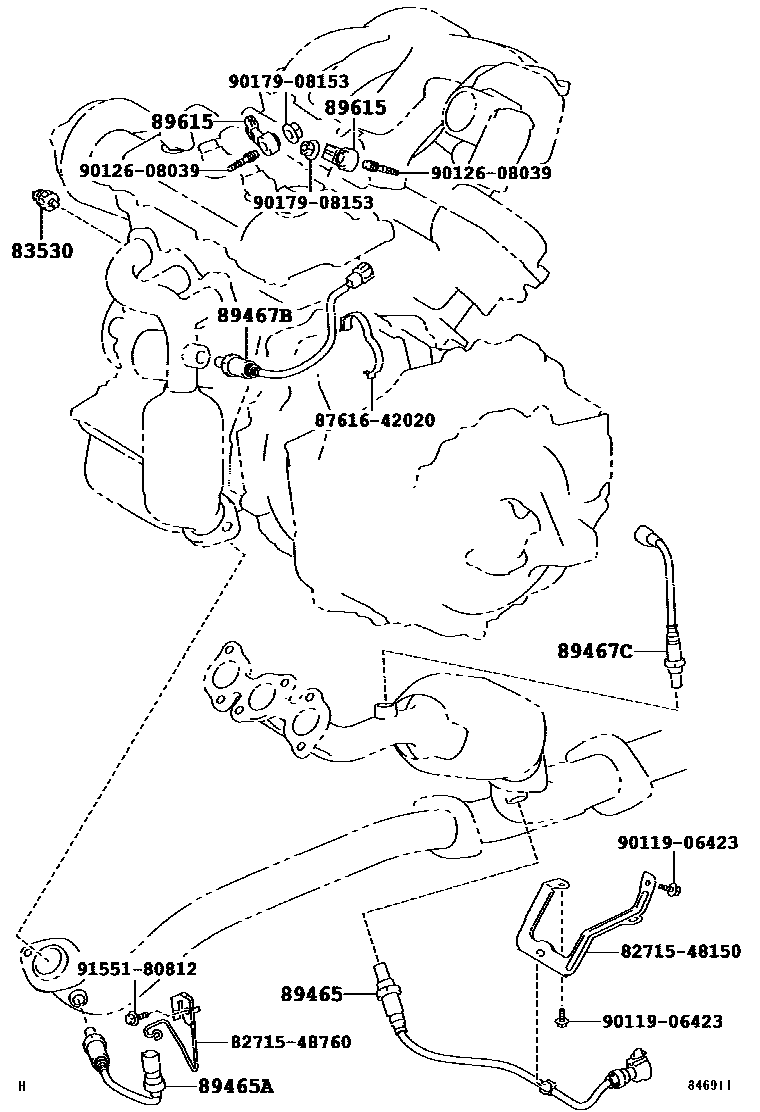

Toyota KLUGER HV — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1�������� 0003 1�������� �������� 0004 1��� 0005 1������������ 0006 1�������� & ��������� ���� 0007 1���,���,���,��� & �������

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMHU28200503

main83530-60020iMHU28200503

89465SENSOR, OXYGEN

main89465-48200iMHU28200503

89465ASENSOR, OXYGEN NO.2

main89465-48210iMHU28200503

89467BSENSOR, AIR FUEL RATIO

main89467-48060iMHU28200503

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-48080iMHU28200503

89615SENSOR, KNOCK CONTROL

main89615-20090×2iMHU28200503

8271548150BRACKET,WIRING HARNESS CLAMP

main82715-48150

8271548760BRACKET,WIRING HARNESS CLAMP

main82715-48760

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9011906423

main90119-06423

9012608039

main90126-08039

9017908153

main90179-08153

9155180812

main91551-80812

13 parts on this diagram · 7 diagrams in section
