Toyota KLUGER HV — HEV CONTROL COMPUTER

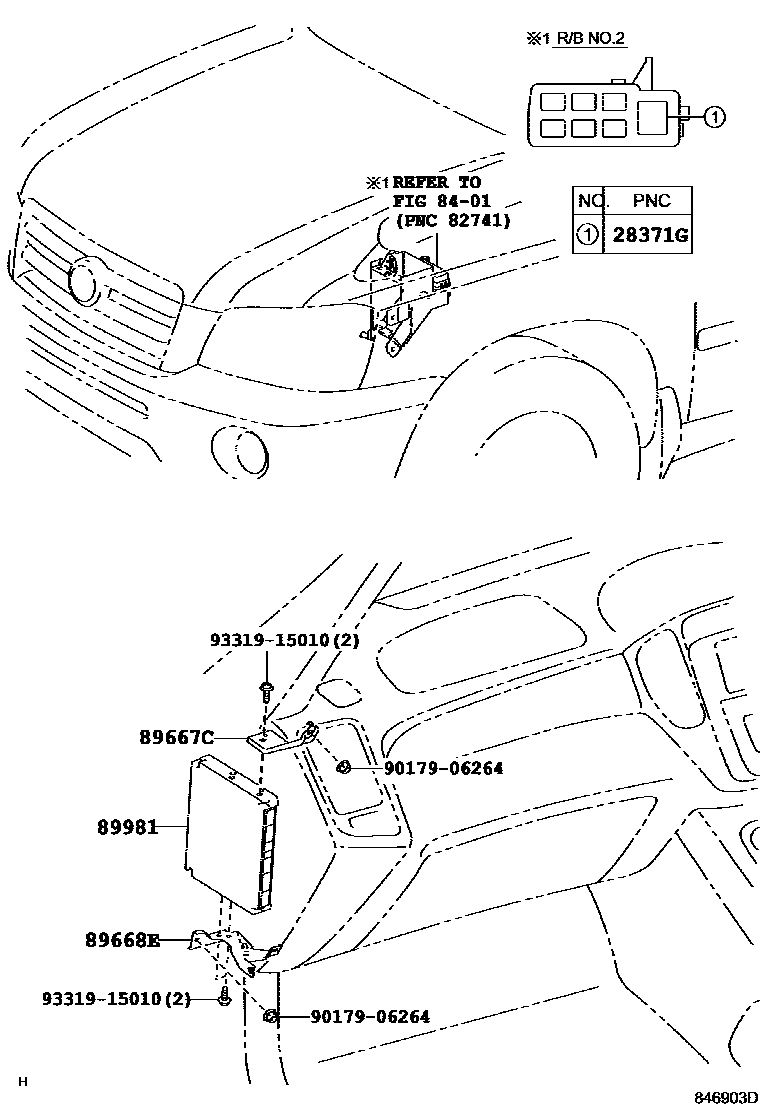

Parts diagram

28371GRELAY, IGNITION CONTACT

main90987-02025i200503-200705

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89667CBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-48070i200503-200705

89668EBRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48040i200503

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-48120i200503-200608

main89981-48300i200608

9017906264

main90179-06264

9331915010

main93319-15010

7 parts on this diagram · 1 diagram in section

HEV CONTROL COMPUTER for Toyota KLUGER HV

This section contains 7 genuine Toyota parts for the HEV CONTROL COMPUTER system of the Toyota KLUGER HV. Key components include: RELAY, IGNITION CONTACT, SWITCH & RELAY & COMPUTER, BRACKET, ENGINE CONTROL COMPUTER, NO.1, BRACKET, ENGINE CONTROL COMPUTER, NO.2, COMPUTER, HYBRID VEHICLE CONTROL.
