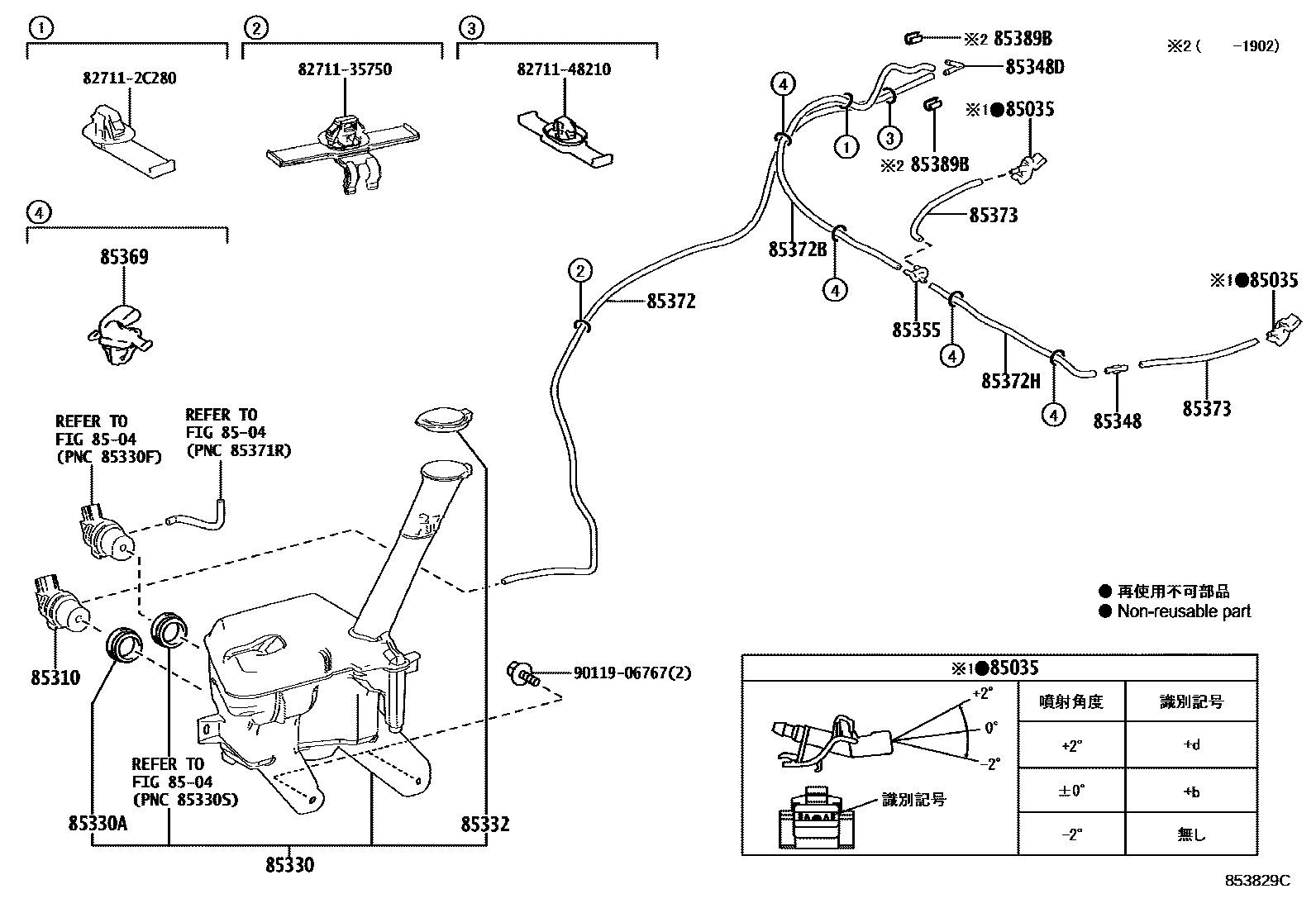

Toyota JPNTAXI — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2iNTP10201710

main85381-30230×2iNTP10201710

main85381-30240×2iNTP10201710

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iNTP10201710

85330JAR ASSY, WINDSHIELD WASHER

main85315-52420iNTP10201710

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iNTP10201710

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iNTP10201710

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNTP10201710

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-12360iNTP10201710

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iNTP10201710

85369CLAMP

main85371-12040×4iNTP10201710

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iNTP10201710

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iNTP10201710

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33299iNTP10201710

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iNTP10201710

85389BPROTECTOR, WINDSHIELD WASHER

main85389-2B270×2iNTP10201710-201902

827112C280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C280

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750

8271148210WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48210

9011906767

main90119-06767

19 parts on this diagram · 1 diagram in section
