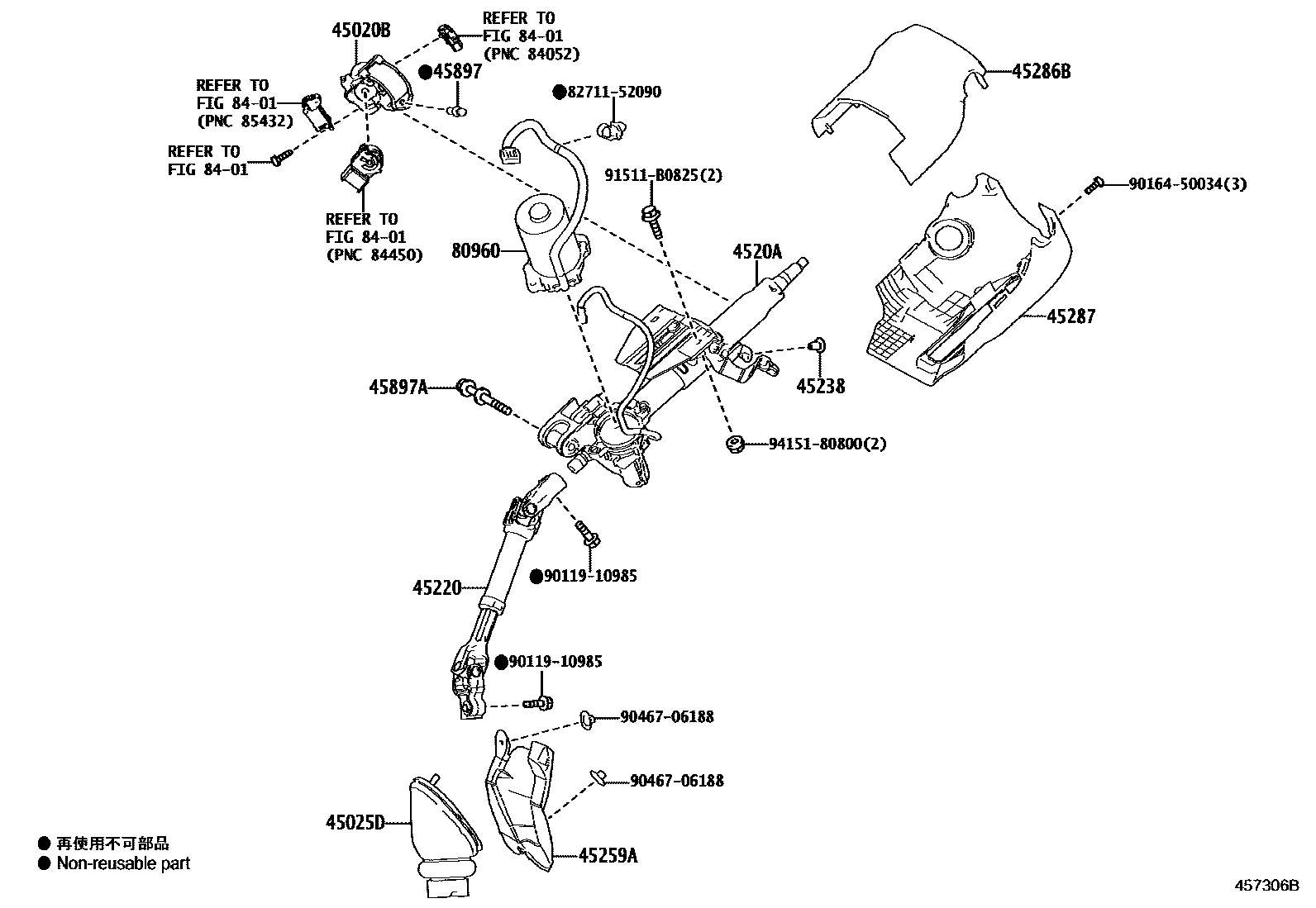

Toyota JPNTAXI — STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
45220SHAFT ASSY, STEERING INTERMEDIATE
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45259ASHEET, COLUMN HOLE COVER SILENCER
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM4#
BLACK,TRIM4#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM4#
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
80960MOTOR ASSY, POWER STEERING
8401
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
9011910985
main90119-10985
9016450034
main90164-50034
9046706188
main90467-06188
91511B0825
main91511-B0825
9415180800
main94151-80800
18 parts on this diagram · 1 diagram in section
