Toyota JPNTAXI — ROOF PANEL & BACK WINDOW GLASS

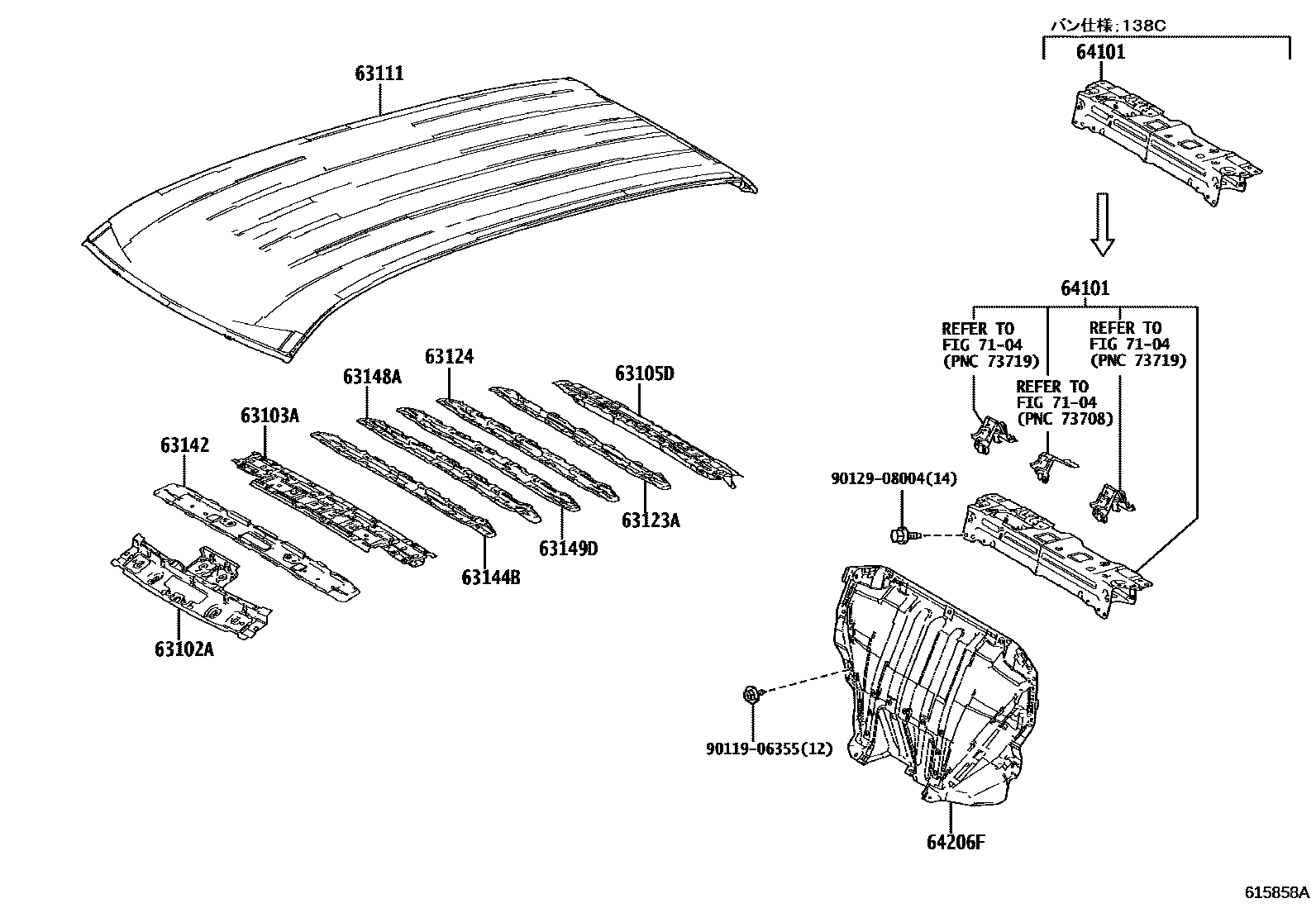

Parts diagram

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-15020i201710-202008

main63102-15021i202009

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-15040i201710

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-15030i201710

63111PANEL, ROOF

main63111-15030i201710

63123AREINFORCEMENT, ROOF PANEL, REAR NO.1

main63125-15010i201710

63124REINFORCEMENT, ROOF PANEL, NO.1

main63124-15010i201710

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-15020i201710

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-15010i201710

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-15010i201710

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-15010i201710

64101PANEL SUB-ASSY, UPPER BACK

main64101-15010i201710-202104

main64101-15011i202105

main64101-15020i202001-202006

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-15010i201710-202401

main64206-15011i202402

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

9011906355

main90119-06355

9012908004

main90129-08004

15 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK WINDOW GLASS for Toyota JPNTAXI

This section contains 15 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota JPNTAXI. Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, REINFORCEMENT SUB-ASSY, ROOF PANEL, FRAME SUB-ASSY, BACK WINDOW, UPPER, PANEL, ROOF, REINFORCEMENT, ROOF PANEL, REAR NO.1.
