Toyota JPNTAXI — ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-15070-B0i201710

LT.GRAY,TRIM4#

main63310-15080-B0i201710

LT.GRAY,TRIM4#

main63310-15110-B0i201909-201912

63310DCLIP, ROOF HEADLINING

main90467-05168-B1×5i201710

LT.GRAY,TRIM4#

63310KCLIP

main90467-10161×5i201710

63342PAD, ROOF SILENCER, NO.2

main63343-15030i201710

63343PAD, ROOF SILENCER, NO.3

main63342-15020i201710

63343BPAD, ROOF SILENCER, REAR

main63341-15030i201710

63344PAD, ROOF SILENCER, NO.4

main63341-15030i201710

63345PAD, ROOF SILENCER, NO.5

main63342-15020i201710

63351CPAD, ROOF HEADLINING

main63351-15020i201710

63353CPAD, ROOF HEADLINING, CENTER

main63353-15010×2i201710

63383RETAINER, ROOF HEADLINING, REAR RH

main63381-15030i201710

63384RETAINER, ROOF HEADLINING, REAR LH

main63382-15030i201710

63391TRIM, ROOF HEADLINING, FRONT

main63391-15010i201710

63392TRIM, ROOF HEADLINING, REAR

main63392-15030i201710

63745BRACKET, ROOF HEADER GARNISH

main63745-15010i201710

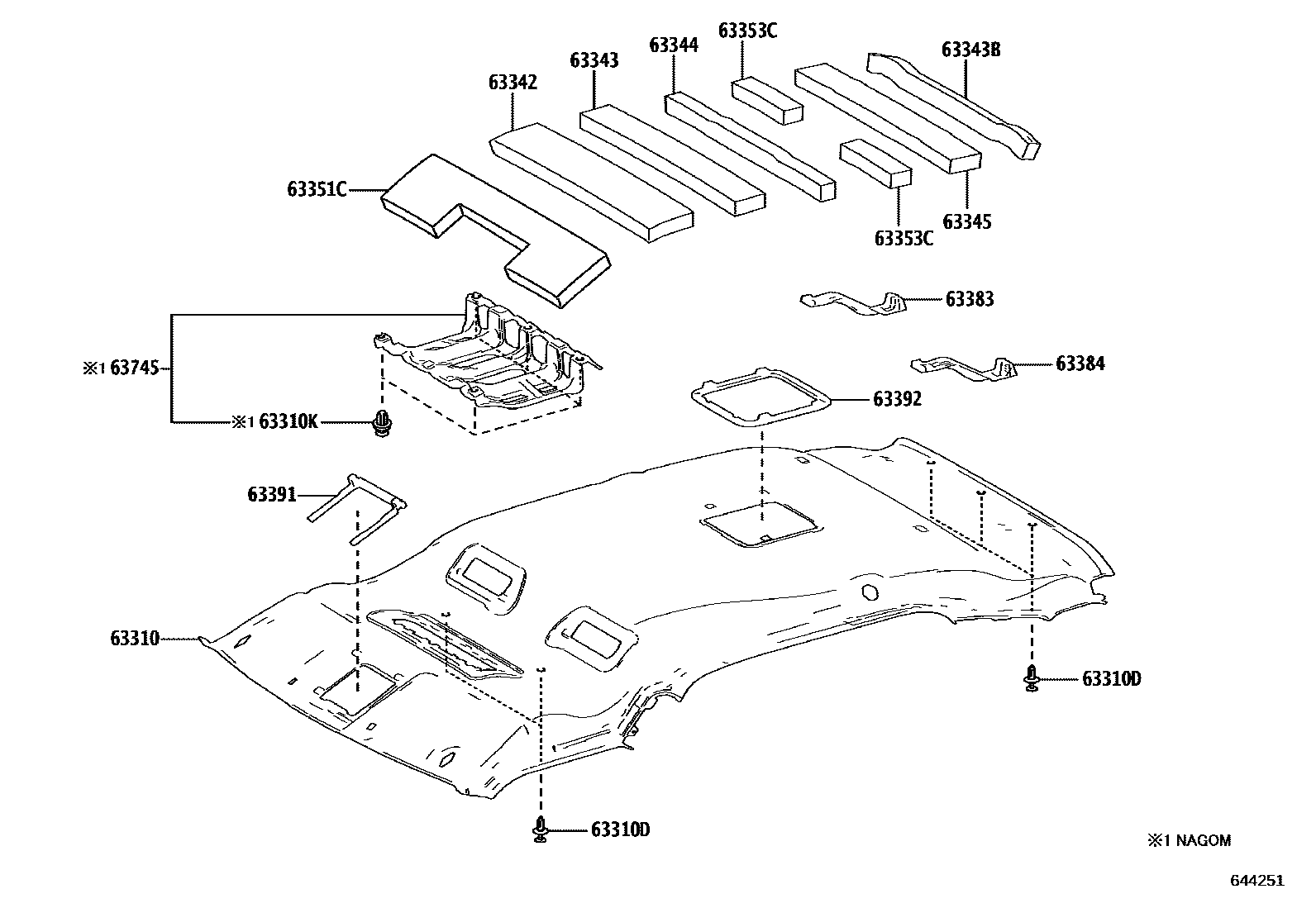

15 parts on this diagram · 1 diagram in section

ROOF HEADLINING & SILENCER PAD for Toyota JPNTAXI

This section contains 15 genuine Toyota parts for the ROOF HEADLINING & SILENCER PAD system of the Toyota JPNTAXI. Key components include: HEADLINING ASSY, ROOF, CLIP, ROOF HEADLINING, CLIP, PAD, ROOF SILENCER, NO.2, PAD, ROOF SILENCER, NO.3.
