Toyota JPNTAXI — REAR DOOR WINDOW REGULATOR & HINGE

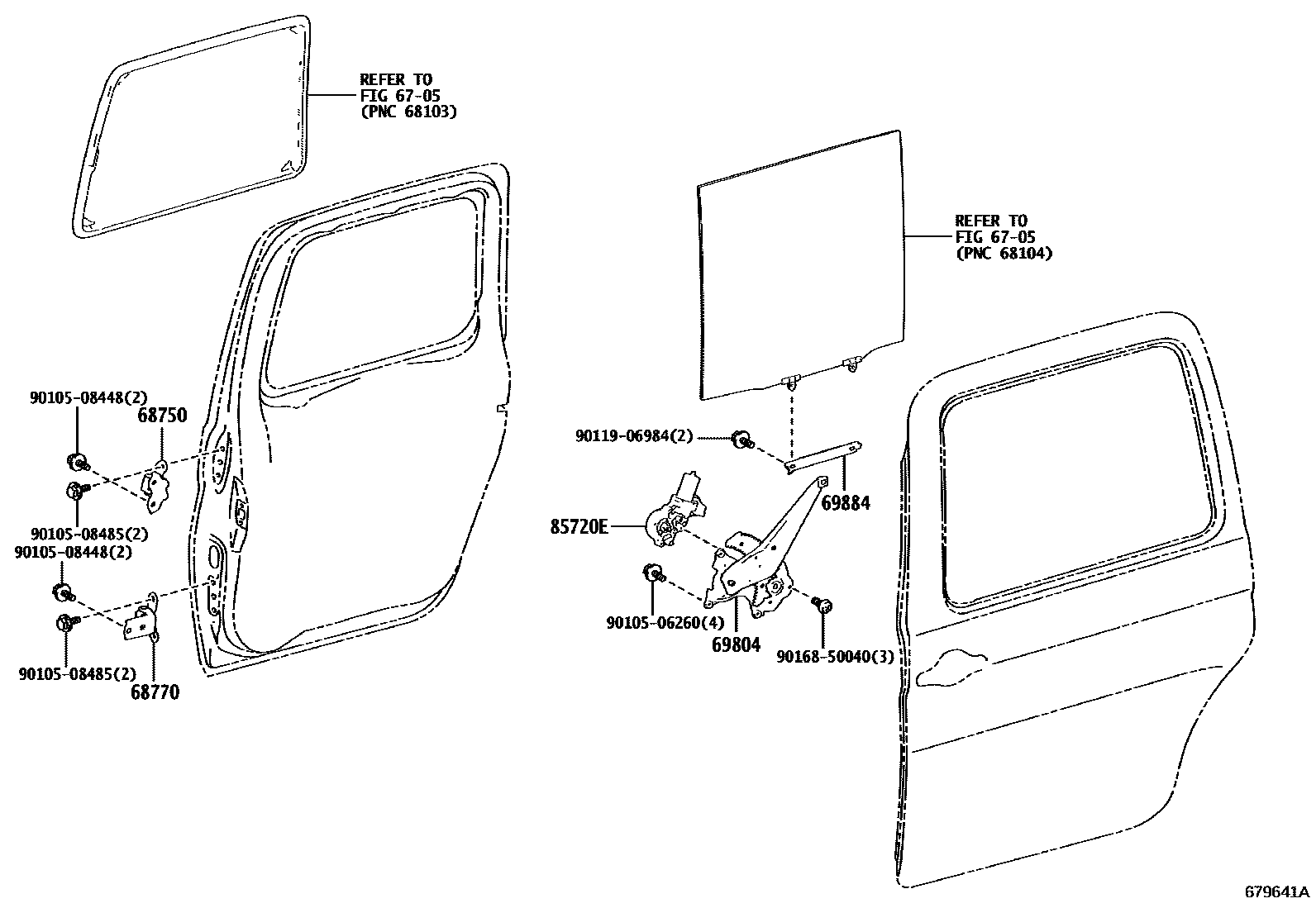

Parts diagram

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122i201710

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031i201710

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-10030i201710

69884BRACKET, REAR DOOR WINDOW REGULATOR LIFT ARM, LH

main69884-15010i201710

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-52241i201710-201901

main85710-52280i201902

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

11 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota JPNTAXI

This section contains 11 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota JPNTAXI. Key components include: REAR DOOR PANEL & GLASS, HINGE ASSY, REAR DOOR, UPPER RH, HINGE ASSY, REAR DOOR, LOWER RH, REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH, BRACKET, REAR DOOR WINDOW REGULATOR LIFT ARM, LH.
