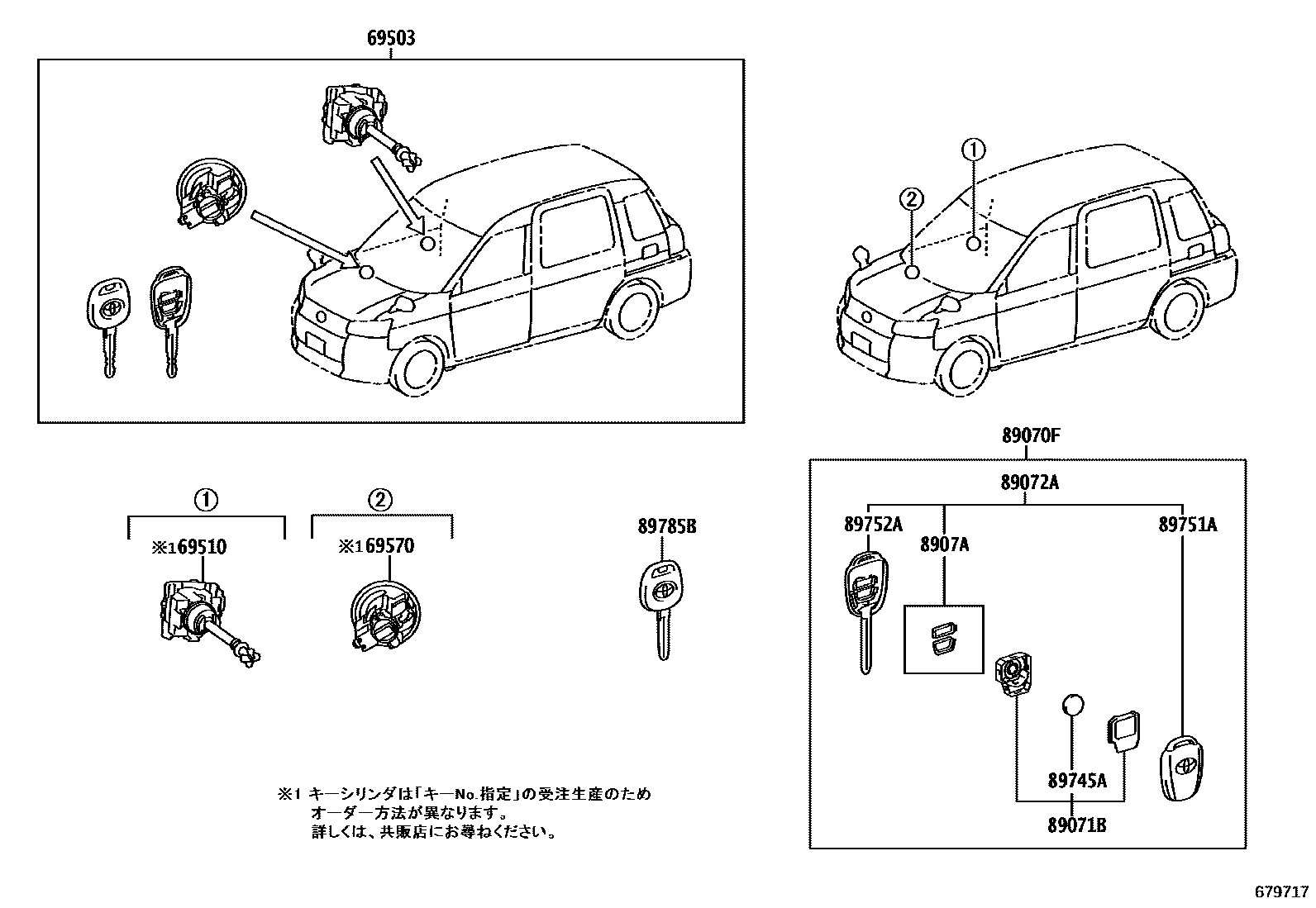

Toyota JPNTAXI — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-15100iNTP10201710

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-15010iNTP10201710

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-22130iNTP10201710

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-15030iNTP10201710

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-52320iNTP10201710

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-42400iNTP10201710

8907ASWITCH SET, TRANSMITTER

main8907A-52010iNTP10201710

89745ABATTERY, TRANSMITTER

main89745-48030iNTP10201710

sub89745-71010

89751ACOVER, TRANSMITTER HOUSING

main89751-42090iNTP10201710

89752ACASE, TRANSMITTER HOUSING

main89752-42050iNTP10201710

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-26040iNTP10201710

11 parts on this diagram · 1 diagram in section
