Toyota JPNTAXI — IGNITION COIL & SPARK PLUG / GLOW PLUG

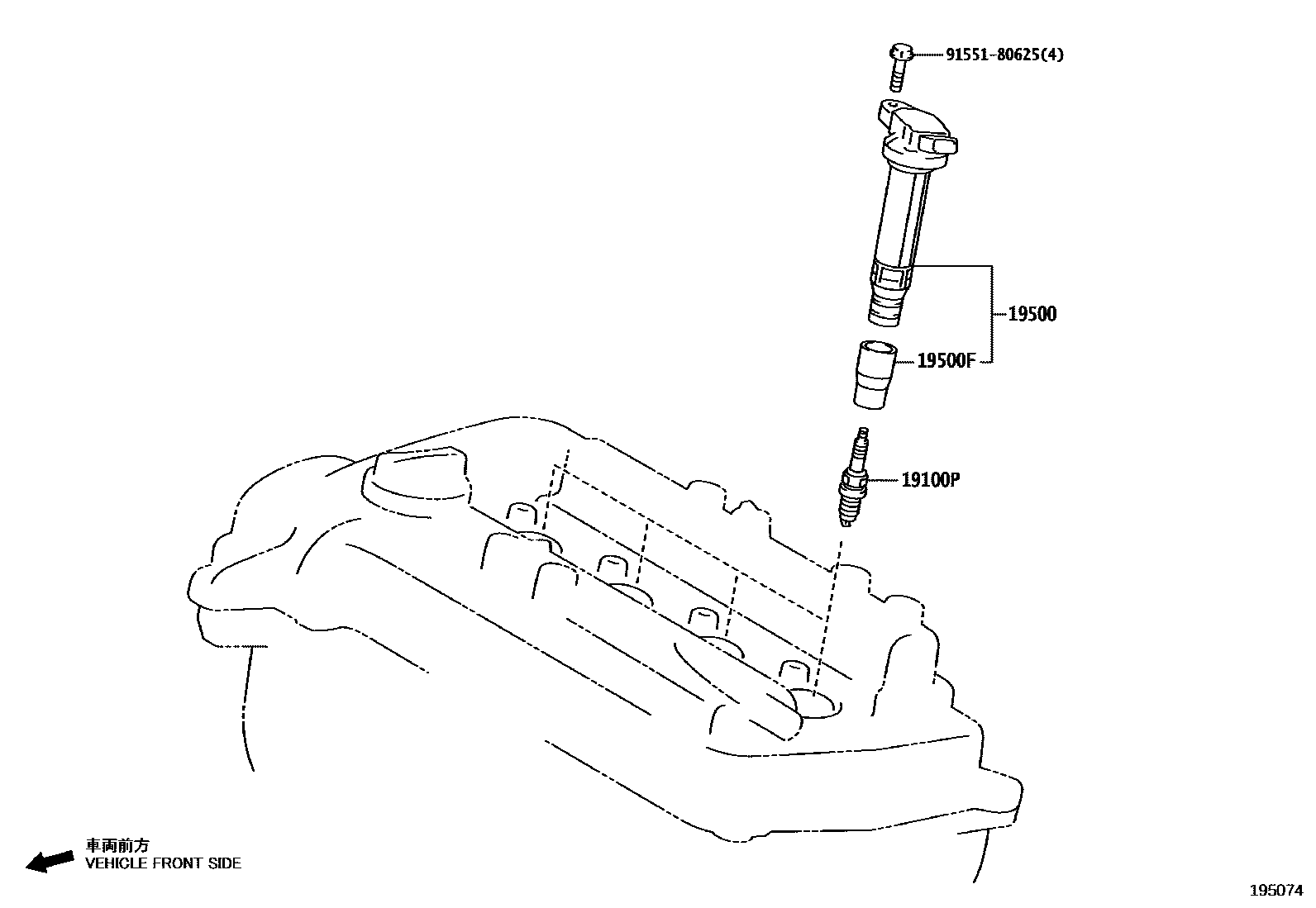

Parts diagram

19100PPLUG, SPARK

main90919-01294×4i201710

19500COIL ASSY, IGNITION

main90919-02274×4i201710

19500FCAP, PLUG

main90919-11010×4i201710

9155180625

main91551-80625

4 parts on this diagram · 1 diagram in section
