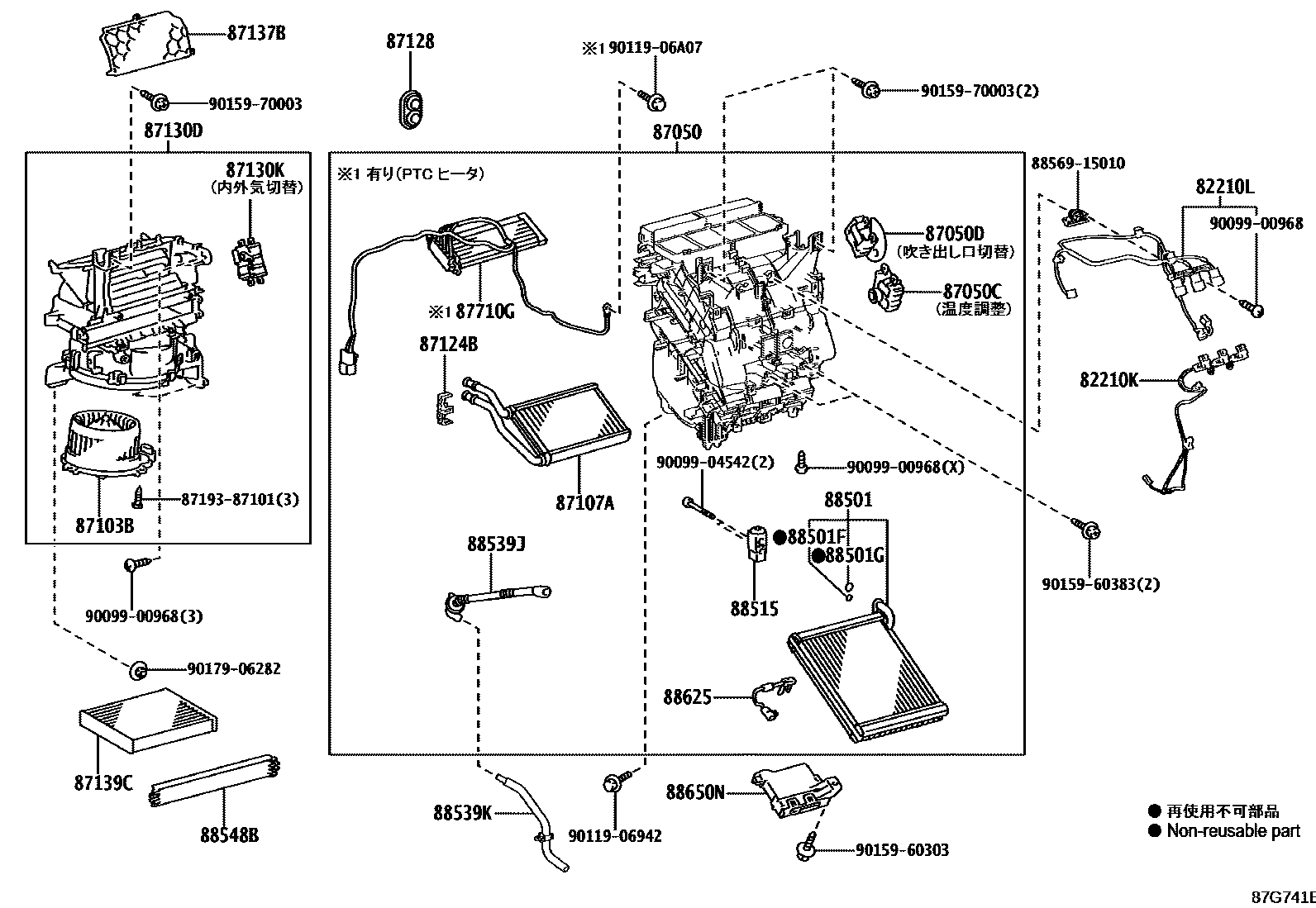

Toyota JPNTAXI — HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
82210LHARNESS ASSY, AIR CONDITIONER, NO.2
87050RADIATOR ASSY, AIR CONDITIONER
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87124BCLAMP, HEATER
87128GROMMET, HEATER
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87137BCOVER, HEATER BLOWER
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
88515VALVE, COOLER EXPANSION
88539JHOSE, DRAIN COOLER
88539KHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
8719387101
main87193-87101
8856915010CLAMP (FOR COOLER RELAY)
main88569-15010
9009900968
main90099-00968
9009904542
main90099-04542
9011906942
main90119-06942
9011906A07
main90119-06A07
9015960303
main90159-60303
9015960383
main90159-60383
9015970003
main90159-70003
9017906282
main90179-06282
33 parts on this diagram · 2 diagrams in section
HEATING & AIR CONDITIONING - COOLER UNIT for Toyota JPNTAXI
This section contains 38 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER UNIT system of the Toyota JPNTAXI. Key components include: HARNESS ASSY, AIR CONDITIONER, HARNESS ASSY, AIR CONDITIONER, NO.2, RADIATOR ASSY, AIR CONDITIONER, DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1, DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2.
