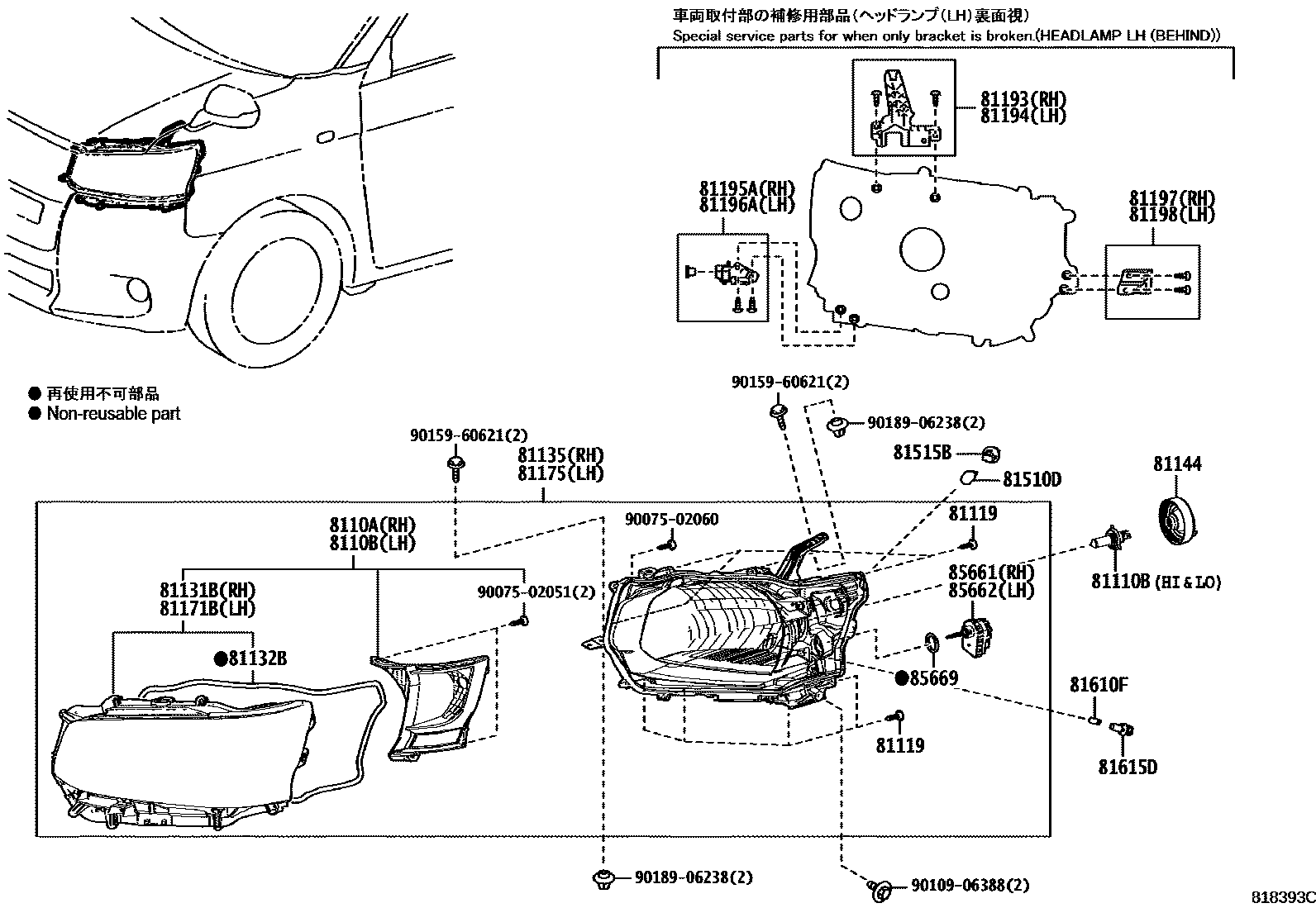

Toyota JPNTAXI — HEADLAMP
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
81110BBULB(FOR HEADLAMP, NO.1)
81119SCREW, HEADLAMP
81131BHEAD LAMP LENS, RH
81132BGASKET, HEADLAMP LENS
81135UNIT ASSY, HEADLAMP, RH
81144COVER, HEADLAMP, NO.1
81171BHEAD LAMP LENS, LH
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81197BRACKET, HEADLAMP, LOWER RH
81198BRACKET, HEADLAMP, LWR LH
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9007502051
main90075-02051
9007502060
main90075-02060
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238
28 parts on this diagram · 2 diagrams in section
