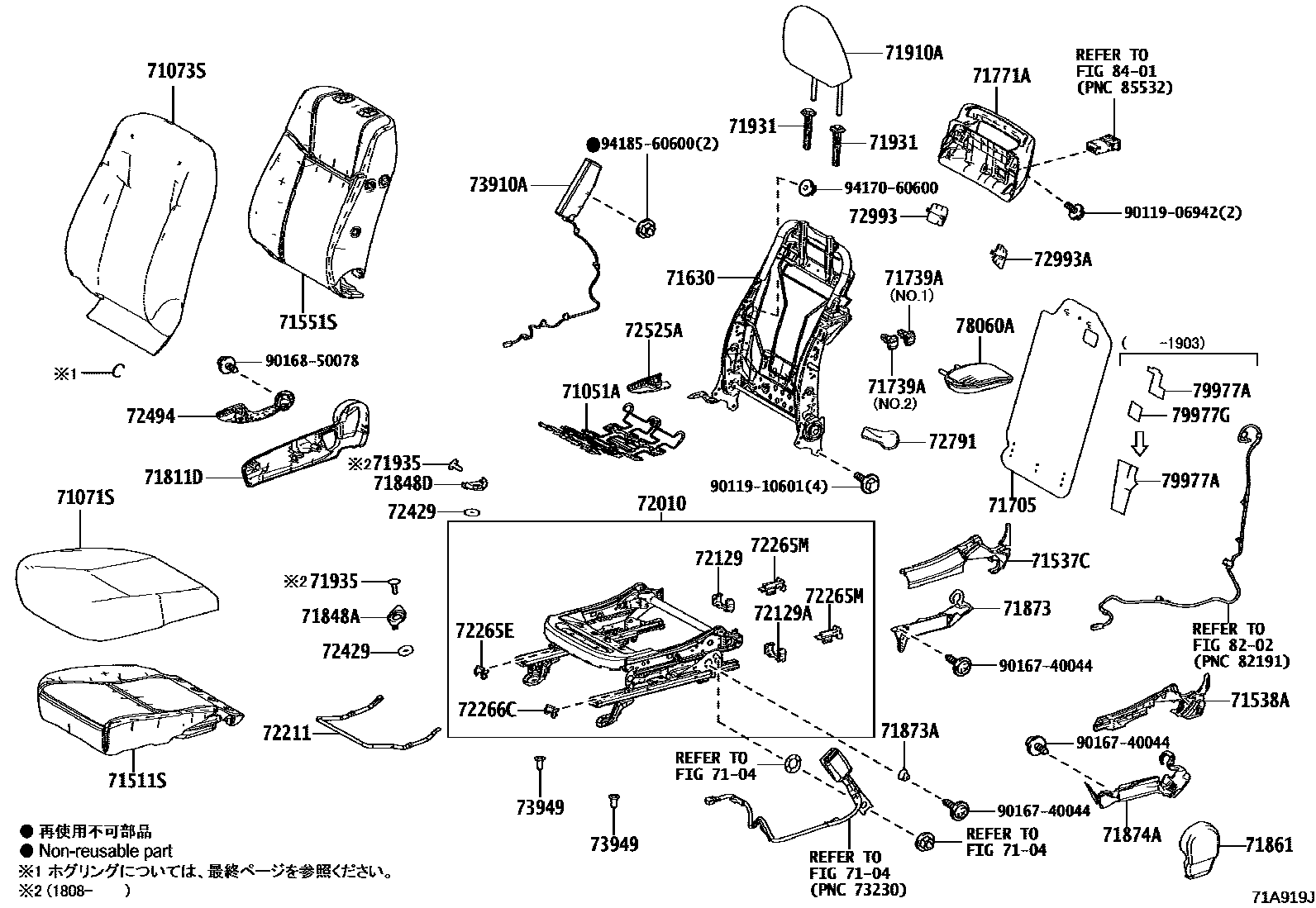

Toyota JPNTAXI — FRONT SEAT & SEAT TRACK

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-21040i201710

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-15010-C2i201710-202105

BLACK,TRIM4#

main71071-15030-C0i202105-202205

BLACK,TRIM4#

main71071-15031-C0i202205

BLACK,TRIM4#

main71071-15050-C2i201710-202105

BLACK,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-15020-C3i201710-201903

BLACK,TRIM4#

main71073-15021-C3i201903-202105

BLACK,TRIM4#

main71073-15040-C3i201710-201903

BLACK,TRIM4#

main71073-15041-C3i201903-202105

BLACK,TRIM4#

main71073-15050-C0i202105-202205

BLACK,TRIM4#

main71073-15051-C0i202205

BLACK,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-15010i201710

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-52150-C1i201710

BLACK,TRIM4#

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-52090-C1i201710

BLACK,TRIM4#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-15020i201710-201903

main71551-15021i201903

71630SPRING ASSY, FRONT SEATBACK, RH

main71630-15020i201710-201903

main71630-15021i201903

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-15010i201710

71739ABEZEL, FRONT SEATBACK

main71739-15010-C0×2i201710-201903

main71739-15020-C0i201903

71771ABOARD, FRONT SEATBACK

main71771-15020-C1i201710

BLACK,TRIM4#

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-15020-C1i201710

BLACK,TRIM4#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-15020-C0i201710

BLACK,TRIM4#

71848DCAP, SEAT ADJUSTER COVER, RH(FOR RH SEAT)

main71848-15030-C0i201710

BLACK,TRIM4#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-52230-C1i201710

BLACK,TRIM4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47040i201710

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-68020i201710

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47040i201710

71910AHEADREST ASSY, FRONT SEAT

main71910-15040-C3i201710-202205

BLACK,TRIM4#

main71910-15041-C3i202205-202402

BLACK,TRIM4#

main71910-15060-C0i202402

BLACK,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-C4×2i201710

main71931-47020-C4×2i201710

71935CLIP

main90467-05045-C0×2i201808

BLACK,TRIM4#

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-15040i201710

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-52180i201710

72129APROTECTOR, SEAT TRACK LOWER RAIL, NO.2

main72129-52180i201710

72211HANDLE, SEAT TRACK ADJUSTING

main72211-12340i202203

main72211-15020i201710-202203

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-15010-C0i201710

BLACK,TRIM4#

72265ECOVER, SEAT TRACK UPPER RAIL, RH

main72265-60110i201710

72265MCOVER, SEAT TRACK UPPER RAIL, RH

main72265-15020i201710-202007

main72265-52040i202008

72266COVER, SEAT TRACK UPPER RAIL, LH

main72266-15010-C0i201710

BLACK,TRIM4#

72266CCOVER, SEAT TRACK UPPER RAIL, LH

main72265-60110i201710

72429PLATE, FRONT SEAT ADJUSTER, RH

main72429-15010×2i201710

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-68011-C1i201710

BLACK,TRIM4#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-C1i201710

BLACK,TRIM4#

72791LEVER, LUMBAR SUPPORT

main72791-15010-C1i201710

BLACK,TRIM4#

72993COVER, FRONT SEATBACK

main72993-15010-C1×2i201710

BLACK,TRIM4#

72993ACOVER, FRONT SEATBACK

main72993-15030-C1×2i201710

BLACK,TRIM4#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-15010i201710

73949CAP

main71848-76010×2i201710

78060ATABLE ASSY, FRONT SEATBACK, RH

main78060-15010-C2i201710-201903

BLACK,TRIM4#

main78060-15011-C2i201903

BLACK,TRIM4#

79977AFELT, SEATBACK

main79977-15010i201710-201903

main79977-15030i201903

79977GFELT, FRONT SEATBACK, RH

main79977-15020i201710-201903

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906942

main90119-06942

9011910601

main90119-10601

9016740044

main90167-40044

9016850078

main90168-50078

9417060600

main94170-60600

9418560600

main94185-60600

50 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK for Toyota JPNTAXI

This section contains 122 genuine Toyota parts for the FRONT SEAT & SEAT TRACK system of the Toyota JPNTAXI. Key components include: SEAT BELT & CHILD RESTRAINT SEAT, SPRING SUB-ASSY, FRONT SEAT CUSHION, RH, COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE), COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE), COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE).
