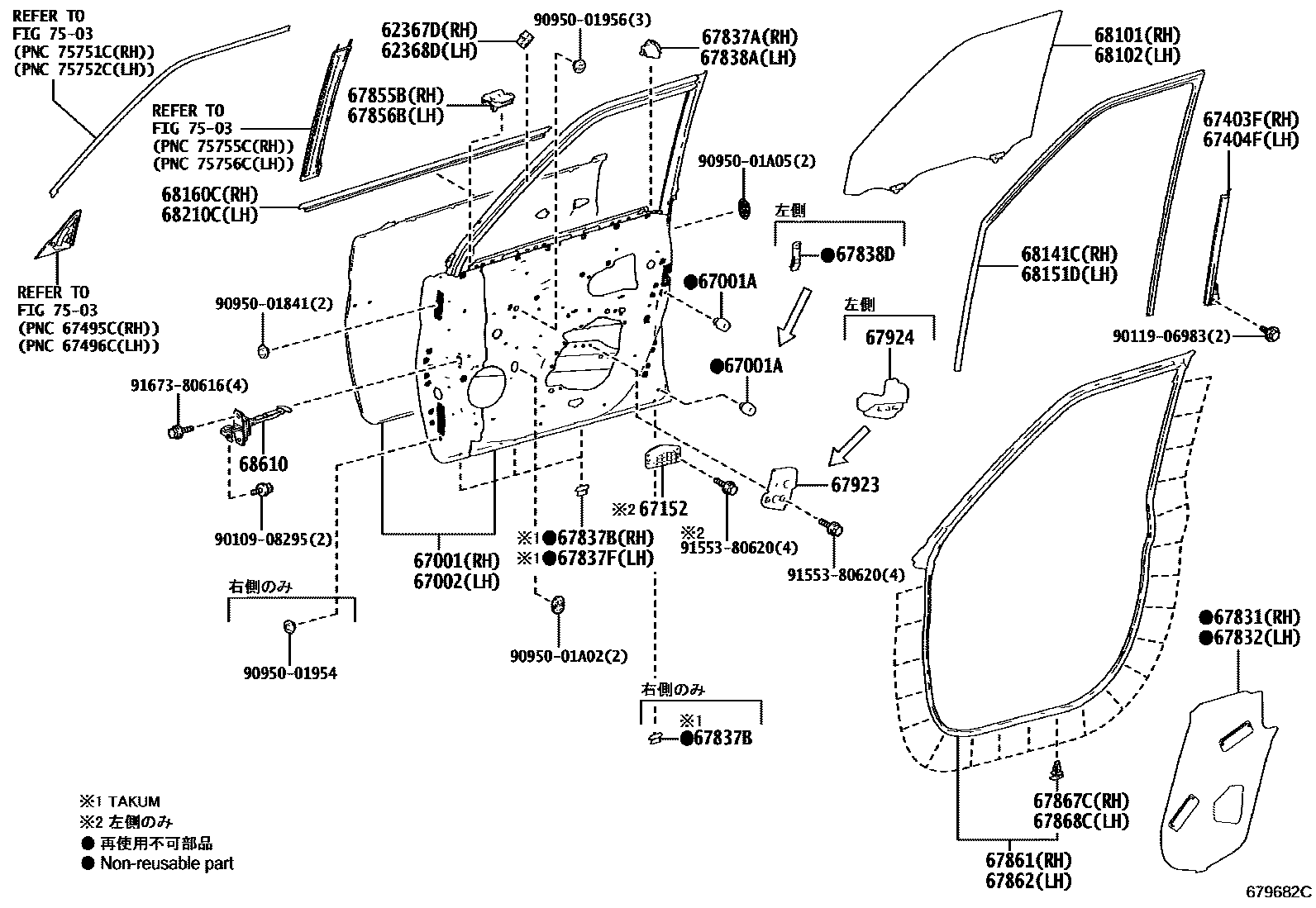

Toyota JPNTAXI — FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������

62367DCLIP, DOOR WINDOW GLASS, RH

main62367-15011iNTP10201710

62368DCLIP, DOOR WINDOW GLASS, LH

main62367-15011iNTP10201710

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-15010iNTP10201710-202105

sub75374-15011

main67001-15011iNTP10202105

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×3iNTP10201710

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-15010iNTP10201710-202105

sub75374-15011

main67002-15011iNTP10202105

67152REINFORCEMENT SUB-ASSY, FRONT DOOR INSIDE PANEL, LH

main67058-15010iNTP10201710

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-15010iNTP10201710

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-15010iNTP10201710

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-15010iNTP10201710

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-15010iNTP10201710

67837ASEAL, FRONT DOOR VENT, RH

main67837-15020iNTP10201710

67837BSEAL, FRONT DOOR DUST PROOF

main67837-47060×4iNTP10..TAKUM202111

main67837-48050×4iNTP10..TAKUM201710-202110

67837FSEAL, DOOR DUST PROOF

main67837-47060×3iNTP10..TAKUM202111

main67837-48050×3iNTP10..TAKUM201710-202110

67838ASEAL, FRONT DOOR VENT, LH

main67838-15020iNTP10201710

67838DSEAL, FRONT DOOR VENT, LH

main67838-15040iNTP10201710

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-15020iNTP10201710

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-15020iNTP10201710

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-15020supersedes 67861-15010iNTP10201710

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-15020supersedes 67862-15010iNTP10201710

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×22iNTP10201710

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×22iNTP10201710

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-15010iNTP10201710

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-15010iNTP10201710

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-15020iNTP10201710-202204

main68110-15030iNTP10202205

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-15020iNTP10201710-202204

main68120-15030iNTP10202205

68141CRUN, FRONT DOOR GLASS, RH

main68141-15050iNTP10201710

68151DRUN, FRONT DOOR GLASS, LH

main68151-15010iNTP10201710

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-15010iNTP10201710

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-15010iNTP10201710

68610CHECK ASSY, FRONT DOOR

main68610-15010×2iNTP10201710

7503

9010908295

main90109-08295

9011906983

main90119-06983

9095001841

main90950-01841

9095001954

main90950-01954

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9155380620

main91553-80620

9167380616

main91673-80616

40 parts on this diagram · 2 diagrams in section
