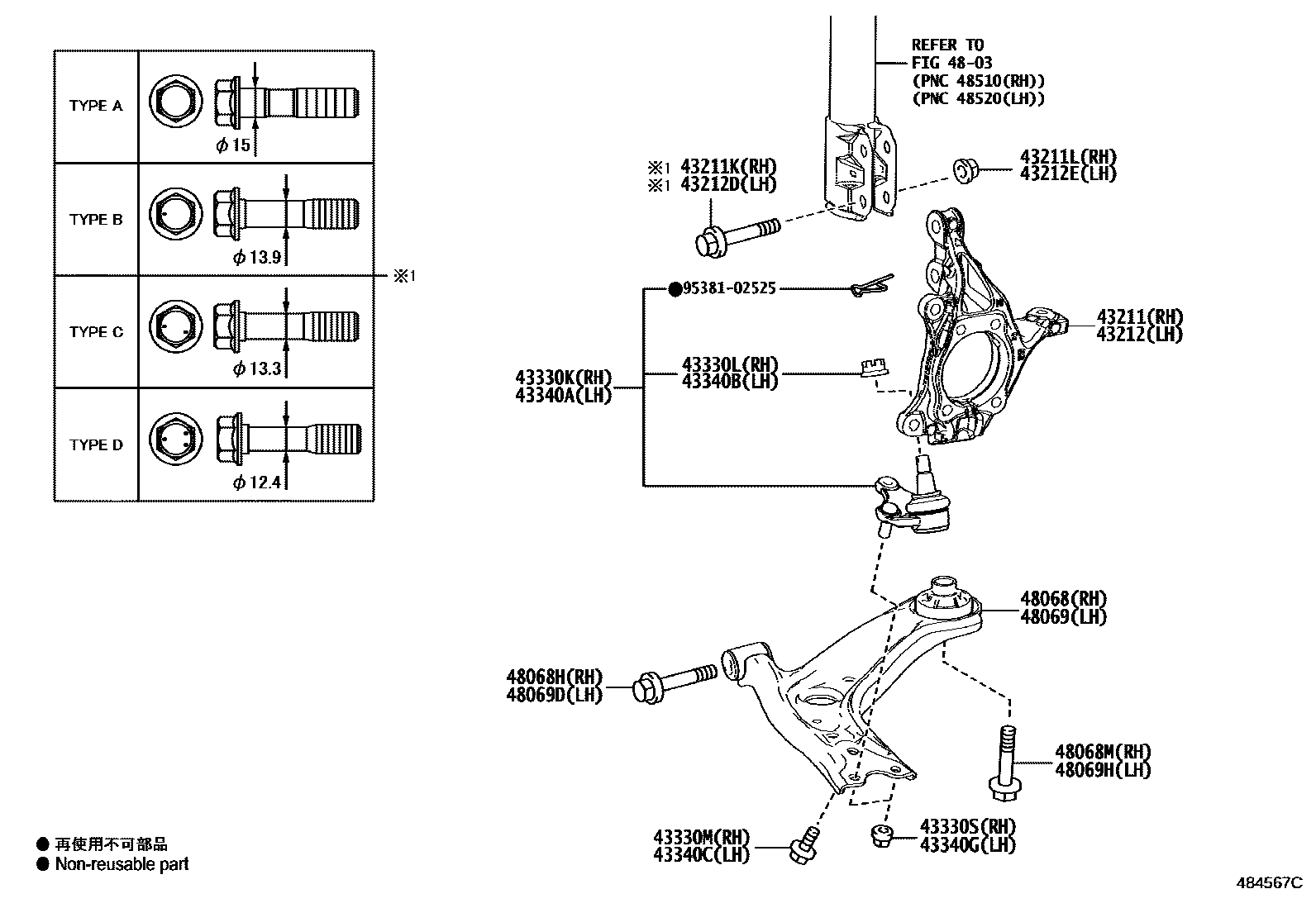

Toyota JPNTAXI — FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-15010iNTP10202101

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001×2iNTP10201710

main90109-15002iNTP10201710

main90109-15003iNTP10201710

main90109-15004iNTP10201710

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004×2iNTP10201710

43212KNUCKLE, STEERING, LH

main43212-15010iNTP10201710-202101

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001×2iNTP10201710

main90109-15002iNTP10201710

main90109-15003iNTP10201710

main90109-15004iNTP10201710

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004×2iNTP10201710

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19245iNTP10201710-201804

main43330-19275iNTP10201805

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iNTP10202101

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12346iNTP10201710

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019×2iNTP10201710

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19245iNTP10201710-201804

main43330-19275iNTP10201805

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iNTP10201710-202101

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12346iNTP10201710

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019×2iNTP10201710

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-15010iNTP10201710

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086iNTP10202403

main90119-14183iNTP10201710-202403

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14178iNTP10201710

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-15010iNTP10201710

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086iNTP10202403

main90119-14183iNTP10201710-202403

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14178iNTP10201710

9538102525

main95381-02525

22 parts on this diagram · 1 diagram in section
