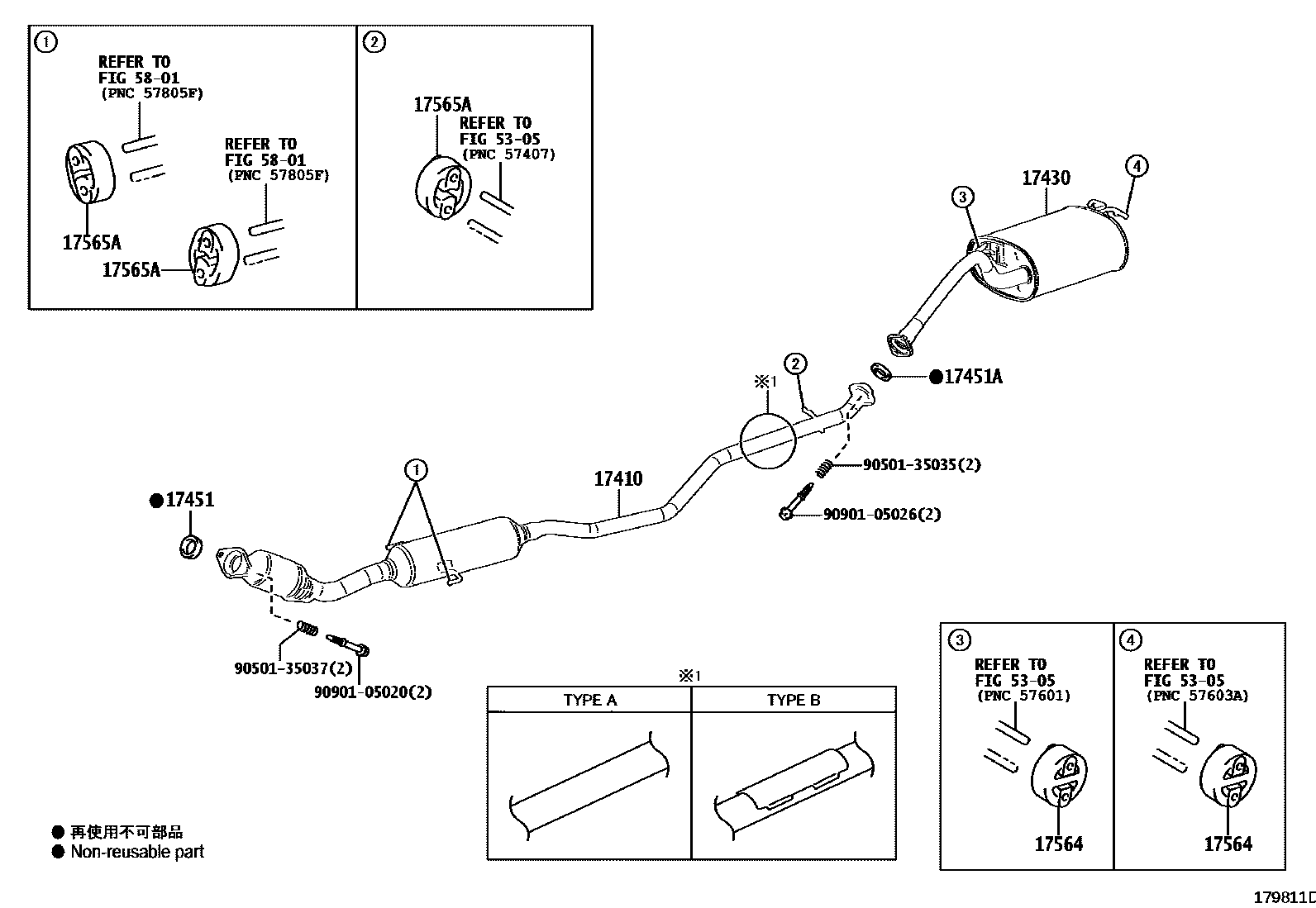

Toyota JPNTAXI — EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-21D70i1NZFXP..NTP10201710-201803

main17410-21D71i1NZFXP..NTP10201803-202101

main17410-21E50i1NZFXP..NTP10202101

17430PIPE ASSY, EXHAUST, TAIL

main17430-21A60i1NZFXP..NTP10201710

17451GASKET, EXHAUST PIPE

main17451-21070i1NZFXP..NTP10201710

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23042i1NZFXP..NTP10201710-202311

main17451-23043i1NZFXP..NTP10202311

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-28010×2i1NZFXP..NTP10201710

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-47010×3i1NZFXP..NTP10201710

5305

5801

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 1 diagram in section
