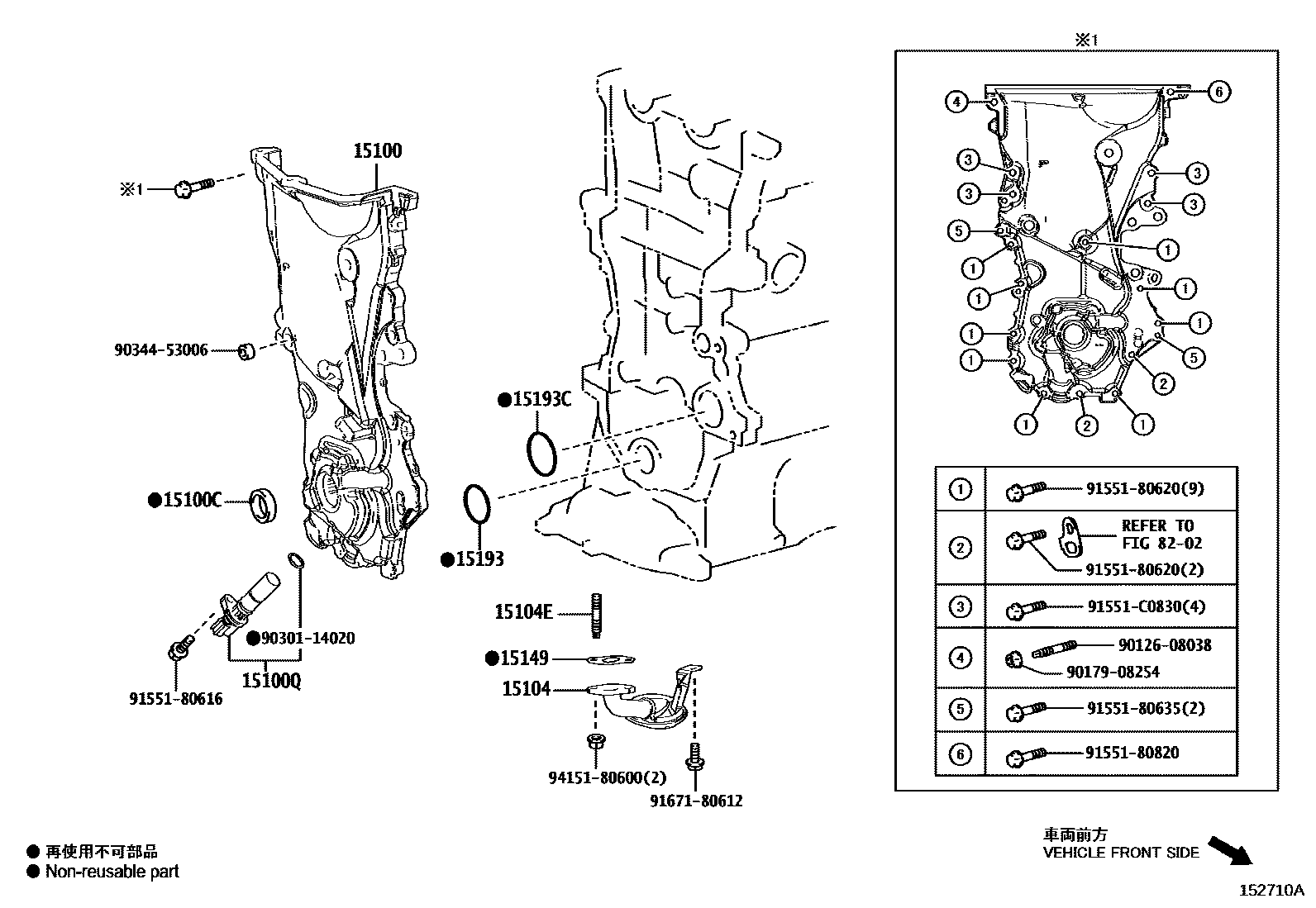

Toyota JPNTAXI — ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-21090i1NZFXP..NTP10201710

15100CSEAL(FOR OIL PUMP)

main90311-25033i1NZFXP..NTP10201710

15100QSENSOR, CRANK POSITION

main90919-05087i1NZFXP..NTP10201710

15104STRAINER SUB-ASSY, OIL

main15104-21022i1NZFXP..NTP10201710

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021×2i1NZFXP..NTP10201710

15149GASKET, OIL STRAINER FLANGE

main16258-21030i1NZFXP..NTP10201710

15193GASKET, OIL PUMP

main12151-21030i1NZFXP..NTP10201710

15193CGASKET, OIL PUMP NO.2

main11497-21030i1NZFXP..NTP10201710

8202

9012608038

main90126-08038

9017908254

main90179-08254

9030114020

main90301-14020

9034453006

main90344-53006

9155180616

main91551-80616

9155180620

main91551-80620

9155180635

main91551-80635

9155180820

main91551-80820

91551C0830

main91551-C0830

9167180612

main91671-80612

9415180600

main94151-80600

20 parts on this diagram · 1 diagram in section
