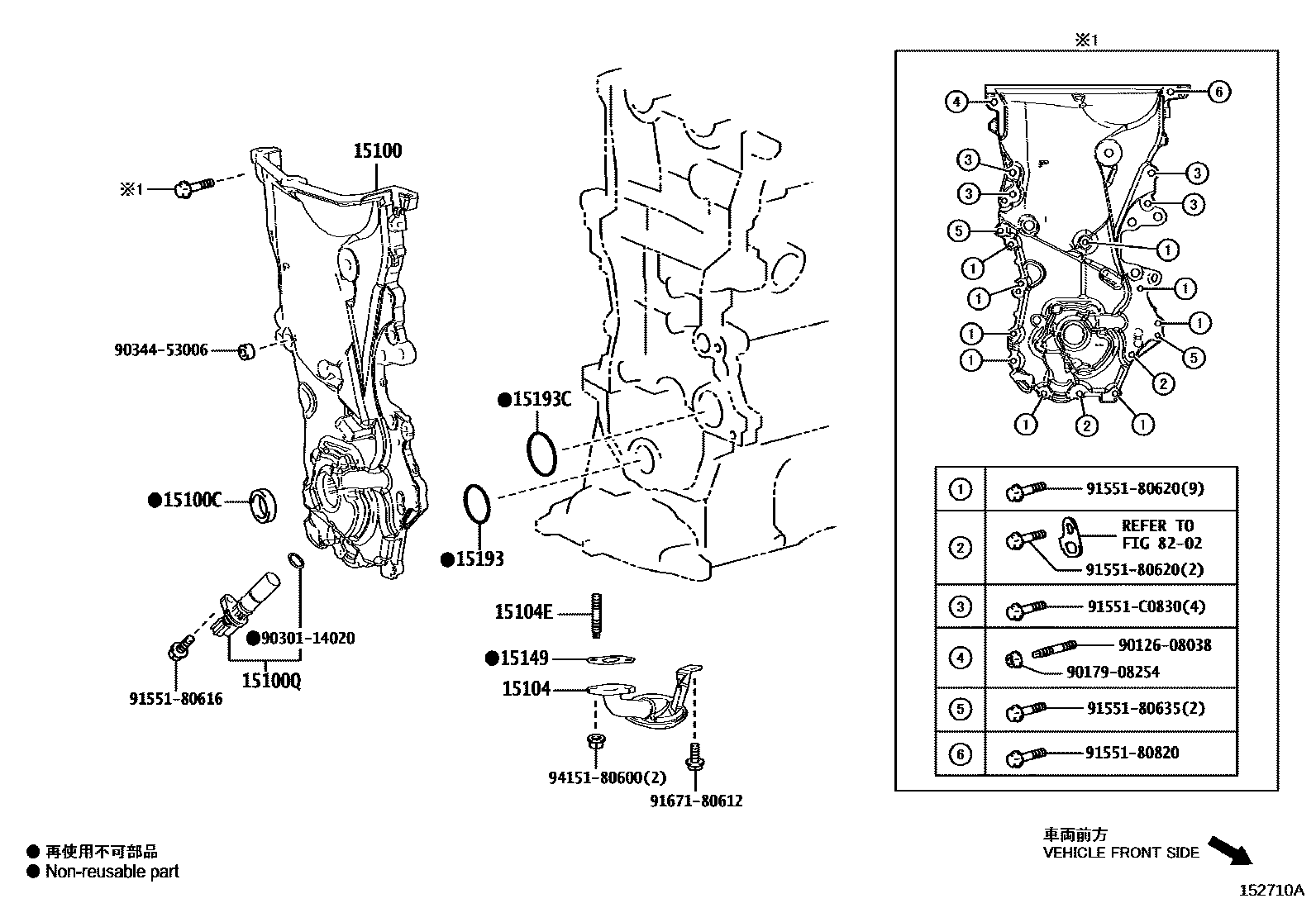

Toyota JPNTAXI — ENGINE OIL PUMP
15100PUMP ASSY, OIL
15100CSEAL(FOR OIL PUMP)
15100QSENSOR, CRANK POSITION
15104STRAINER SUB-ASSY, OIL
15104EBOLT, STUD(FOR OIL STRAINER)
15149GASKET, OIL STRAINER FLANGE
15193GASKET, OIL PUMP
15193CGASKET, OIL PUMP NO.2
8202WIRING & CLAMP
9012608038
main90126-08038
9017908254
main90179-08254
9030114020
main90301-14020
9034453006
main90344-53006
9155180616
main91551-80616
9155180620
main91551-80620
9155180635
main91551-80635
9155180820
main91551-80820
91551C0830
main91551-C0830
9167180612
main91671-80612
9415180600
main94151-80600
20 parts on this diagram · 1 diagram in section
ENGINE OIL PUMP for Toyota JPNTAXI
This section contains 20 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota JPNTAXI. Key components include: PUMP ASSY, OIL, SEAL(FOR OIL PUMP), SENSOR, CRANK POSITION, STRAINER SUB-ASSY, OIL, BOLT, STUD(FOR OIL STRAINER).
