Toyota JPNTAXI — ELECTRONIC FUEL INJECTION SYSTEM

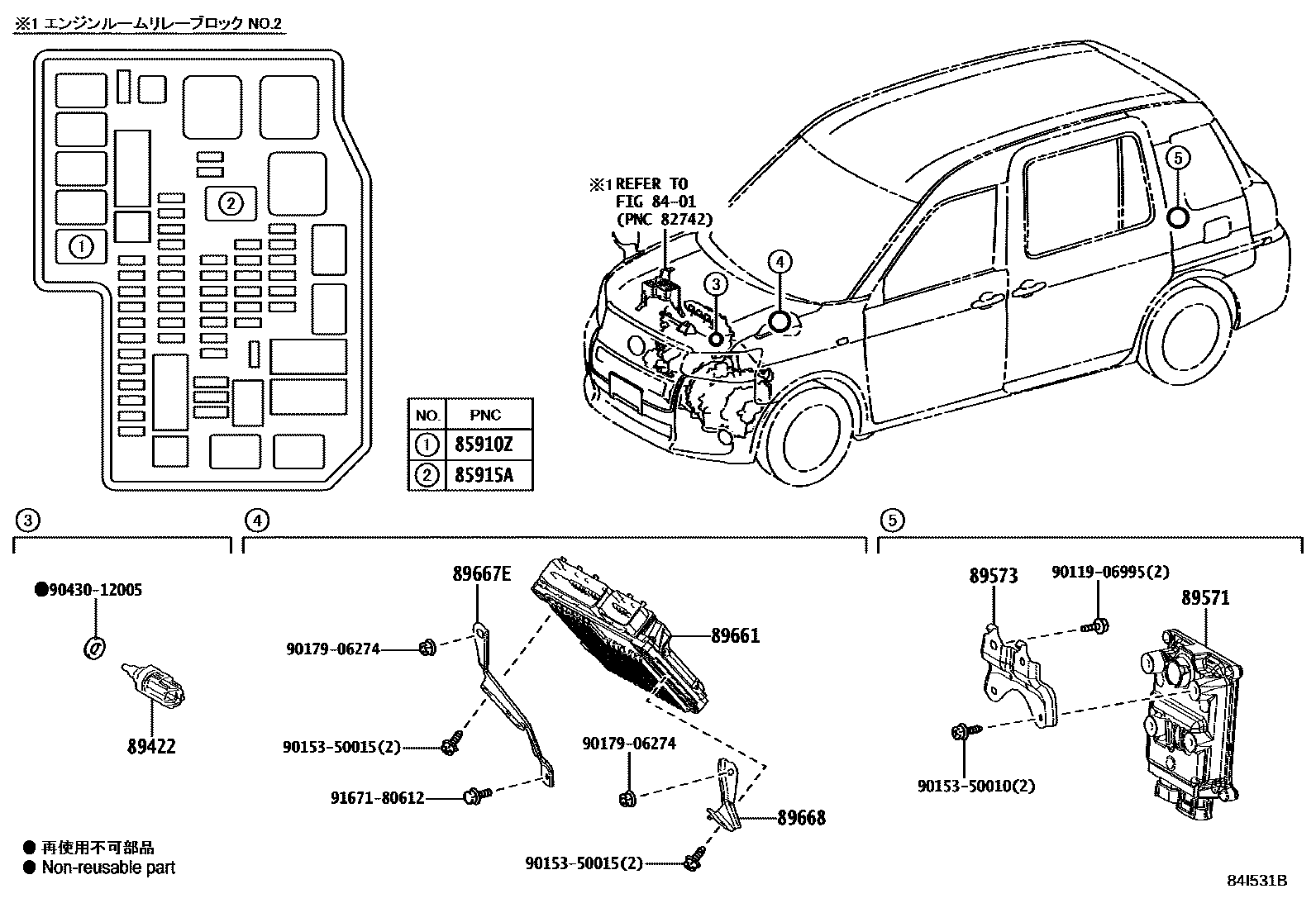

8401

85910ZRELAY, INJECTION (FOR EFI)

main90987-02027iNTP10201710

85915ARELAY, MAIN

main90987-02027iNTP10201710

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNTP10201710

89571COMPUTER, FUEL PUMP CONTROL

main89571-15010iNTP10201710-202401

main89571-15020iNTP10202401

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-15010iNTP10201710-202401

main89573-15030iNTP10202401

89661COMPUTER, ENGINE CONTROL

main89661-15010iNTP10201710-201912

main89661-15020iNTP10202001

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-15010iNTP10201710

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-15010iNTP10201710

9011906995

main90119-06995

9015350010

main90153-50010

9015350015

main90153-50015

9017906274

main90179-06274

9043012005

main90430-12005

9167180612

main91671-80612

15 parts on this diagram · 1 diagram in section
