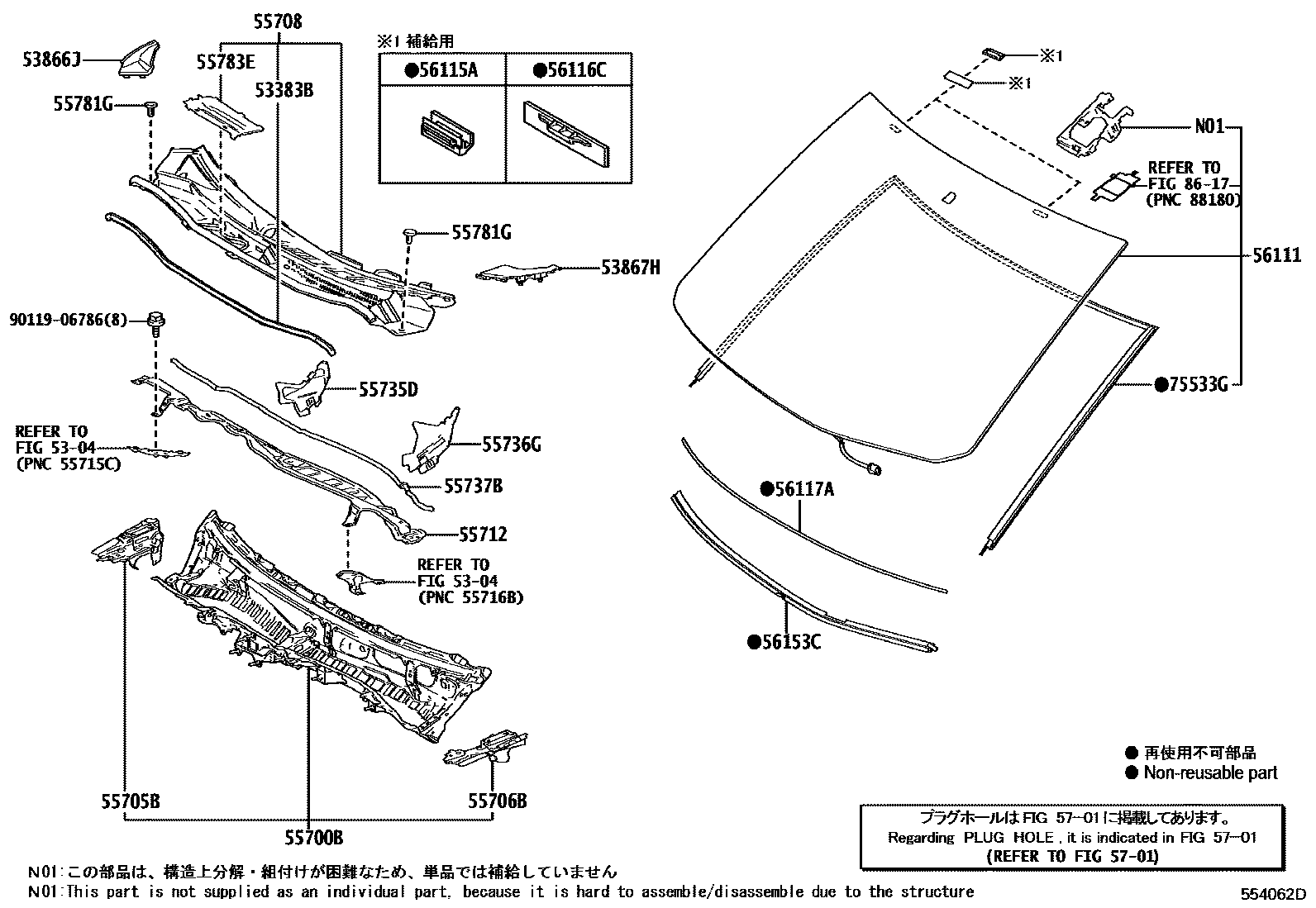

Toyota JPNTAXI — COWL PANEL & WINDSHIELD GLASS

5304

53383BSEAL, HOOD TO COWL TOP

main53383-15010iNTP10201710

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-15010iNTP10201710

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-15010iNTP10201710

55700BCOWL ASSY

main55700-15020iNTP10201710-202403

main55700-15030iNTP10202404

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-15010iNTP10201710

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-15010iNTP10201710

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-15020supersedes 55708-15010iNTP10201710

55712PANEL, COWL TOP OUTSIDE, FRONT

main55712-15020iNTP10201710

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-15010iNTP10201710

55736GSEAL, FRONT AIR SHUTTER, LH

main55736-15010iNTP10201710

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-15010iNTP10201710

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2iNTP10201710

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-15010iNTP10201710

56111GLASS, WINDSHIELD

main56101-15902supersedes 56101-15901iNTP10201710-201903

main56101-15904supersedes 56101-15903iNTP10201903

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNTP10201710

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNTP10201710

56117ADAM, WINDOW GLASS ADHESIVE

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-15020supersedes 56153-15010iNTP10201710

5701

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-15010iNTP10201710

8617

9011906786

main90119-06786

23 parts on this diagram · 1 diagram in section
