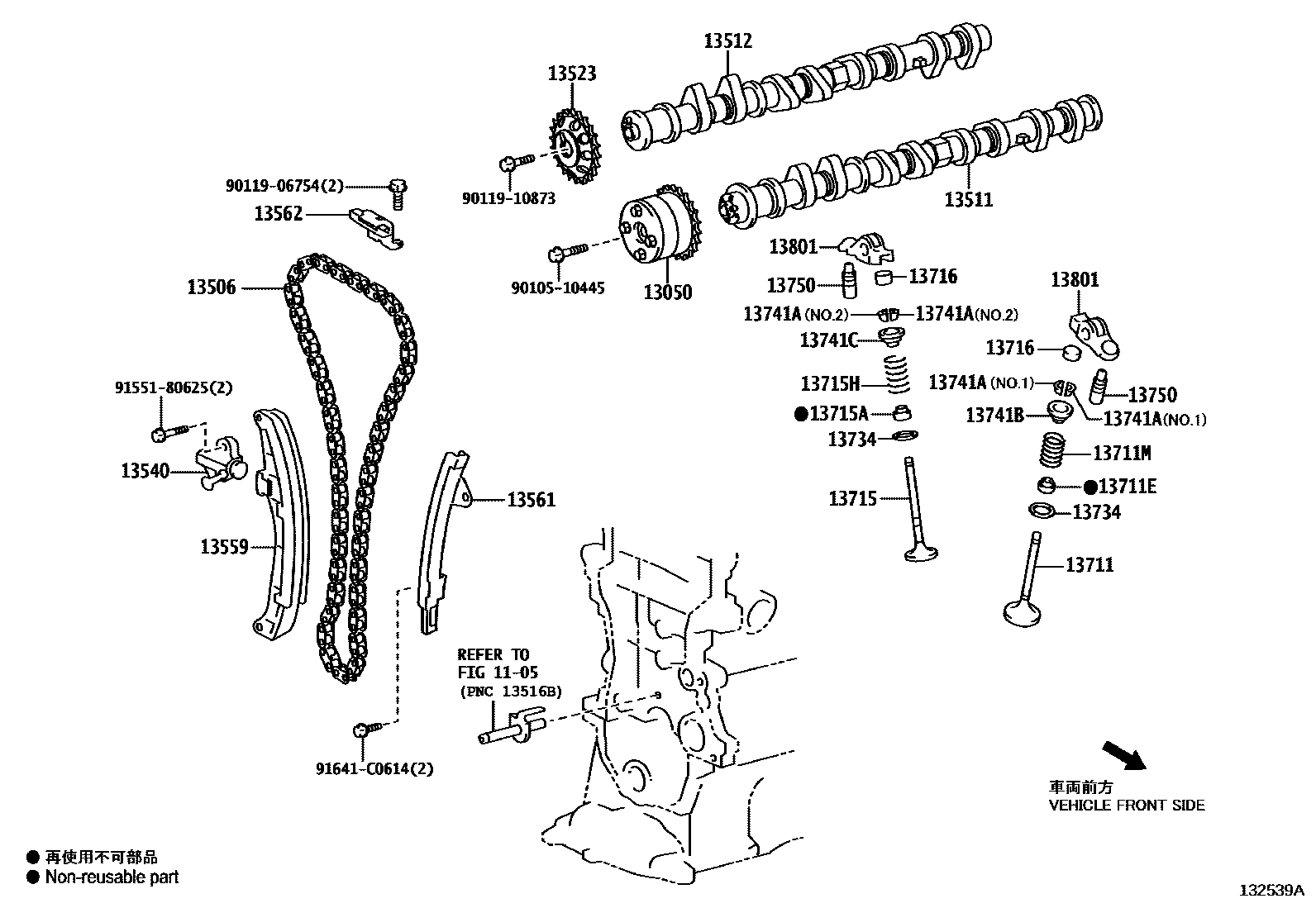

Toyota JPNTAXI — CAMSHAFT & VALVE
1105CYLINDER BLOCK
13050GEAR ASSY, CAMSHAFT TIMING
13506CHAIN SUB-ASSY
13511CAMSHAFT
13512CAMSHAFT, NO.2
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13711VALVE, INTAKE
13711ESEAL, INTAKE VALVE STEM OIL
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13741BRETAINER, INTAKE VALVE SPRING
13741CRETAINER, EXHAUST VALVE SPRING
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9010510445
main90105-10445
9011906754
main90119-06754
9011910873
main90119-10873
9155180625
main91551-80625
91641C0614
main91641-C0614
28 parts on this diagram · 1 diagram in section
CAMSHAFT & VALVE for Toyota JPNTAXI
This section contains 28 genuine Toyota parts for the CAMSHAFT & VALVE system of the Toyota JPNTAXI. Key components include: CYLINDER BLOCK, GEAR ASSY, CAMSHAFT TIMING, CHAIN SUB-ASSY, CAMSHAFT, CAMSHAFT, NO.2.
