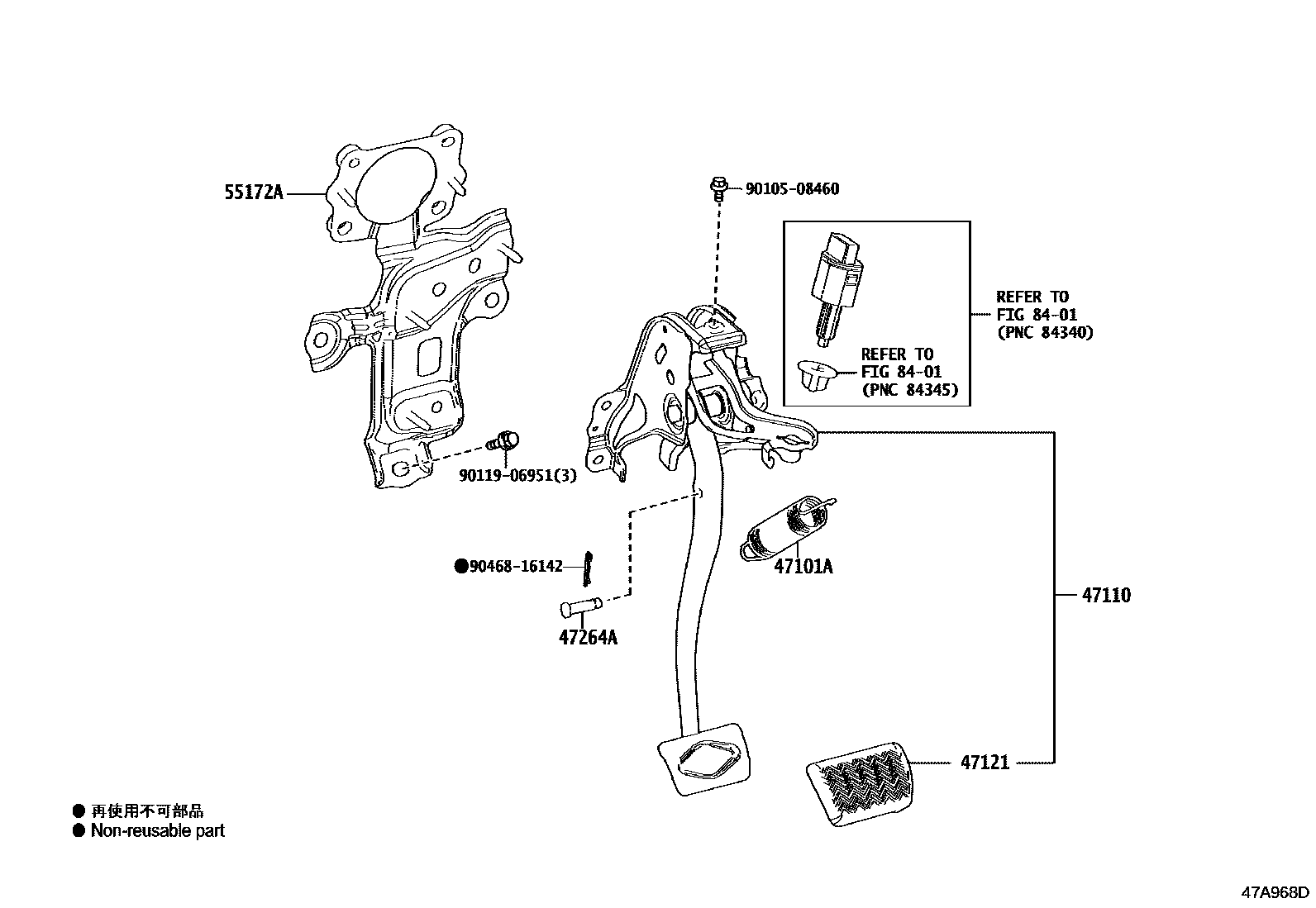

Toyota JPNTAXI — BRAKE PEDAL & BRACKET
47101ASPRING(FOR BRAKE PEDAL RETURN)
47110SUPPORT ASSY, BRAKE PEDAL
47121PAD, BRAKE PEDAL
47264APIN(FOR PUSH ROD)
55172ABASE, BRAKE PEDAL SUPPORT
8401SWITCH & RELAY & COMPUTER
9010508460
main90105-08460
9011906951
main90119-06951
9046816142
main90468-16142
9 parts on this diagram · 1 diagram in section
BRAKE PEDAL & BRACKET for Toyota JPNTAXI
This section contains 9 genuine Toyota parts for the BRAKE PEDAL & BRACKET system of the Toyota JPNTAXI. Key components include: SPRING(FOR BRAKE PEDAL RETURN), SUPPORT ASSY, BRAKE PEDAL, PAD, BRAKE PEDAL, PIN(FOR PUSH ROD), BASE, BRAKE PEDAL SUPPORT.
