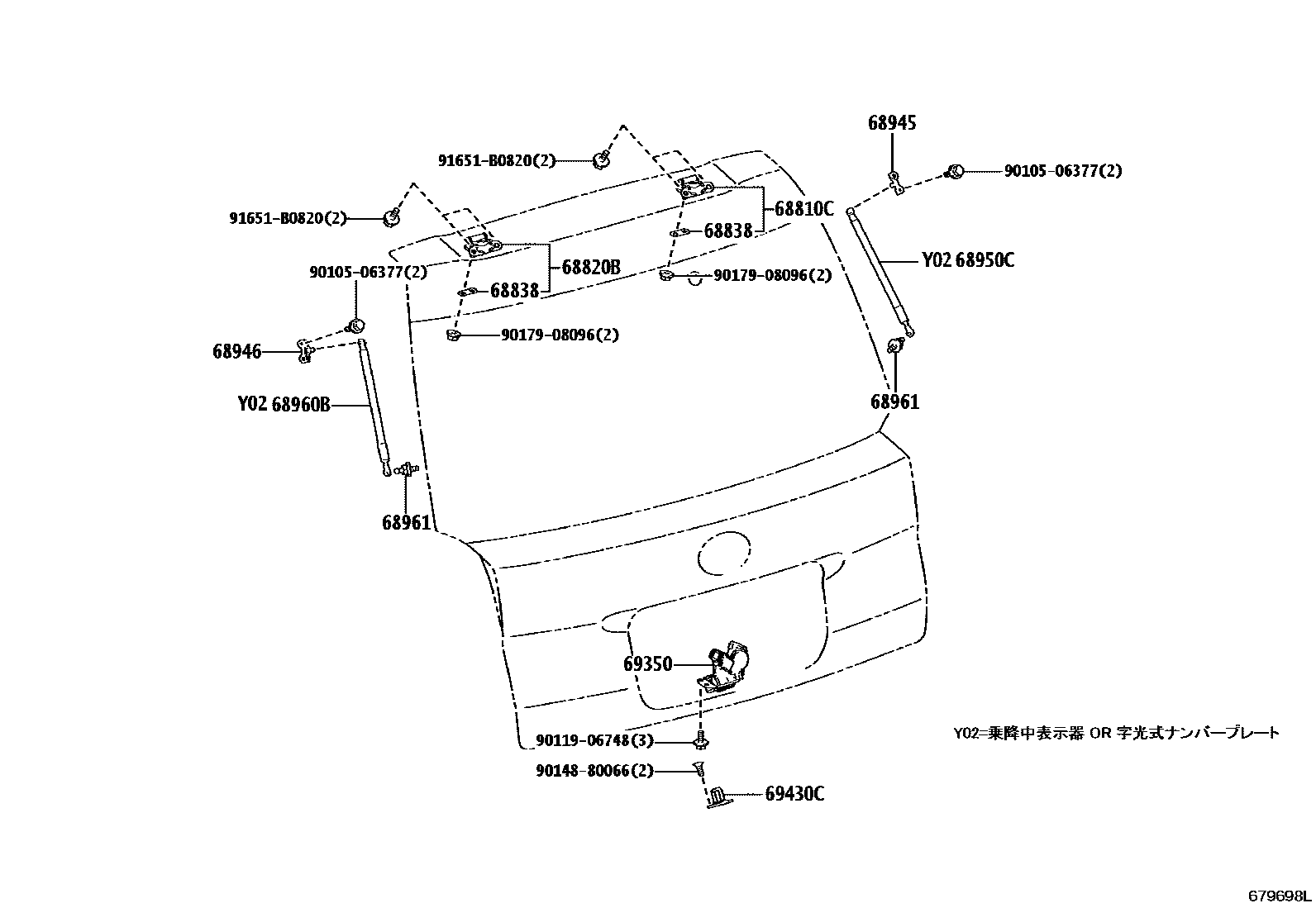

Toyota JPNTAXI — BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820BHINGE ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68960BSTAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506377
main90105-06377
9011906748
main90119-06748
9014880066
main90148-80066
9017908096
main90179-08096
91651B0820
main91651-B0820
15 parts on this diagram · 1 diagram in section
