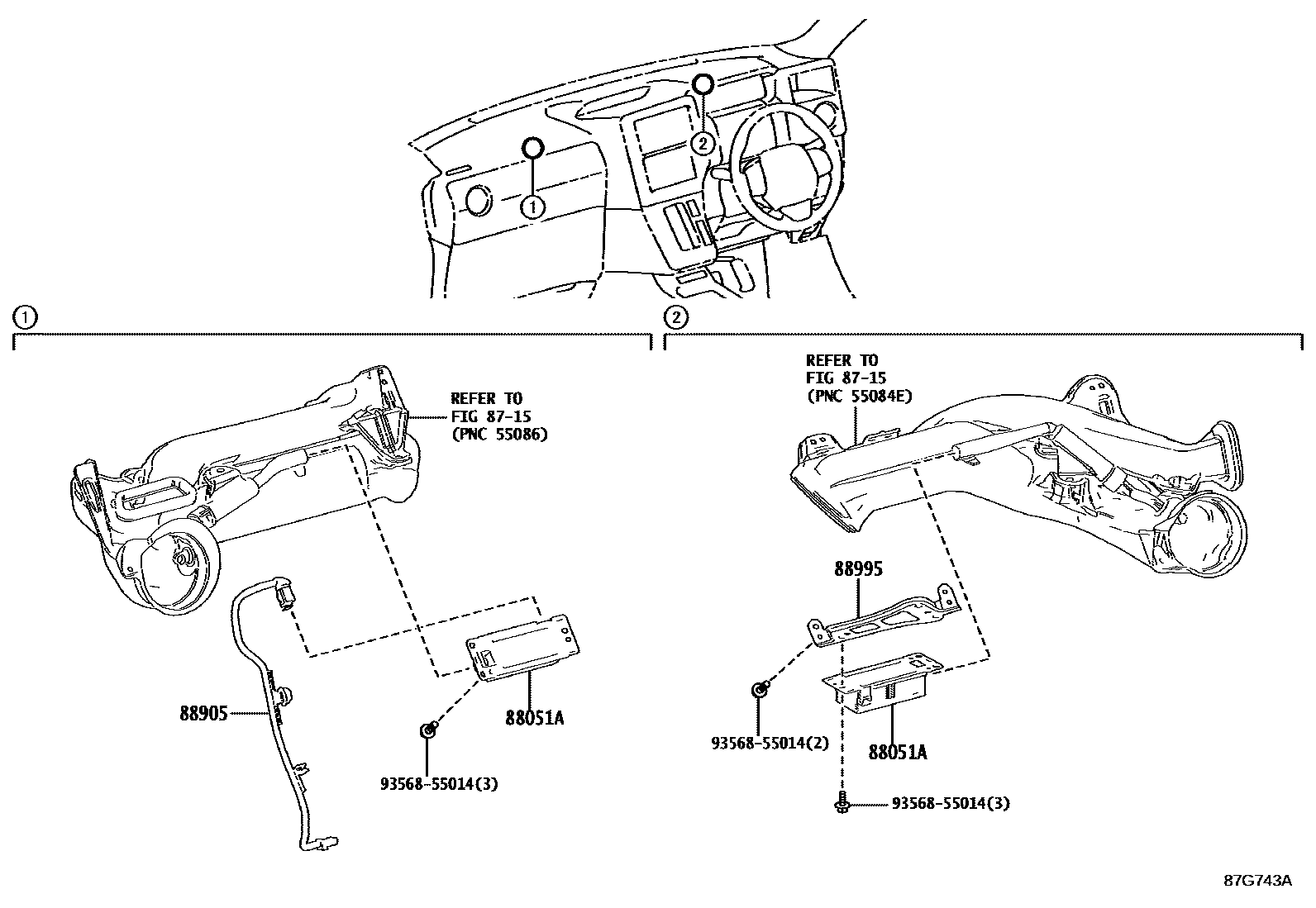

Toyota JPNTAXI — AIR PURIFIER OR ION GENERATOR

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88051AGENERATOR SUB-ASSY,ION

main88051-28060×2i201710-202105

main88051-48010×2i202105

88905WIRE SUB-ASSY, AIR PURIFIER, NO.1

main82212-15010i201710-202105

main82212-15011i202105

88995BRACKET,ION GENERATOR, NO.1

main88995-15010i201710

9356855014

main93568-55014

5 parts on this diagram · 1 diagram in section

AIR PURIFIER OR ION GENERATOR for Toyota JPNTAXI

This section contains 5 genuine Toyota parts for the AIR PURIFIER OR ION GENERATOR system of the Toyota JPNTAXI. Key components include: HEATING & AIR CONDITIONING - CONTROL & AIR DUCT, GENERATOR SUB-ASSY,ION, WIRE SUB-ASSY, AIR PURIFIER, NO.1, BRACKET,ION GENERATOR, NO.1.
