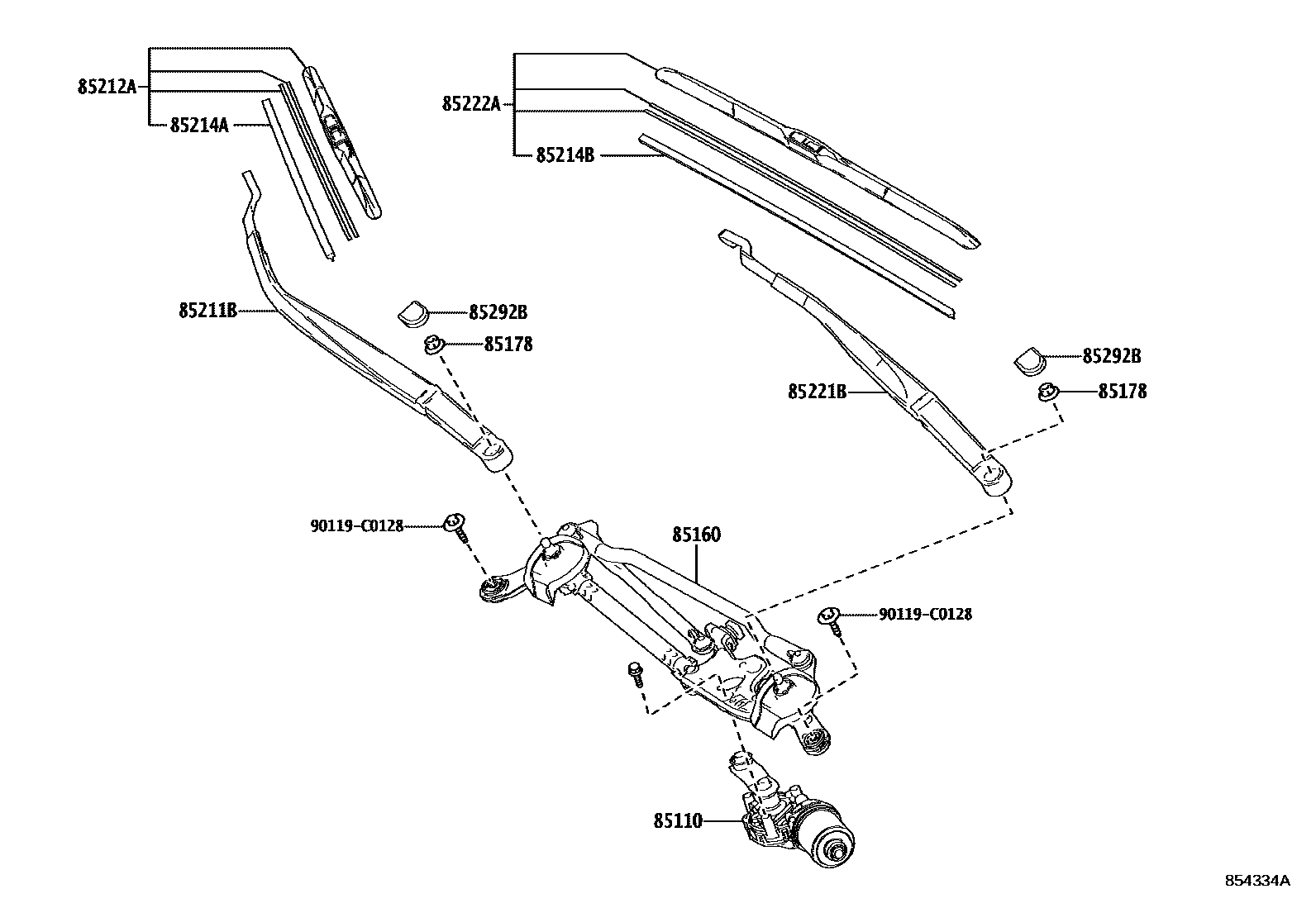

Toyota IZOA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-F4070i202005-202008

main85110-F4090i202008

85160LINK ASSY, WINDSHIELD WIPER

main85150-F4060i202005

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-C0012×2i202005

85211BARM, FRONT WIPER, RH

main85211-F4061i202005

85212ABLADE, FR WIPER, RH

main85212-F4051i202005

85214ARUBBER, WIPER, RH

main85214-0R060i202005

85214BRUBBER, WIPER, LH

main85214-02340i202005

85221BARM, FRONT WIPER, LH

main85221-F4061i202005

85222ABLADE, FR WIPER, LH

main85222-02320i202005

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D070×2i202005

90119C0128

main90119-C0128

11 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota IZOA

This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota IZOA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
