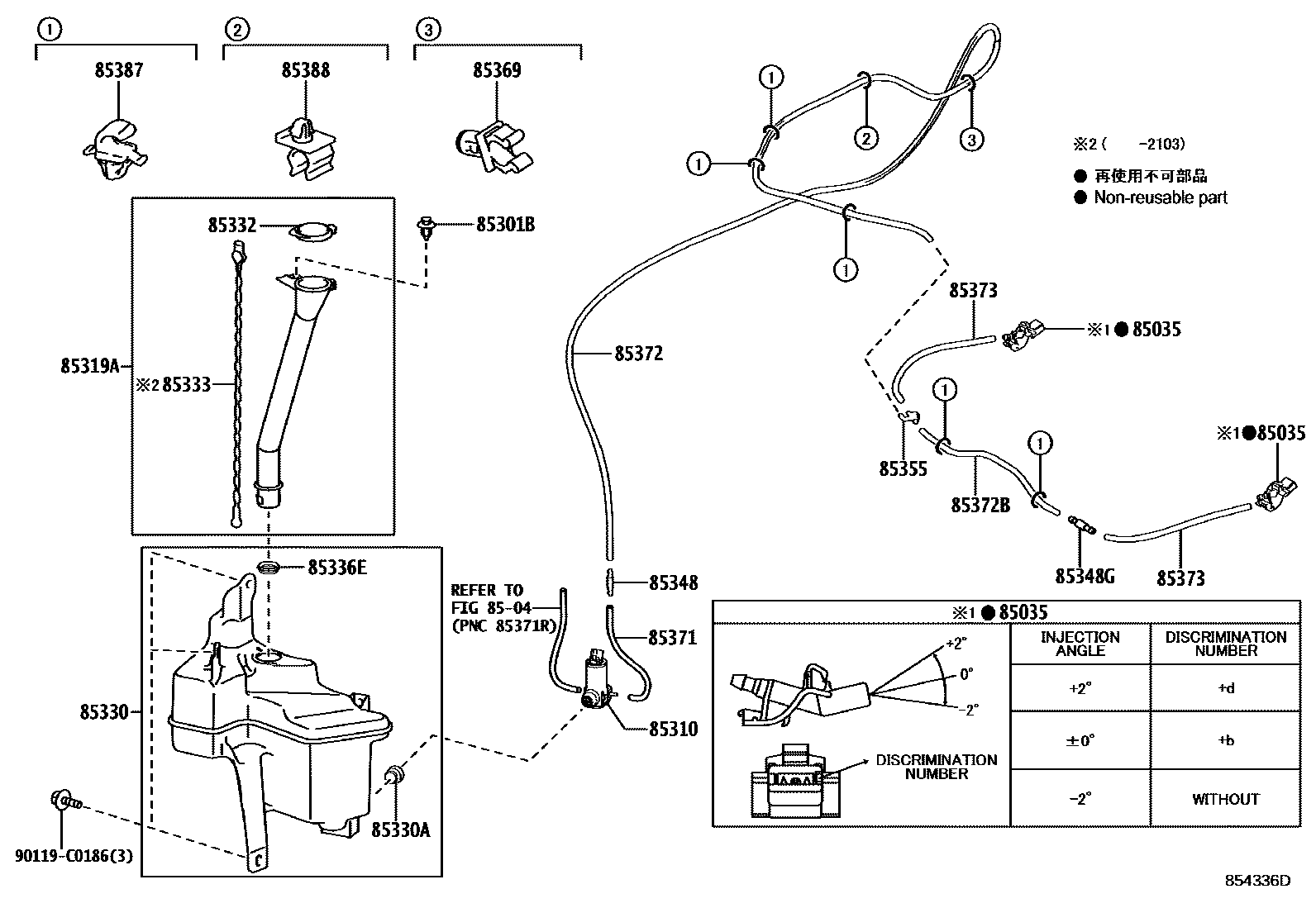

Toyota IZOA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i202005

ANGLE 0

main85381-30230×2i202005

ANGLE -2

main85381-30240×2i202005

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85301BCLIP, WASHER

main90467-07214i202005

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47090i202005-202012

main85330-47091i202101-202102

85319AHOSE, INLET

main85319-F4110i202005-202103

main85319-F4111i202103

85330JAR ASSY, WINDSHIELD WASHER

main85315-F4110i202005

85330ABUSH, WINDSHIELD WASHER JAR

main90068-32006i202005

85332CAP, WINDSHIELD WASHER JAR

main85316-0D200i202005

85333FILTER, WINDSHIELD WASHER JAR

main85318-F4110i202005-202103

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i202005

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0D030i202005

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-0D030i202005

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i202005

85369CLAMP

main85371-52110i202005

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33133i202005

L=240

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33319i202005

L=2118

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33317i202005

L=372

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33320×2i202005

L=210

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-0A020×5i202012

(L)

main85371-12040×5i202005-202012

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85371-0A010i202012

(L)

main85371-32020i202005-202012

90119C0186

main90119-C0186

21 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota IZOA

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota IZOA. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET.
