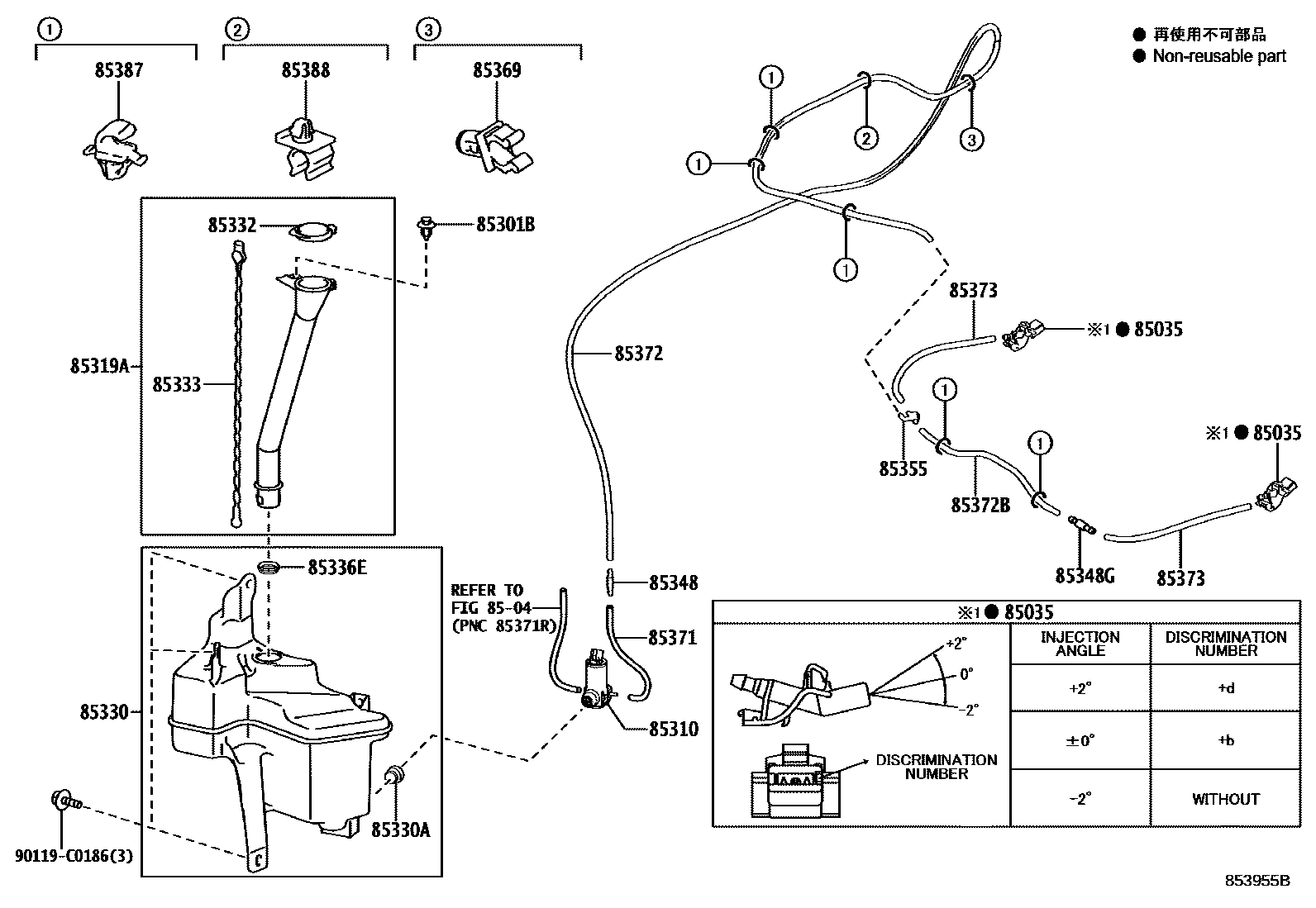

Toyota IZOA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i201807-202105

ANGLE 0

main85381-30230×2i202105

ANGLE -2

main85381-30240×2i202105

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85301BCLIP, WASHER

main90467-07214i201807-202105

main90467-C0041i202211

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47090i201807-202012

main85330-47091i202105

85319AHOSE, INLET

main85319-F4110i201807-202105

main85319-F4111i202105

85330JAR ASSY, WINDSHIELD WASHER

main85315-F4110i201807-202105

85330ABUSH, WINDSHIELD WASHER JAR

main90068-32006i201807-202105

85332CAP, WINDSHIELD WASHER JAR

main85316-0D200i201807-202105

85333FILTER, WINDSHIELD WASHER JAR

main85318-F4110i201807-202105

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i201807-202105

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0D030i202105

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-0D030i201807-202105

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201807-202105

85369CLAMP

main85371-52110i201807-202105

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33133i201807-202105

L=240

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33319i201807-202105

L=2118

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33317i201807-202105

L=372

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33320×2i201807-202105

L=210

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-0A020×5i202105

(L)

main85371-12040×5i201807-202011

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85371-0A010i202011-202105

(L)

main85371-32020i202105

(J)

90119C0186

main90119-C0186

21 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota IZOA

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota IZOA. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET.
