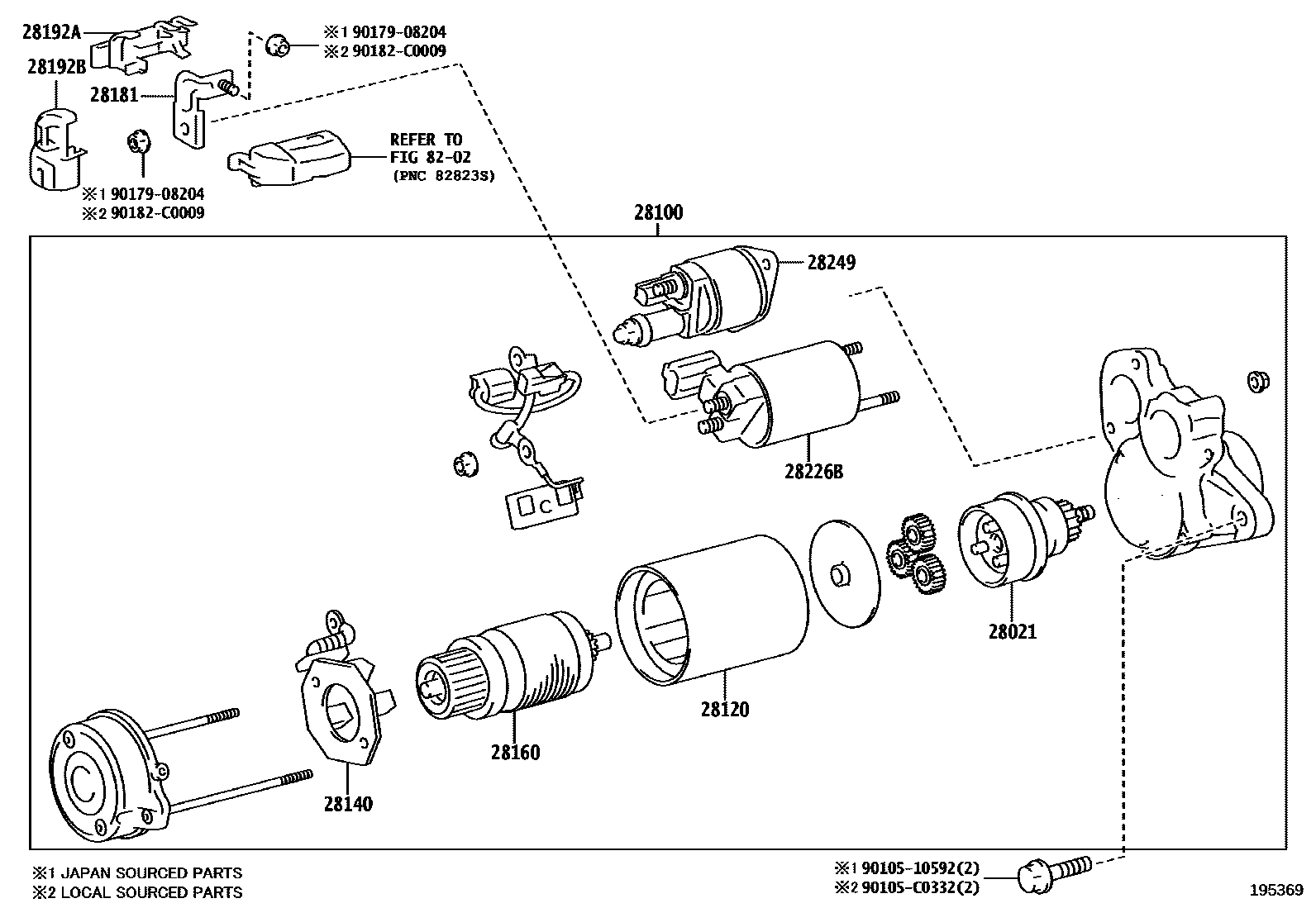

Toyota IZOA — STARTER
28021CLUTCH SUB-ASSY, STARTER CENTER BEARING
28100STARTER ASSY
12V 1.7KW
12V 1.7KW
12V 1.7KW
28120YOKE ASSY, STARTER
28140HOLDER ASSY, STARTER BRUSH
28160ARMATURE ASSY, STARTER
28181TERMINAL, STARTER
28192ACOVER, STARTER, NO.1
28192BCOVER, STARTER, NO.2
28226BSTARTER KIT, REPAIR SERVICE
28249RELAY, STARTER INRUSH CURRENT REDUCTION
LOCAL SOURCED PARTS
8202WIRING & CLAMP
9010510592
main90105-10592
90105C0332
main90105-C0332
9017908204
main90179-08204
90182C0009
main90182-C0009
15 parts on this diagram · 2 diagrams in section
STARTER for Toyota IZOA
This section contains 16 genuine Toyota parts for the STARTER system of the Toyota IZOA. Key components include: CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, YOKE ASSY, STARTER, HOLDER ASSY, STARTER BRUSH, SWITCH ASSY, MAGNET STARTER.
