Toyota IZOA — PRE-COLLISION SYSTEM

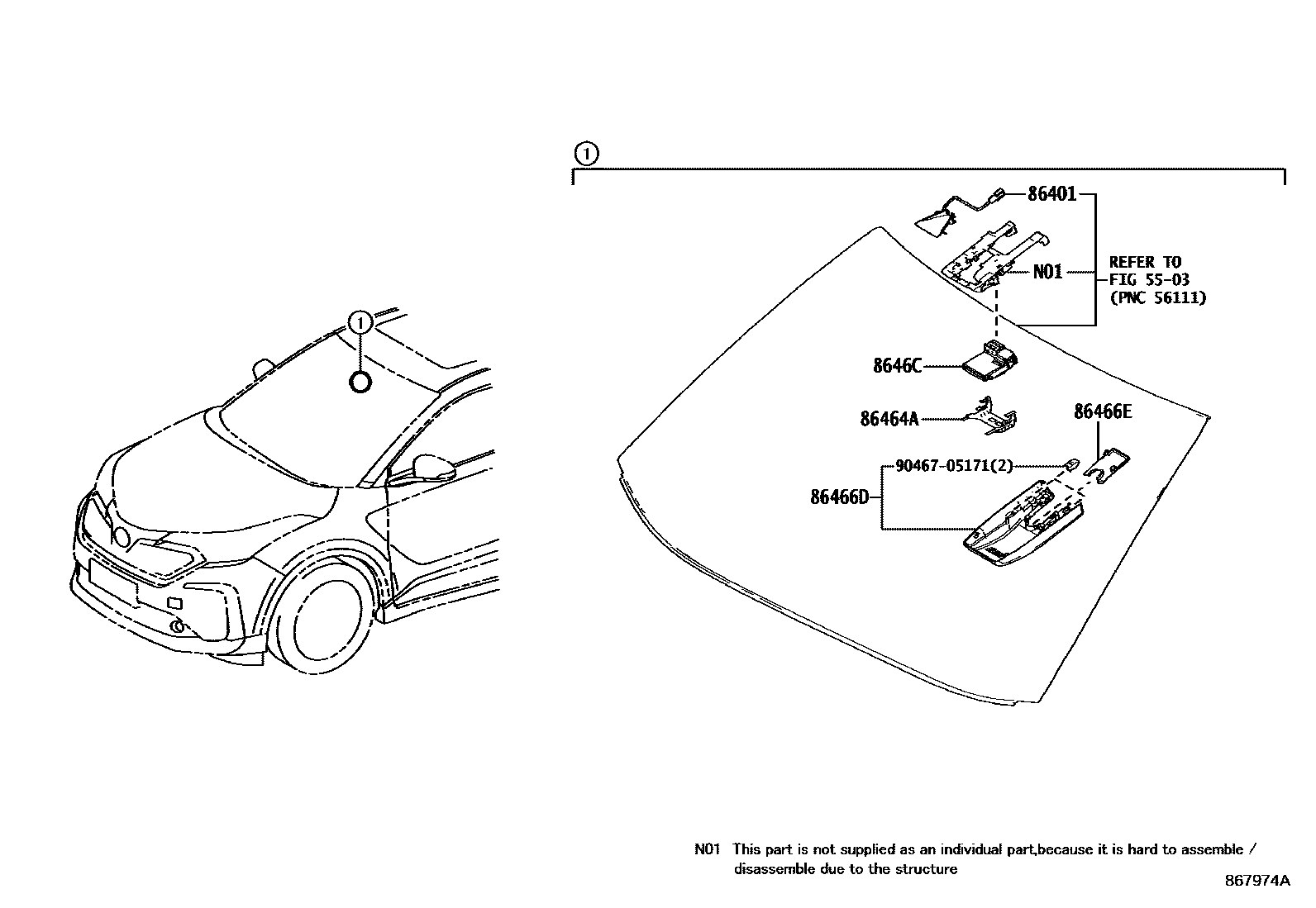

Parts diagram

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-10010i202005-202104

main86401-F4040i202104

86464ALATCH, FORWARD RECOGNITION

main86464-F4040i202104

main86464-K0010i202005-202103

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-10030i202005-202103

main86466-F4080i202104

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-10040i202005-202103

main86467-F4020i202104

8646CCAMERA, FORWARD RECOGNITION

main8646C-F4060i202005-202011

main8646C-F4090i202012

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
