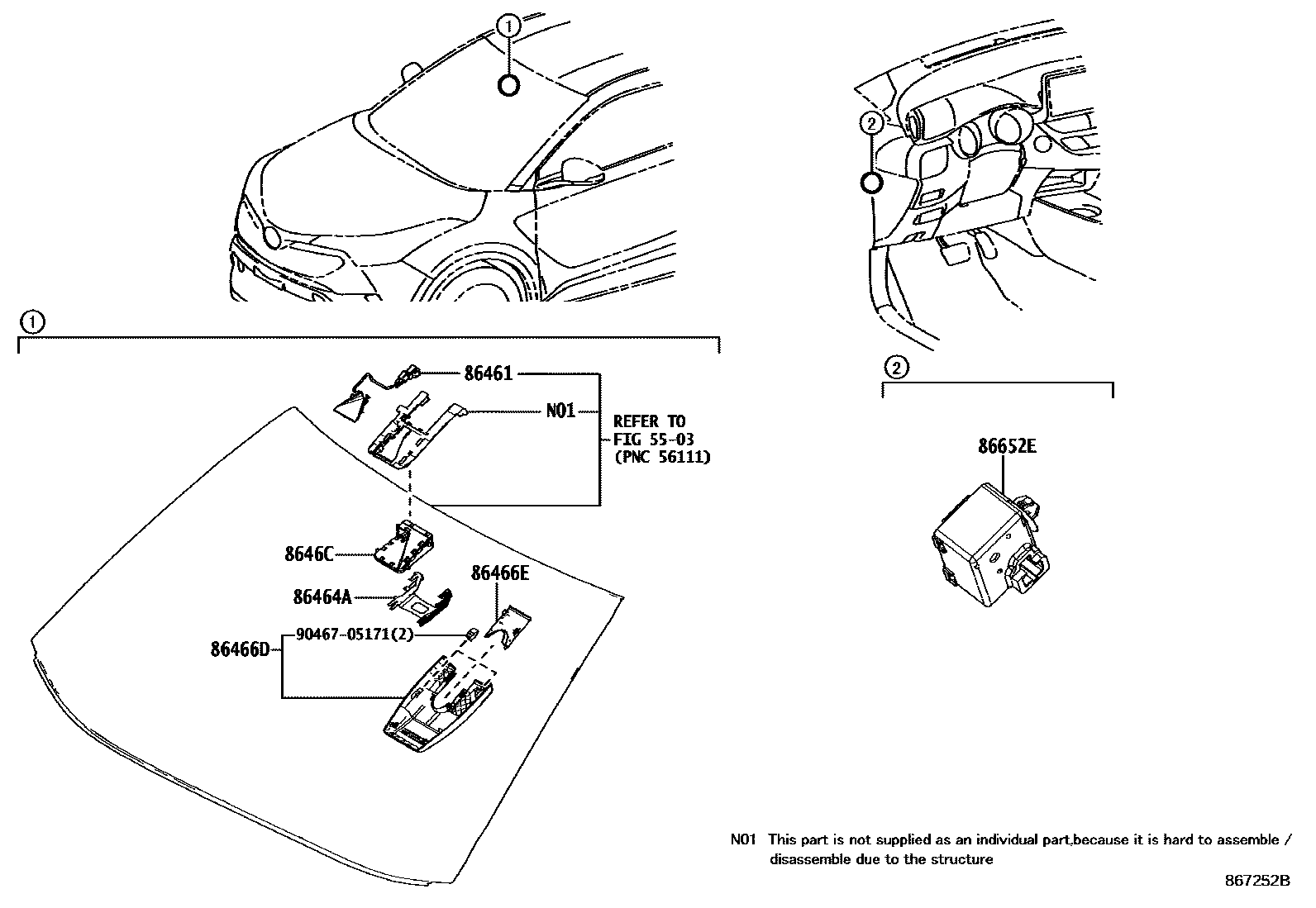

Toyota IZOA — PRE-COLLISION SYSTEM

0001 1 0002 1

5503

86461HOOD, FORWARD RECOGNITION

main86401-F4040iMAXA10,MAXH10202105

main86461-10020iMAXA10201807-202105

86464ALATCH, FORWARD RECOGNITION

main86464-71010iMAXA10201807-202105

main86464-F4040iMAXA10,MAXH10202105

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-10010iMAXA10201807-202105

main86466-F4080iMAXA10,MAXH10202105

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-10020iMAXA10201807-202105

main86467-F4020iMAXA10,MAXH10202105

8646CCAMERA, FORWARD RECOGNITION

main8646C-F4030iMAXA10201807-202105

main8646C-F4100iMAXA10,MAXH10202105

86652EBUZZER, PRE-COLLISION CITY

main86652-50010iMAXA10201807-202105

9046705171

main90467-05171

8 parts on this diagram · 2 diagrams in section
