Toyota IZOA — HEATING & AIR CONDITIONING - COMPRESSOR

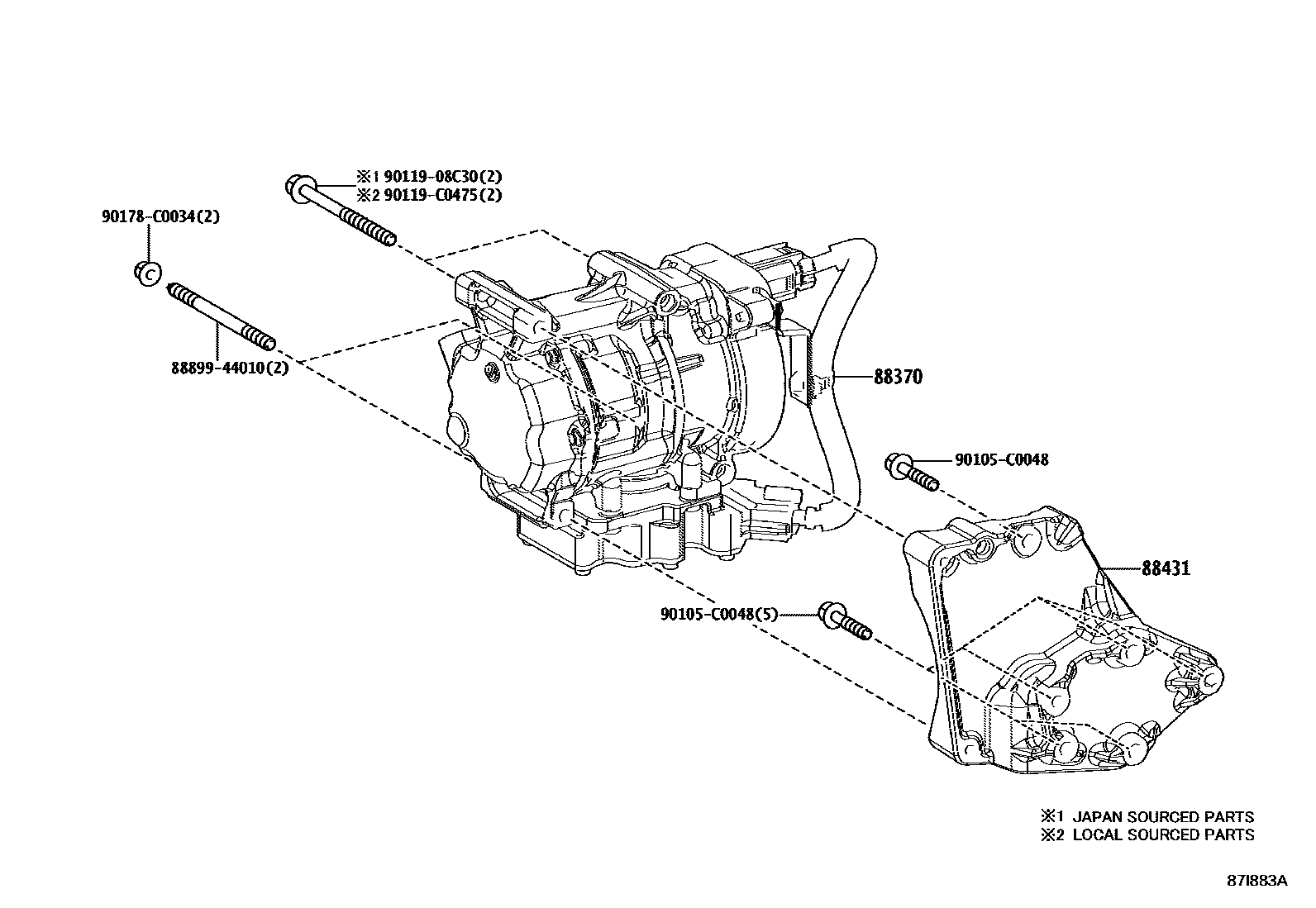

Parts diagram

88370COMPRESSOR ASSY, W/MOTOR

main88370-10010i202005-202111

main88370-10011i202112

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-F4010i202005

8889944010COVER, EVAPORATOR

main88899-44010

90105C0048

main90105-C0048

9011908C30

main90119-08C30

90119C0475

main90119-C0475

90178C0034

main90178-C0034

7 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota IZOA

This section contains 7 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota IZOA. Key components include: COMPRESSOR ASSY, W/MOTOR, BRACKET, COMPRESSOR MOUNTING, NO.1, COVER, EVAPORATOR.
