Toyota IZOA — FUEL INJECTION SYSTEM

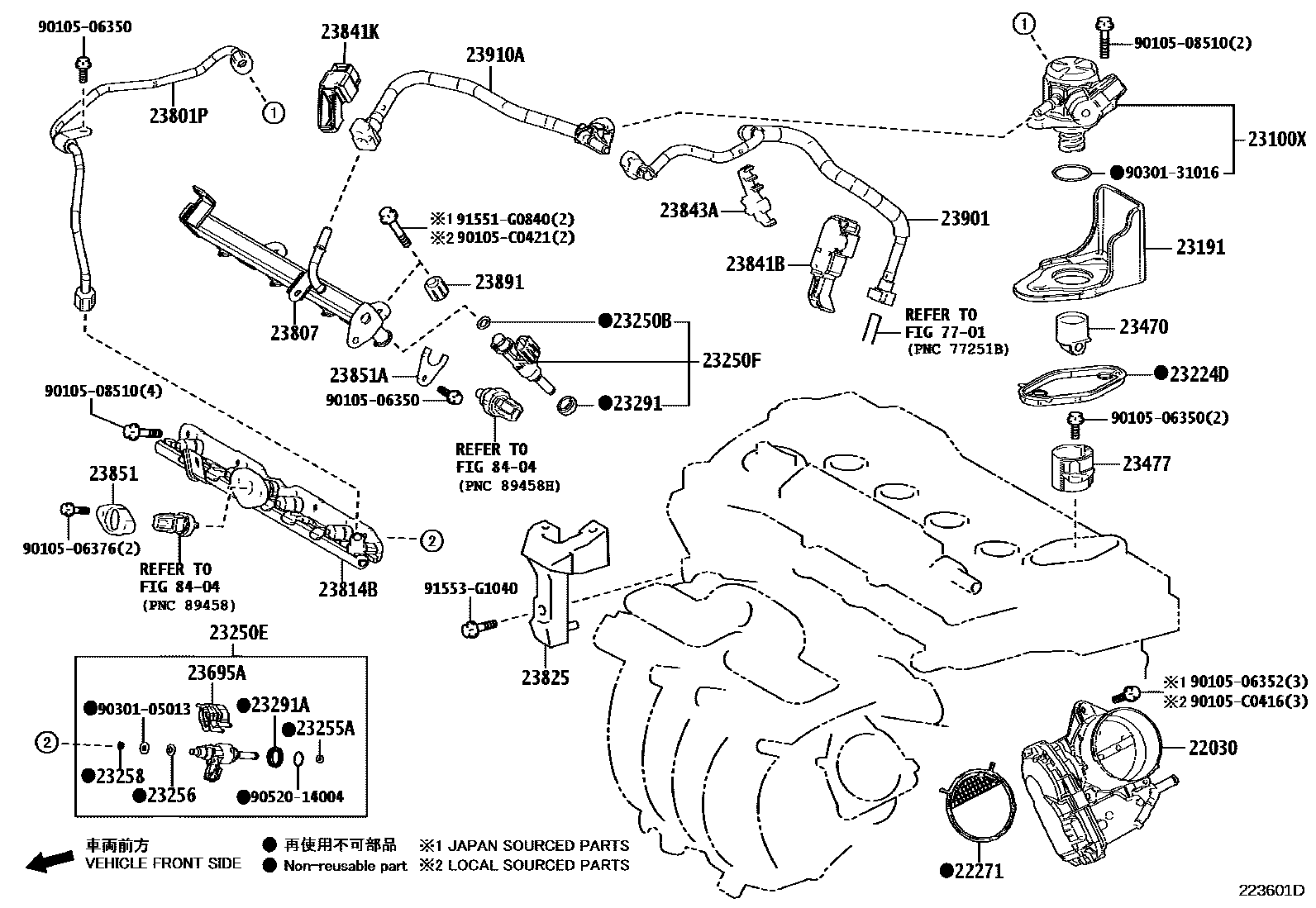

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-24010i201807-202105

*632

main22030-F2030i202105

*633

22271GASKET, THROTTLE BODY

main22271-24010i202105

*633

main22271-24020i202105

(J),*633

main22271-F2070i202307

(L),*633

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-25040i202105-202304

*632

main23101-F2020i202102-202105

*633

23191FLANGE, FUEL PUMP

main23191-25050i201807-202105

*632

main23214-F2040i202102-202105

*633

23224DGASKET, FUEL PUMP SPACER

main23224-25010i202105-202109

*633

main23224-25011i202110

*633

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i201807-202105

(J),*632

main90301-C0072×4i202105

(L),*633

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-24010-01×4i202105-202304

MARK 1,*632:REFER R/M

main23209-24010-02×4i201807-202105

MARK 2,*632:REFER R/M

main23209-24010-03×4i202105-202304

MARK 3,*632:REFER R/M

main23209-24010-04×4i202105-202304

MARK 4,*632:REFER R/M

main23209-24010-05×4i201807-202105

MARK 5,*632:REFER R/M

main23209-24010-06×4i201807-202105

MARK 6,*632:REFER R/M

main23209-24010-07×4i202105-202304

MARK 7,*632:REFER R/M

main23209-24010-08×4i201807-202105

MARK 8,*632:REFER R/M

main23209-24010-09×4i202105-202304

MARK 9,*632:REFER R/M

main23209-F2030-01×4i202102-202105

MARK 1,*633:REFER R/M

main23209-F2030-02×4i202102-202105

MARK 2,*633:REFER R/M

main23209-F2030-03×4i202105

MARK 3,*633:REFER R/M

main23209-F2030-04×4i202102-202105

MARK 4,*633:REFER R/M

main23209-F2030-05×4i202105

MARK 5,*633:REFER R/M

main23209-F2030-06×4i202102-202105

MARK 6,*633:REFER R/M

main23209-F2030-07×4i202102-202105

MARK 7,*633:REFER R/M

main23209-F2030-08×4i202102-202105

MARK 8,*633:REFER R/M

main23209-F2030-09×4i202102-202105

MARK 9,*633:REFER R/M

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29115×4i201807-201907

*632

main23209-29165×4i202105-202304

*632

main23209-29185×4i202105-202304

*632

main23209-F9100×4i202110

(L),*633

23255ASEAL, FUEL INJECTOR

main23255-25010×4i201807-202105

*632

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4i201807-202105

*632

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-31030×4i202102-202105

*633

main23258-47010×4i201807-202105

*632

23291INSULATOR, INJECTOR VIBRATION

main23291-0V010×4i202105

*633

main23291-28020×4i202105-202304

*632

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×4i202102-202105

*633

23470LIFTER ASSY, FUEL PUMP

main23470-0Y010i202102-202105

*633

main23470-25010i201807-202105

*632

23477GUIDE, FUEL PUMP LIFTER

main23477-25010i201807-202105

*632

main23477-F2060i202105

*633

23695ACLAMP, NOZZLE HOLDER

main23695-24010×4i202102-202105

*633

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-24070i202105-202304

*632

main23801-F2020i202102-202105

*633

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-24020i201807-202105

*632

main23814-F2030i202102-202105

*633

23814BPIPE, FUEL DELIVERY

main23814-24010i201807-202105

*632

main23814-24011i202211-202304

*632

23825GUARD, FUEL DELIVERY

main23825-24010i202105-202205

main23825-F2030i202205

(L)

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-24040i201807-202105

main23841-37081i202105

main23841-F3050i202110

23841KCLAMP, FUEL PIPE

main23841-25040i201807-202006

main23841-F2020i202105

(L)

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-24010i202105-202308

main23847-F2020i202309

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020i202105-202304

*632

main23851-F2020i202102-202105

*633

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030i201807-202105

*632

main23851-F2030i202102-202105

*633

23891SPACER, FUEL DELIVERY

main23891-24010×2i201807-202105

*632

23901TUBE SUB-ASSY, FUEL

main23901-F2060i201807-201905

main23901-F2061i201906-202105

main23901-F2150i202105

23910ATUBE SUB-ASSY, FUEL

main23901-24070i201807-201902

main23901-24071i202105

(J)

main23901-24081i202105

(J)

main23901-F2090i202105

(L)

main23901-F2100i202105

(L)

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010506350

main90105-06350

9010506352

main90105-06352

9010506376

main90105-06376

9010508510

main90105-08510

90105C0416

main90105-C0416

90105C0421

main90105-C0421

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

91551G0840

main91551-G0840

91553G1040

main91553-G1040
