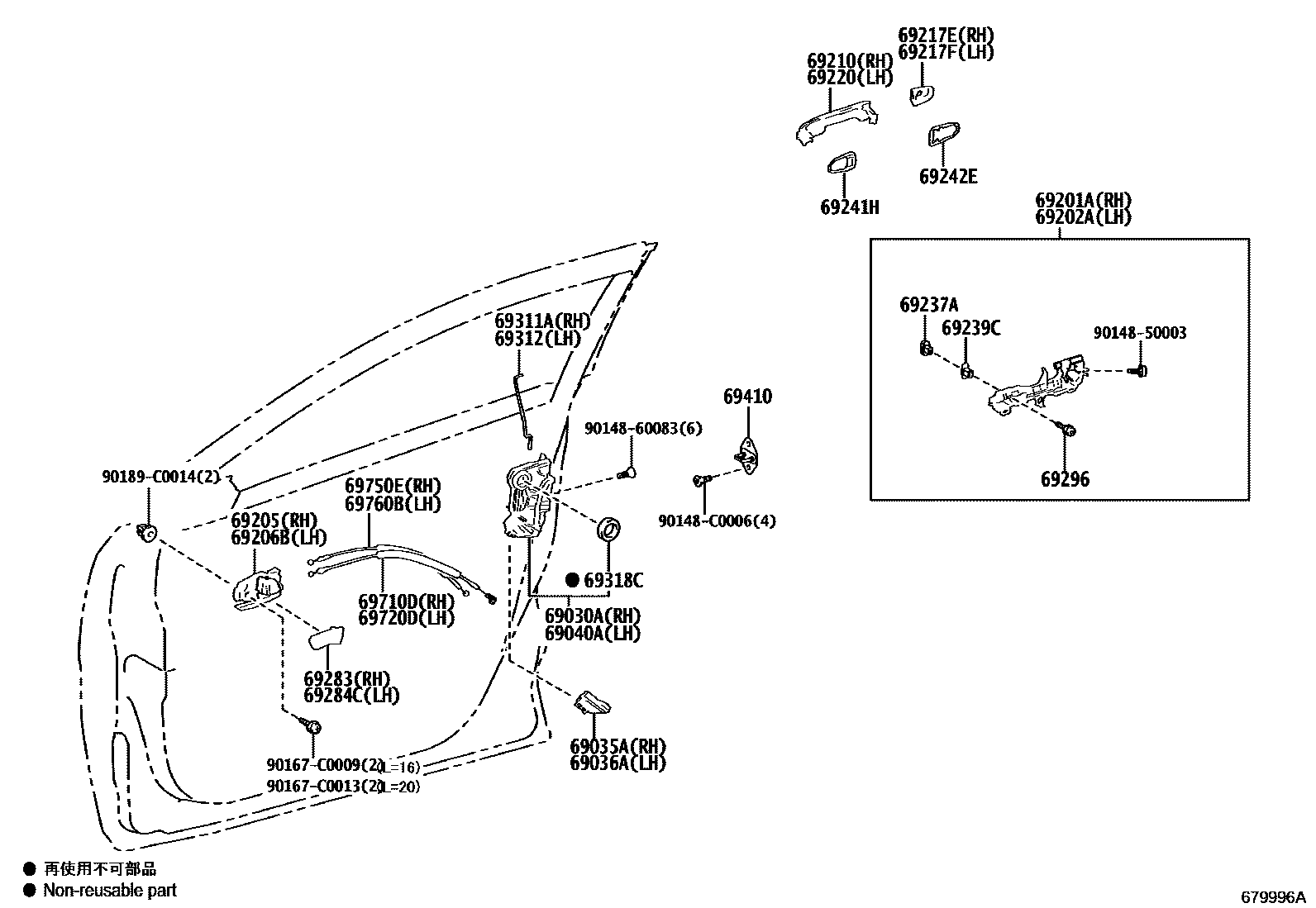

Toyota IZOA — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070 ,2KR
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
BLACK MC.,209 ,2TA
RED MC.,2NE ,2PN ,3T3
DK. BROWN M.M.,4U3
OXIDE BRONZE ME.,2RF ,2TD ,6X1
BLUE ME.,2QG
NEBULA BLUE ME.,2PP ,8X2
WHITE PEARL CS.,070 ,2KR
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
BLACK MC.,209 ,2TA
RED MC.,2PN ,3T3
DK. BROWN M.M.,4U3
OXIDE BRONZE ME.,2RF ,2TD ,6X1
BLUE ME.,2QG
NEBULA BLUE ME.,2PP ,8X2
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070 ,2KR
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
BLACK MC.,209 ,2ND
RED MC.,2NE ,2PN ,3T3
DK. BROWN M.M.,4U3
OXIDE BRONZE ME.,2RF ,2TD ,6X1
BLUE ME.,2QG
NEBULA BLUE ME.,2PP ,8X2
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,070 ,2KR
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
BLACK MC.,209 ,2ND
RED MC.,2NE ,2PN ,3T3
DK. BROWN M.M.,4U3
OXIDE BRONZE ME.,2RF ,2TD ,6X1
BLUE ME.,2QG
NEBULA BLUE ME.,2PP ,8X2
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070 ,2KR
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
BLACK MC.,209 ,2TA
RED MC.,2PN ,3T3
DK. BROWN M.M.,4U3
OXIDE BRONZE ME.,2RF ,2TD ,6X1
BLUE ME.,2QG
NEBULA BLUE ME.,2PP ,8X2
WHITE PEARL CS.,070 ,2KR
PLATINUM WHITE PEARL MC.,089 ,2PU
METAL STREAM ME,1K0 ,2UY
BLACK MC.,209 ,2ND
RED MC.,2PN ,3T3
DK. BROWN M.M.,4U3
OXIDE BRONZE ME.,2RF ,2TD ,6X1
BLUE ME.,2QG
NEBULA BLUE ME.,2PP ,8X2
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
90148C0006
main90148-C0006
90167C0009
main90167-C0009
90167C0013
main90167-C0013
90189C0014
main90189-C0014
33 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota IZOA
This section contains 33 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota IZOA. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH.
