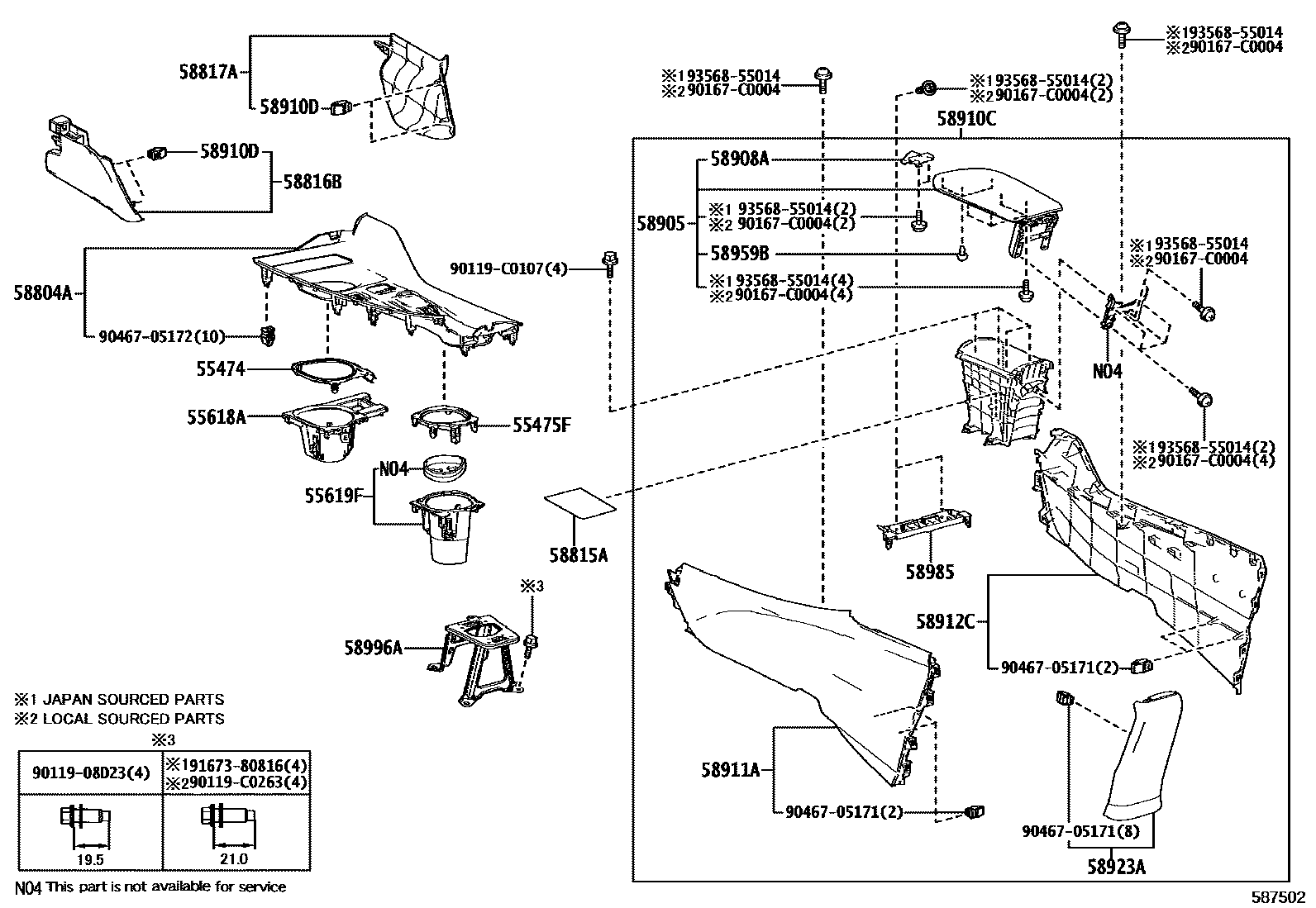

Toyota IZOA — CONSOLE BOX & BRACKET

55474GARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER

main55474-F4051iKPX10..E,N202005

main55474-F4070iKPX10..D202005

55475FGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER NO.2

main55475-F4051iKPX10..E,N202005

main55475-F4070iKPX10..D202005

55618AHOLDER, CONSOLE BOX CUP

main55618-F4050iKPX10202005

55619FHOLDER, CONSOLE BOX CUP, NO.2

main55619-F4070iKPX10202005

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-F4190iKPX10..D202005

main58804-F4200iKPX10..E,N202005

58815ACARPET, CONSOLE BOX

main58815-F4020iKPX10202005

58816BINSERT, CONSOLE BOX

main58816-F4030-C0iKPX10..D,N202005

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-F4030-C0iKPX10..D,N202005

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-F4040-C0iKPX10..D202005

BLACK,TRIM1#

main58905-F4040-E0iKPX10..E202005

LICORICE,TRIM2#

main58905-F4040-J0iKPX10..N202005

DEEP BLUE,TRIM2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-F4030iKPX10202005

58910CBOX ASSY, CONSOLE, REAR

main58910-F4020-C0iKPX10..N202005

BLACK,TRIM2#

main58910-F4020-C1iKPX10..E202005

BLACK,TRIM2#

main58910-F4020-C2iKPX10..D202005

BLACK,TRIM1#

58910DCLIP(FOR CONSOLE BOX)

main90467-05172×4iKPX10202005

58911APANEL, BOX SIDE, NO.1

main58911-F4060-C0iKPX10..D,N202005

BLACK,TRIM2#

58912CPANEL, BOX SIDE, NO.2

main58912-F4060-C0iKPX10..D,N202005

BLACK,TRIM2#

58923APANEL, CONSOLE REAR END

main58923-F4040-C0iKPX10..D,N202005

BLACK,TRIM2#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-35010×3iKPX10202005

58985RETAINER, CONSOLE BOX

main58985-F4030iKPX10202005

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-F4050iKPX10202005

9011908D23

main90119-08D23

90119C0107

main90119-C0107

90119C0263

main90119-C0263

90167C0004

main90167-C0004

9046705171

main90467-05171

9046705172

main90467-05172

9167380816

main91673-80816

9356855014

main93568-55014

26 parts on this diagram · 1 diagram in section
