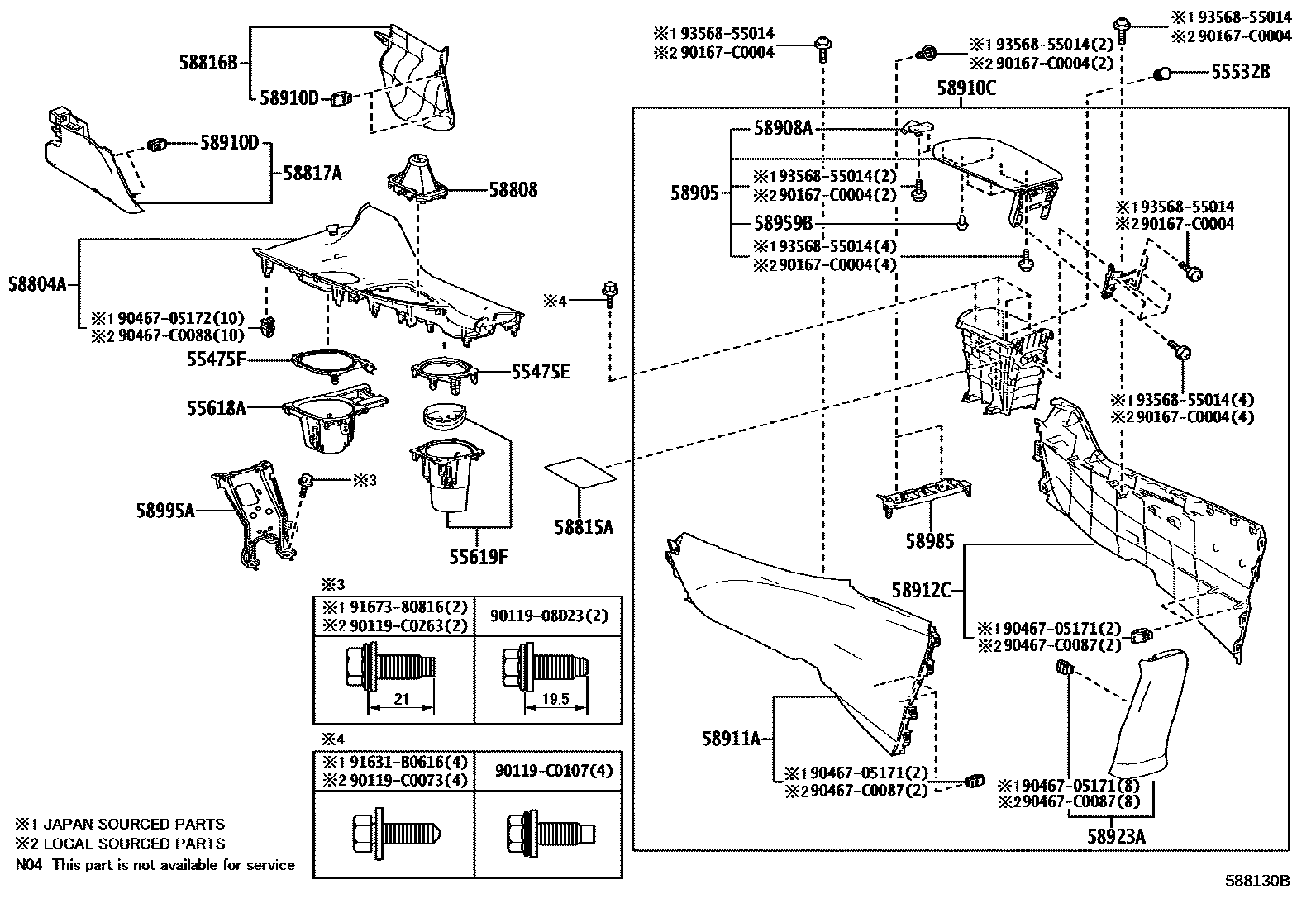

Toyota IZOA — CONSOLE BOX & BRACKET
55475EGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER
55475FGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER NO.2
55532BCOVER, CIGAR LIGHTER HOLE
55618AHOLDER, CONSOLE BOX CUP
55619FHOLDER, CONSOLE BOX CUP, NO.2
58804APANEL SUB-ASSY, CONSOLE, UPPER
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#
BLACK
BLACK,TRIM2#
58815ACARPET, CONSOLE BOX
58816BINSERT, CONSOLE BOX
BLACK,TRIM2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,TRIM2#
LICORICE,TRIM2#
DK.SADDLE TAN,TRIM2#
DEEP BLUE,TRIM20
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM20
BLACK,TRIM2#
BLACK,TRIM20,TRIM = EBXX,ECXX
BLACK,TRIM2#
58910DCLIP(FOR CONSOLE BOX)
(L)
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM2#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM2#
58923APANEL, CONSOLE REAR END
BLACK,TRIM2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58985RETAINER, CONSOLE BOX
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
9011908D23
main90119-08D23
90119C0073
main90119-C0073
90119C0107
main90119-C0107
90119C0263
main90119-C0263
90167C0004
main90167-C0004
9046705171
main90467-05171
9046705172
main90467-05172
90467C0087
main90467-C0087
90467C0088
main90467-C0088
91631B0616
main91631-B0616
9167380816
main91673-80816
9356855014
main93568-55014
32 parts on this diagram · 1 diagram in section
