Toyota IZOA — ABS & VSC

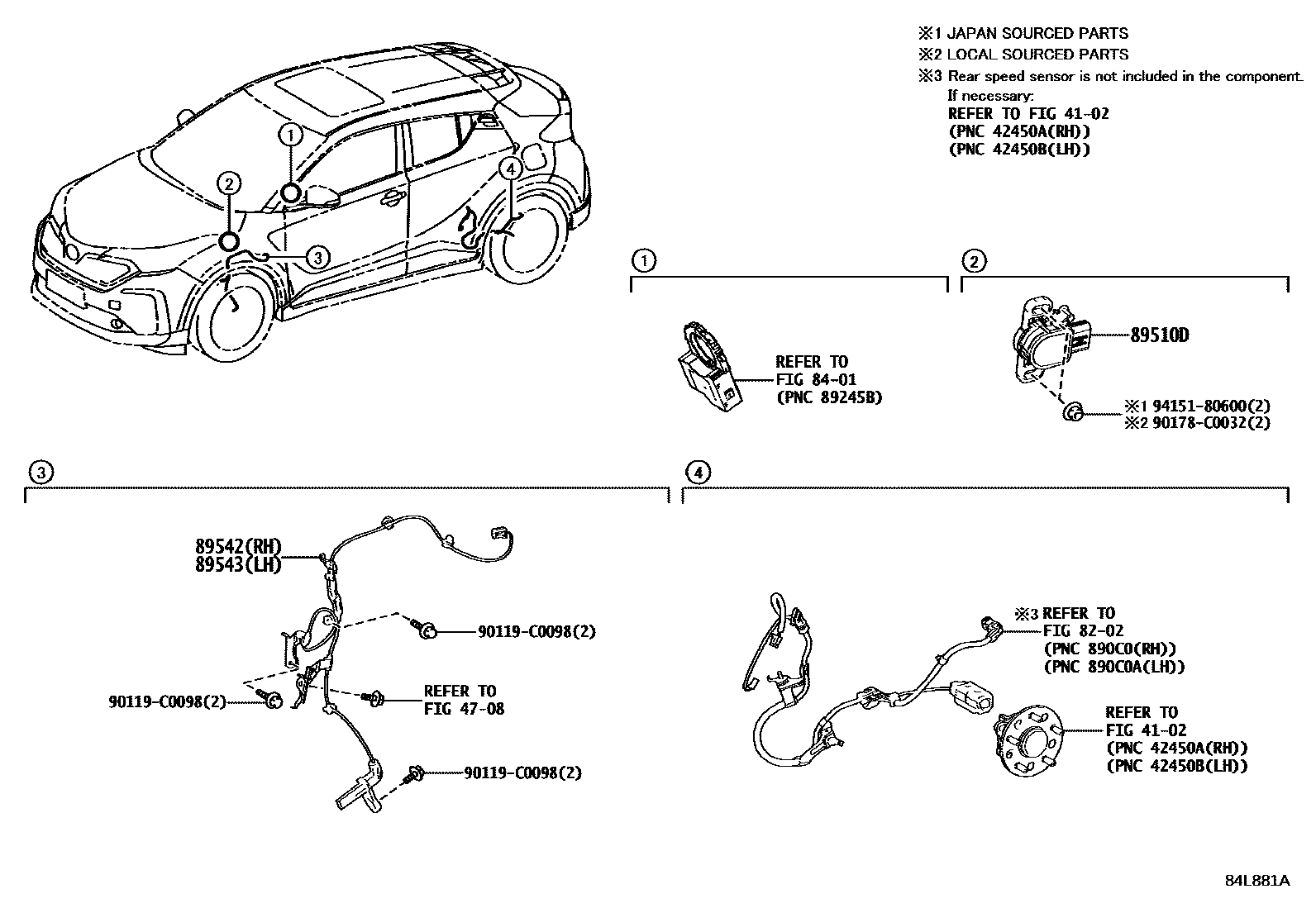

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-02020i202007

main89510-47040i202005-202006

89542SENSOR, SPEED, FRONT RH

main89542-F4030i202005

89543SENSOR, SPEED, FRONT LH

main89543-F4030i202005

90119C0098

main90119-C0098

90178C0032

main90178-C0032

9415180600

main94151-80600

10 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota IZOA

This section contains 10 genuine Toyota parts for the ABS & VSC system of the Toyota IZOA. Key components include: REAR AXLE SHAFT & HUB, BRAKE TUBE & CLAMP, WIRING & CLAMP, SWITCH & RELAY & COMPUTER, SENSOR ASSY, BRAKE PEDAL STROKE.
