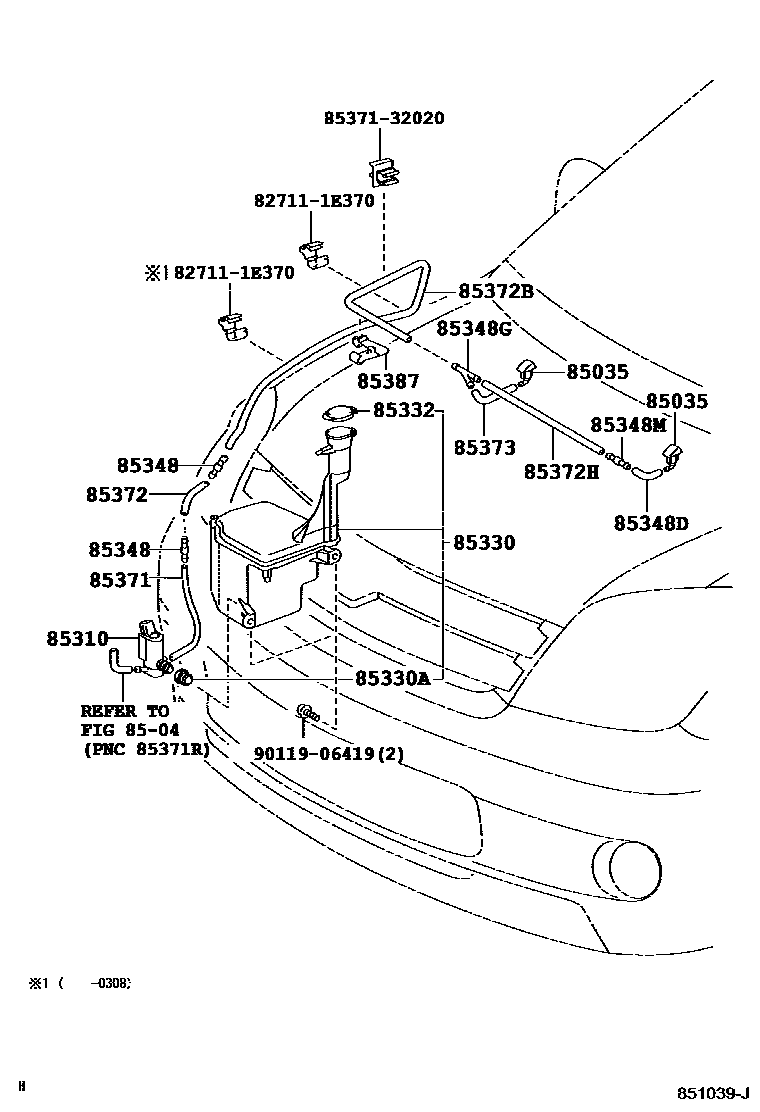

Toyota IST — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-68010×2i200204-200505

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10290i200204-200505

85330JAR ASSY, WINDSHIELD WASHER

main85315-52240i200204-200505

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i200204-200505

85332CAP, WINDSHIELD WASHER JAR

main85316-26030i200204-200505

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122×2i200204-200505

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230i200204-200505

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250i200204-200505

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i200204-200505

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001i200204-200505

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200204-200505

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200204-200505

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i200204-200505

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i200204-200505

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22410i200204-200505

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

9011906419

main90119-06419

19 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota IST

This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota IST. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
