Toyota IST — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1������-� 0003 1�������� �������� 0004 1��� 0005 1������������ 0006 1�������� & �����-��� ���� 0007 1���,�-�,��� & ����-��

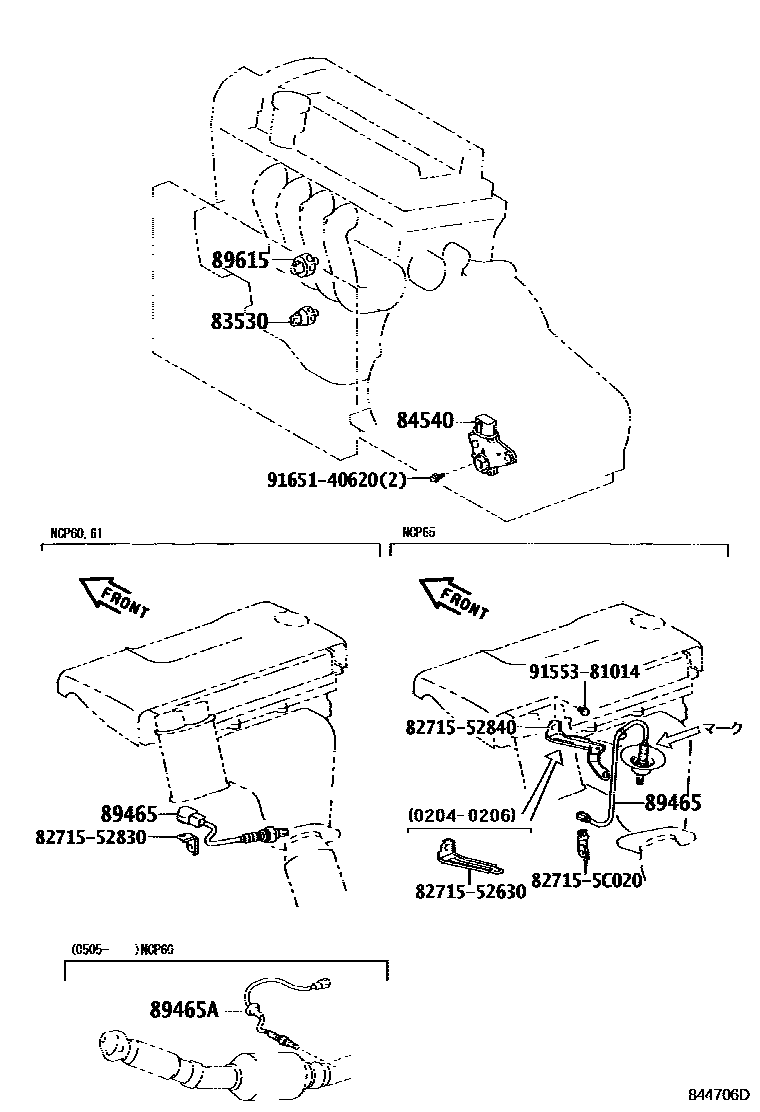

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP6#200204-200505

main83530-60020iNCP6#200204-200505

84540SWITCH ASSY, NEUTRAL START

main84540-46010iNCP6#200505-200707

main84540-52010iNCP60200204-200505

main84540-52050iNCP61,65200204-200505

89465SENSOR, OXYGEN

main89465-20810iNCP60,61200204-200505

main89465-52160iNCP65200204-200206

main89465-52210iNCP65200301-200505

main89465-52240iNCP65200206-200301

89465ASENSOR, OXYGEN NO.2

main89465-52220iNCP60200505

89615SENSOR, KNOCK CONTROL

main89615-52030iNCP6#200505

main89615-52040iNCP6#..F,S200204-200309

8271552630BRACKET,WIRING HARNESS CLAMP

main82715-52630

8271552830BRACKET,WIRING HARNESS CLAMP

main82715-52830

8271552840BRACKET,WIRING HARNESS CLAMP

main82715-52840

827155C020BRACKET,WIRING HARNESS CLAMP

main82715-5C020

9155381014

main91553-81014

9165140620

main91651-40620

11 parts on this diagram · 7 diagrams in section
