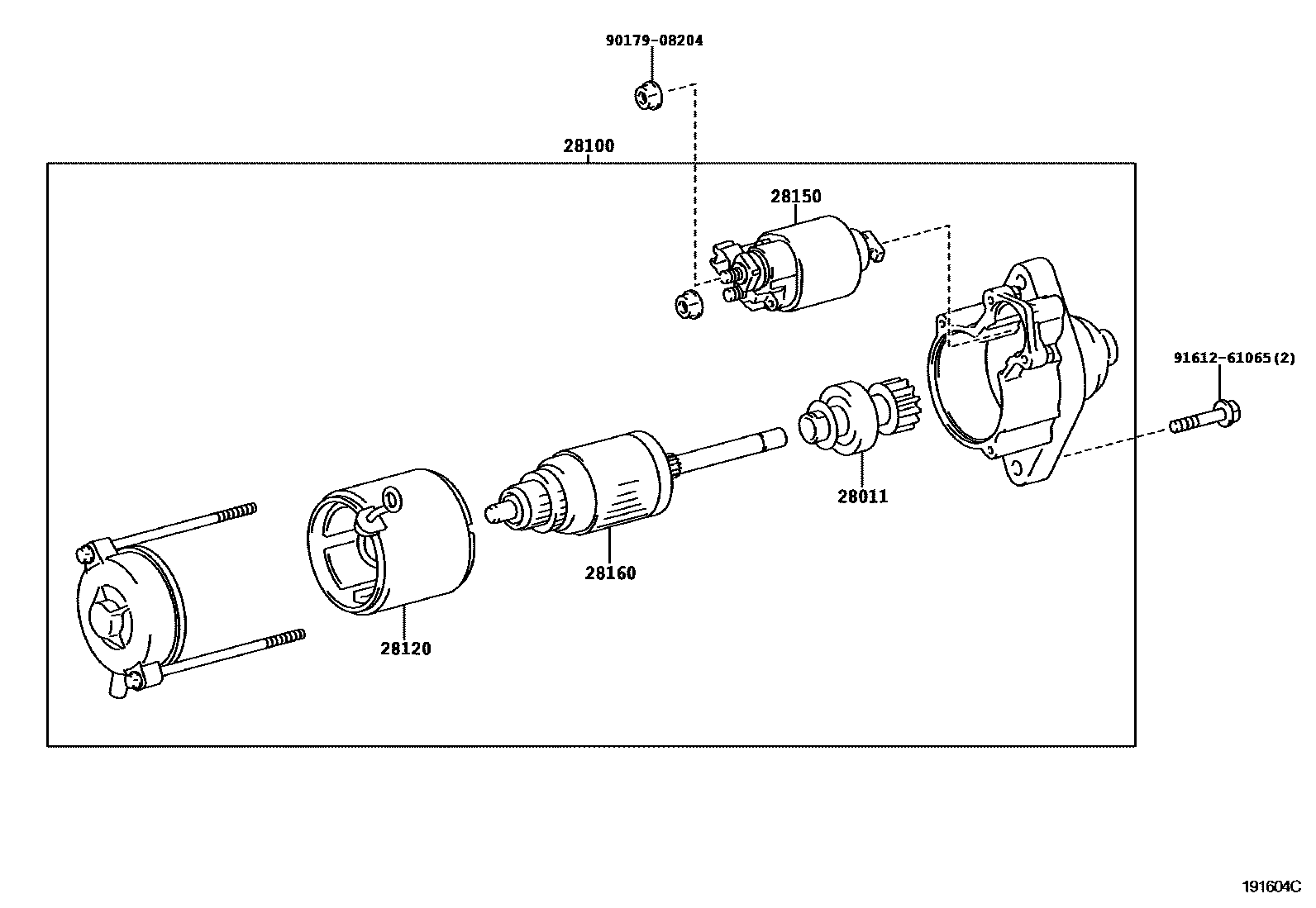

Toyota IST — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-70020i200505

28100STARTER ASSY

main28100-21030supersedes 28100-21050i200204-200505

28120YOKE ASSY, STARTER

main28120-70050supersedes 28120-70020i200505

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i200505-200705

main28150-21020i200706-200707

28160ARMATURE ASSY, STARTER

main28160-70050supersedes 28160-70021i200204-200505

9017908204

main90179-08204

9161261065

main91612-61065

7 parts on this diagram · 2 diagrams in section

STARTER for Toyota IST

This section contains 8 genuine Toyota parts for the STARTER system of the Toyota IST. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, YOKE ASSY, STARTER, HOLDER ASSY, STARTER BRUSH, SWITCH ASSY, MAGNET STARTER.
