Toyota IST — RADIATOR GRILLE

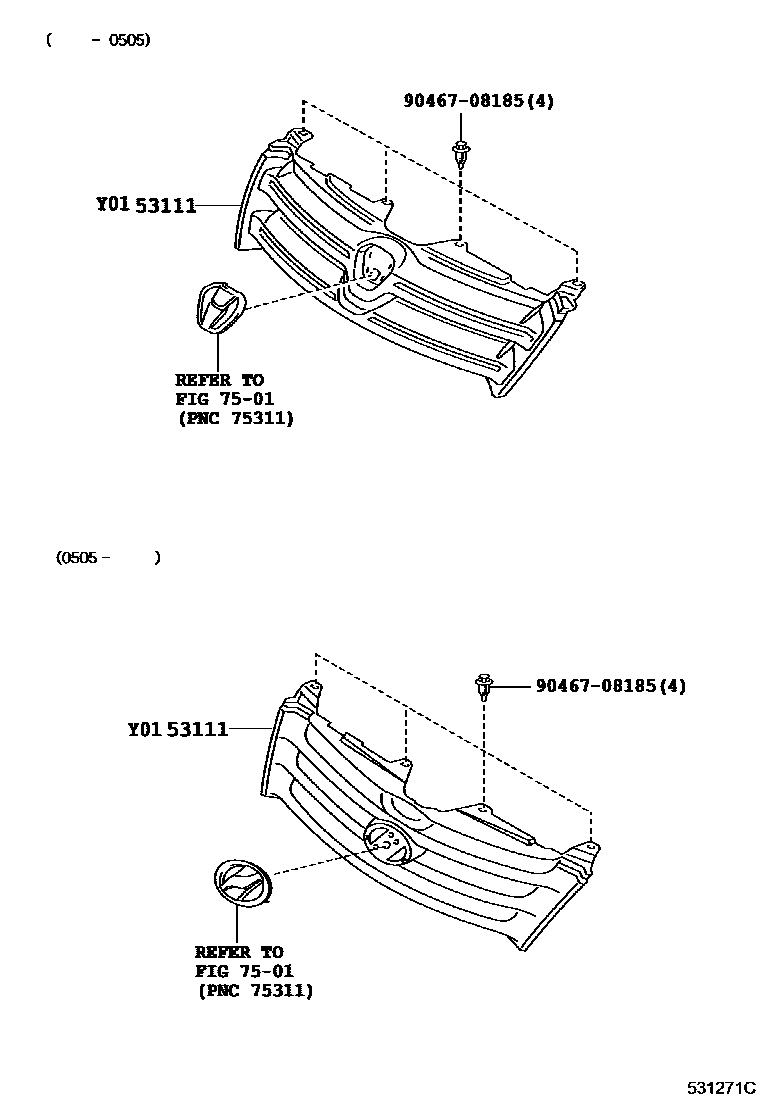

Parts diagram
53111GRILLE, RADIATOR
main53111-52190-A0i200204-200505
WHITE,068
main53111-52190-A1i200204-200505
WHITE PM.,057
main53111-52190-B0i200204-200304
SILVER ME.,199
main53111-52190-B1i200304-200505
SILVER M.M.,1E7
main53111-52190-B2i200404-200505
GRAY M.M.,1E3
main53111-52190-C0i200204-200505
BLACK MC.,209
main53111-52190-D0i200204-200505
SUPER RED 5,3P0
main53111-52190-E0i200204-200505
BEIGE ME.,4R0
main53111-52190-F0i200304-200505
YELLOW PM.,595
main53111-52190-H0i200404-200505
LT.AQUA ME.OP.,761
main53111-52190-J0i200204-200505
DK.BLUE M.M.,8P4
main53111-52190-J1i200204-200304
BLUE ME.,8P1
main53111-52400-A0i200505-200707
WHITE PM.,057
main53111-52400-A1i200505-200707
WHITE,068
main53111-52400-A2i200605-200707
WHITE PEARL CS.,064
main53111-52400-B1i200505-200707
SILVER M.M.,1E7
main53111-52400-C0i200505-200707
BLACK MC.,209
main53111-52400-D0i200505-200707
SUPER RED 5,3P0
main53111-52400-G0i200505-200707
LT.OLIVE ME.,6U4
main53111-52400-J0i200505-200707
DK.BLUE M.M.,8P4
main53111-52400-J1i200505-200707
LT. BLUE M.M.,8S9
main53111-52410-A1i200505-200707
WHITE,068
main53111-52410-B1i200505-200707
SILVER M.M.,1E7
main53111-52410-C0i200505-200707
BLACK MC.,209
main53111-52410-D0i200505-200707
SUPER RED 5,3P0
main53111-52410-J1i200505-200707
LT. BLUE M.M.,8S9
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 75-01
9046708185
main90467-08185

3 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE for Toyota IST

This section contains 5 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota IST. Key components include: FRONT BUMPER & BUMPER STAY, GRILLE, RADIATOR, GRILLE, RADIATOR, LOWER, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
