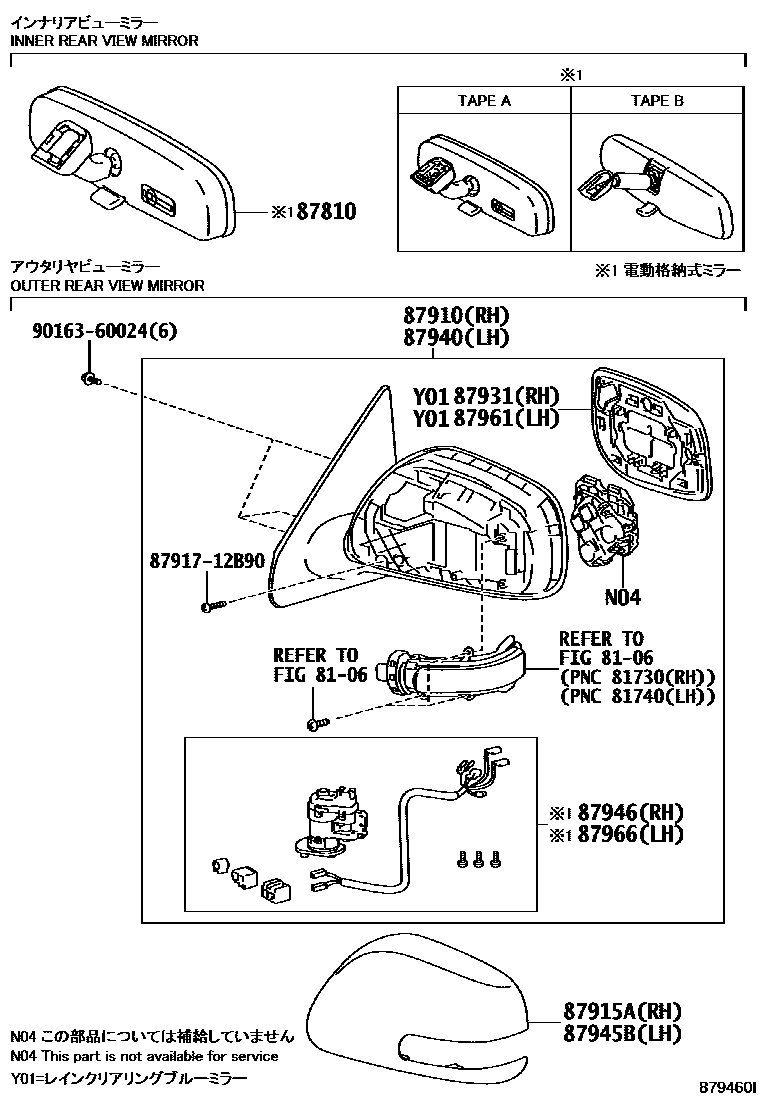

Toyota IST — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915ACOVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER M.M.,1E7
BLACK MC.,209
RED M.M.,3R3
BRONZE M.M.,4T3
GREEN M.M.,6V2
DK.BLUE MC.,8S6
BLUE ME.,8T7
COPPER M.M.,4T9
DEEP AMETHYST M.M.,9AH
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945BCOVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER M.M.,1E7
BLACK MC.,209
RED M.M.,3R3
BRONZE M.M.,4T3
GREEN M.M.,6V2
DK.BLUE MC.,8S6
BLUE ME.,8T7
COPPER M.M.,4T9
DEEP AMETHYST M.M.,9AH
87946RETRACTOR, OUTER MIRROR, RH
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
8791712B90ESCUTCHEON
main87917-12B90
9016360024
main90163-60024
12 parts on this diagram · 1 diagram in section
MIRROR for Toyota IST
This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota IST. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, OUTER MIRROR, RH.
