Toyota IST — MIRROR

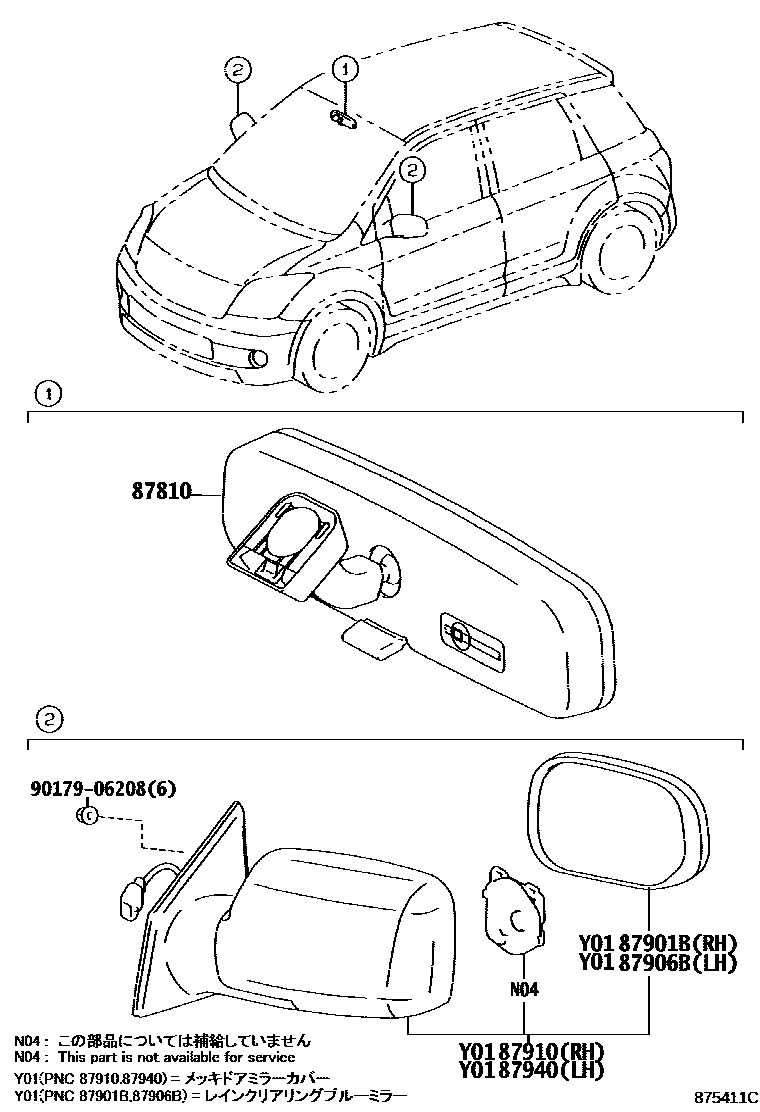

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W030i200204-200304

main87810-52040i200304-200505

main87810-52041i200612

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-52640i200505

main87931-52110supersedes 87931-1A830i200204-200505

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-52620i200505

main87961-52090supersedes 87961-1E830i200204-200505

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-52730supersedes 87910-52720i200505-200707

main87910-52350-H0i200212-200303

main87910-52360-A0i200404-200505

main87910-52360-A1i200404-200505

main87910-52360-B0supersedes 87910-52350-B0i200204-200304

main87910-52360-B1i200401-200505

main87910-52360-B2i200404-200505

main87910-52360-C0supersedes 87910-52350-C0i200204-200505

main87910-52360-D0i200401-200505

main87910-52360-E0i200401-200505

main87910-52360-F0i200401-200505

main87910-52360-H0i200404-200505

main87910-52360-J0i200401-200505

main87910-52360-J1supersedes 87910-52350-J1i200204-200304

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-52710supersedes 87940-52700i200505-200707

main87940-52330-H0i200302-200304

main87940-52340-A0i200401-200505

main87940-52340-A1i200401-200505

main87940-52340-B0supersedes 87940-52330-B0i200204-200304

main87940-52340-B1i200401-200505

main87940-52340-B2i200404-200505

main87940-52340-C0i200404-200505

main87940-52340-D0i200404-200505

main87940-52340-E0i200404-200505

main87940-52340-F0supersedes 87940-52330-F0i200204-200505

main87940-52340-H0i200404-200505

main87940-52340-J0i200401-200505

main87940-52340-J1supersedes 87940-52330-J1i200204-200304

9017906208

main90179-06208

6 parts on this diagram · 2 diagrams in section

MIRROR for Toyota IST

This section contains 8 genuine Toyota parts for the MIRROR system of the Toyota IST. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
