Toyota IST — METER

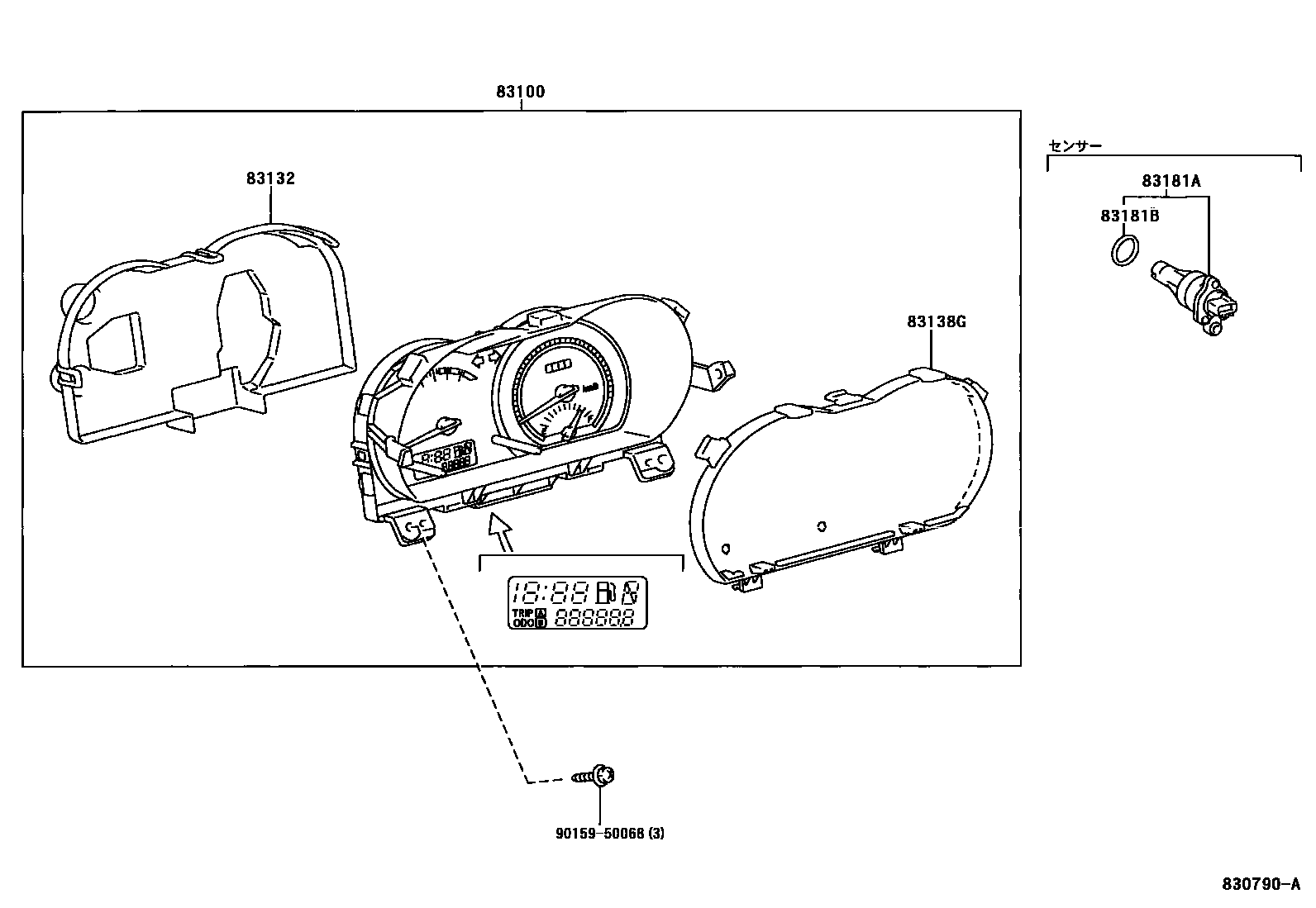

Parts diagram

83100METER ASSY, COMBINATION

main83800-52590i200204-200304

main83800-52591i200304-200501

main83800-52592i200502-200505

main83800-52D10i200505-200609

main83800-52D20i200505-200608

main83800-52L80i200609

main83800-52L90i200608

main83800-5C660i200404-200501

main83800-5C661i200502-200505

83132CASE, COMBINATION METER

main83821-52590i200204-200505

main83821-52D10i200505-200608

83138GGLASS, COMBINATION METER

main83852-52590i200204-200505

83181ASENSOR, SPEEDOMETER

main83181-12040i200204-200505

83181BRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018i200204-200505

9015950068

main90159-50068

6 parts on this diagram · 1 diagram in section

METER for Toyota IST

This section contains 6 genuine Toyota parts for the METER system of the Toyota IST. Key components include: METER ASSY, COMBINATION, CASE, COMBINATION METER, GLASS, COMBINATION METER, SENSOR, SPEEDOMETER, RING, O (FOR SPEEDOMETER SENSOR).
