Toyota IST — FRONT FENDER APRON & DASH PANEL

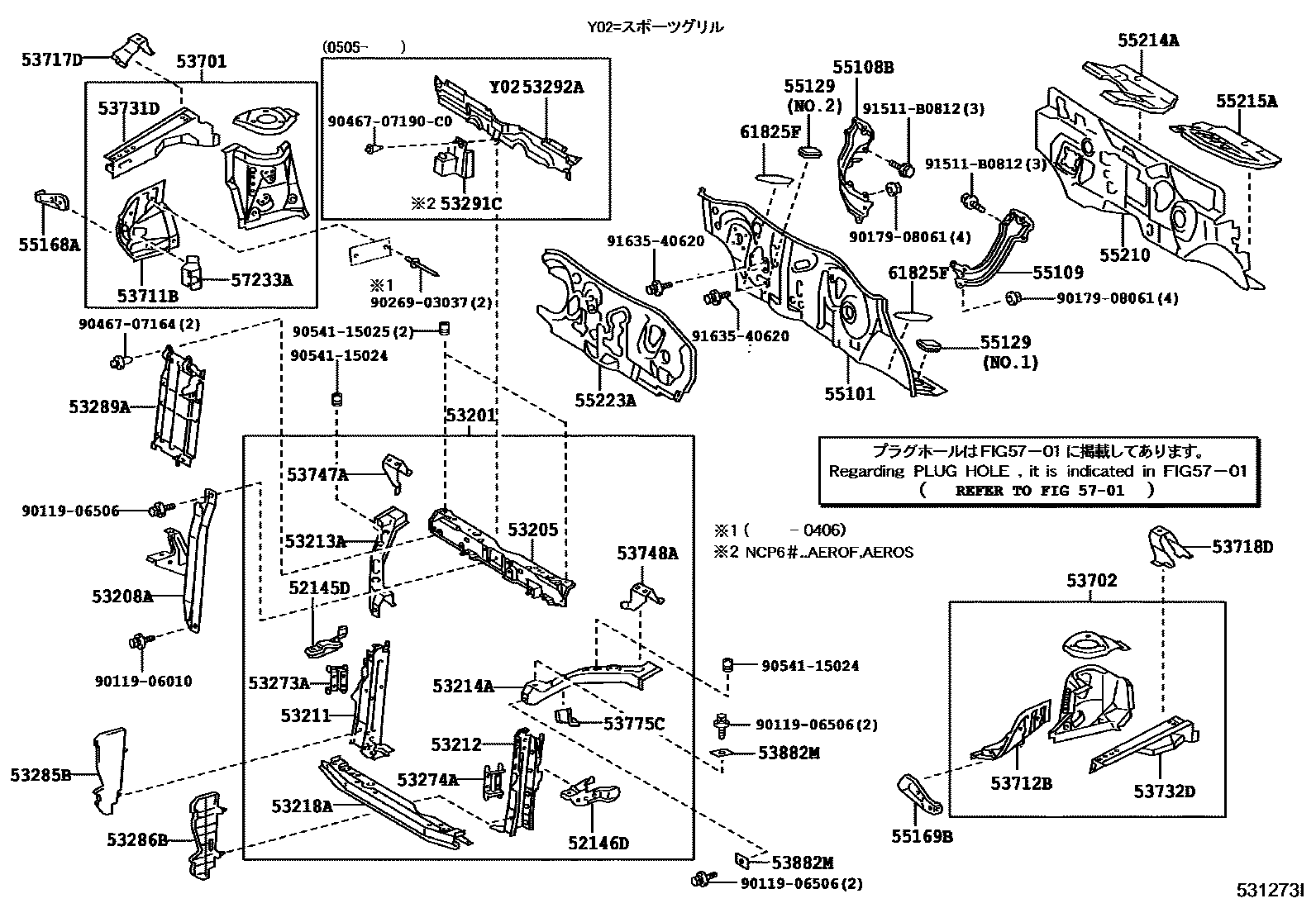

Parts diagram

52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-52080i200505

52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-52080i200204-200505

53201SUPPORT SUB-ASSY, RADIATOR

main53210-52110i200204-200505

main53210-52111i200505-200707

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-52030i200204-200304

main53205-52031i200304-200411

main53205-52032i200411-200505

main53205-52033i200505

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-52050i200204-200505

53211SUPPORT, RADIATOR, RH

main53211-52040i200204-200505

main53211-52041i200608

53212SUPPORT, RADIATOR, LH

main53212-52040i200204-200505

main53212-52041i200608

53213ASUPPORT, RADIATOR, UPPER RH

main53213-52060i200204-200505

53214ASUPPORT, RADIATOR, UPPER LH

main53214-52060i200204-200505

53218ASUPPORT, RADIATOR, LOWER

main53218-52010i200204-200505

53273AREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-52010i200204-200505

53274AREINFORCEMENT, RADIATOR SUPPORT, LH

main53273-52010i200204-200505

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-52070i200204-200505

main53285-52250i200505

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-52020i200204-200505

main53286-52150i200505

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-52010i200204-200505

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-52080i200505

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-52030i200505

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-52900i200204-200505

main53701-52907i200505-200707

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-52900i200204-200505

53711BAPRON, FRONT FENDER, FRONT RH

main53711-52010i200204-200505

53712BAPRON, FRONT FENDER, FRONT LH

main53712-52010i200505

53717DGUSSET, FENDER APRON, RH

main53717-52030i200505

53718DGUSSET, FENDER APRON, LH

main53718-52030i200204-200505

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-52010i200204-200505

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-52010i200204-200505

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-52010i200204-200505

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-52010i200204-200505

53775CBRACKET, COOL AIR INTAKE DUCT MOUNTING

main53775-52010i200204-200505

53882MSEAL, FRONT FENDER

main53882-16030×4i200204-200505

55101PANEL SUB-ASSY, DASH

main55101-52240i200204-200307

main55101-52241i200307-200505

55108BBRACE SUB-ASSY, DASH TO FRAME, RH

main55108-52010i200204-200505

55109BRACE SUB-ASSY, DASH TO FRAME, LH

main55109-52060i200505

55129COVER, DASH PANEL HOLE

main55129-52010i200204-200505

main55129-52030i200204-200505

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-52080i200505

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-52080i200204-200505

55210INSULATOR ASSY, DASH PANEL

main55210-52110i200204-200505

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-52020i200204-200505

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-52020i200204-200505

55223AINSULATOR, DASH PANEL, OUTER

main55223-52010i200204-200505

5701HOLE PLUG

→ Go to FIG 57-01

57233ARETAINER, ENGINE FRONT SUPPORT, RH

main57233-52010i200204-200412

main57233-52011i200412-200505

61825FPLATE, NOISE CONTROL

main61826-47010×2i200204-200505

9011906010

main90119-06010

9011906506

main90119-06506

9017908061

main90179-08061

9026903037

main90269-03037

9046707164

main90467-07164

9046707190C0

main90467-07190C0

9054115024

main90541-15024

9054115025

main90541-15025

91511B0812

main91511-B0812

9163540620

main91635-40620

52 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota IST

This section contains 52 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota IST. Key components include: BRACKET, FRONT BUMPER SIDE MOUNTING, RH, BRACKET, FRONT BUMPER SIDE MOUNTING, LH, SUPPORT SUB-ASSY, RADIATOR, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT SUB-ASSY, HOOD LOCK.
