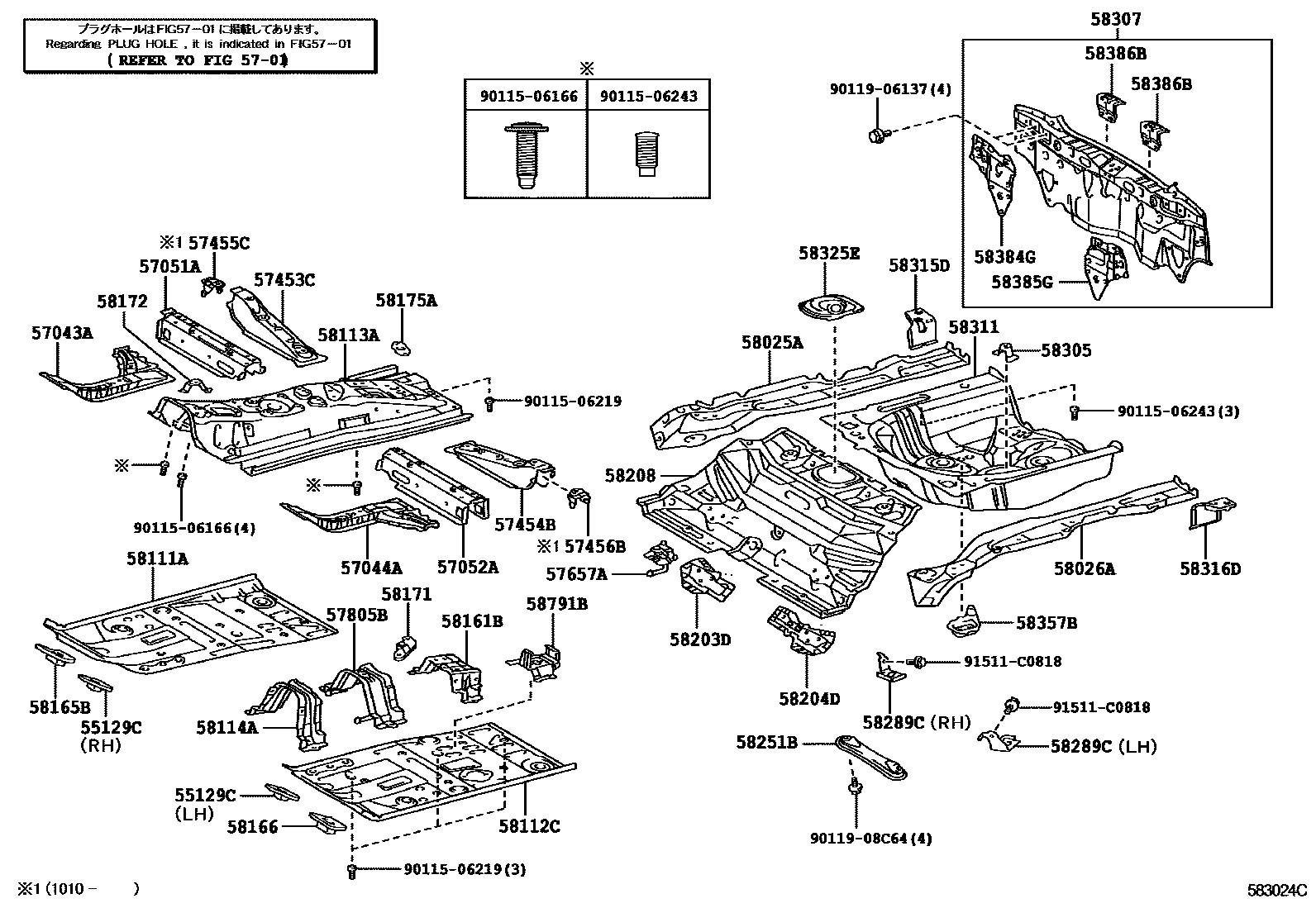

Toyota IST — FLOOR PAN & LOWER BACK PANEL
55129CCOVER, DASH PANEL HOLE
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57453CMEMBER, FRONT FLOOR CROSS SIDE, RH
57454BMEMBER, FRONT FLOOR CROSS SIDE, LH
57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58111APAN, FRONT FLOOR, RH
sub58111-52270
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58165BCOVER, FRONT FLOOR, RH
58166COVER, FRONT FLOOR, LH
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58203DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH
58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH
58251BBRACE, FLOOR PANEL, FRONT
58289CBRACKET, FLOOR BRAKE HOSE, REAR
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58357BBRACKET, ACTUATOR COVER, NO.3 RH
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58791BCARRIER, JACK
9011506166
main90115-06166
9011506219
main90115-06219
9011506243
main90115-06243
9011906137
main90119-06137
9011908C64
main90119-08C64
91511C0818
main91511-C0818
46 parts on this diagram · 2 diagrams in section
