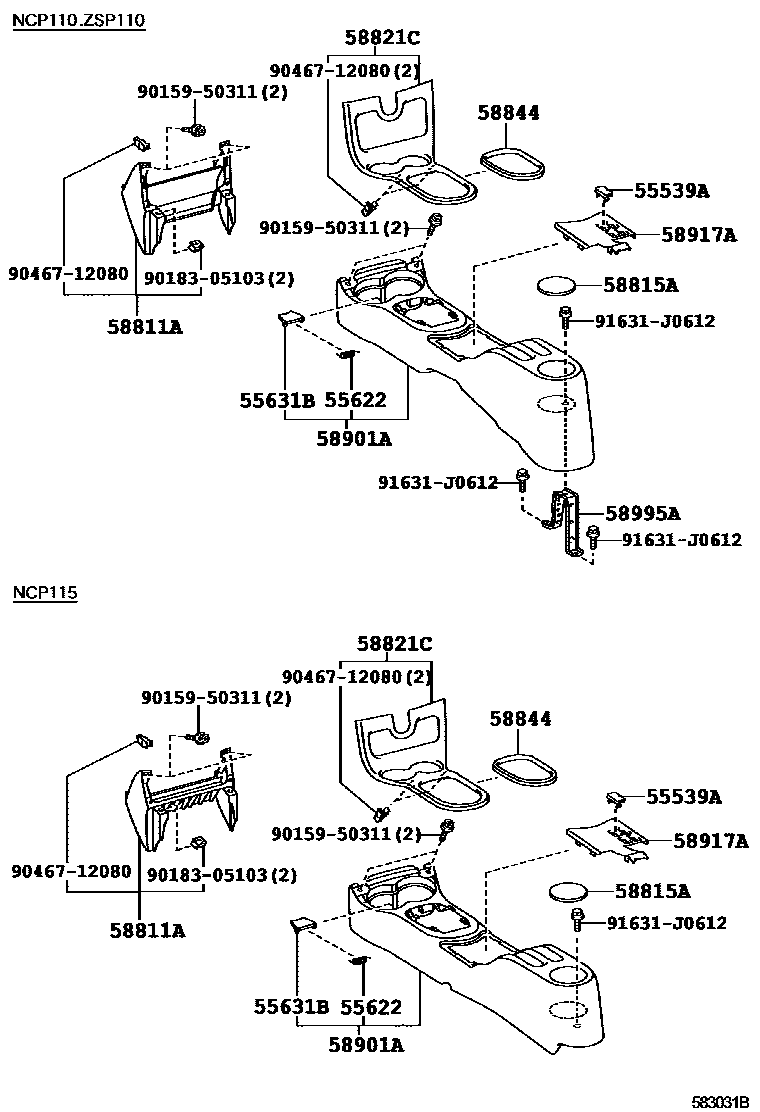

Toyota IST — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-52070×3iNCP110..CBU201112-201206

55622SPRING, INSTR PANEL CUP HOLDER, NO.1

main55622-52040×2iNCP11#,ZSP110..CBU200707

55631BLOCK, INSTRUMENT PANEL CUP HOLDER, NO.1

main55631-52040-B0×2iNCP11#,ZSP110..CBU200707-201604

DK.GRAY,TRIM1#

58811ABOX, CONSOLE, FRONT

main58811-52020-B0iNCP110,ZSP110..CBU200707-201604

DK.GRAY,TRIM1#

main58811-52030-B0iNCP115..CBU200707-201604

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-52050iNCP11#,ZSP110..CBU200707

58821CPANEL, CONSOLE, UPPER

main58821-52050-C0iNCP110,ZSP110..CBU200707-201008

BLACK,TRIM1#

main58821-52060-C0iNCP115..CBU200707-201007

BLACK,TRIM1#

main58821-52061-B1iNCP115..CBU201008-201604

GRAY,TRIM1#

main58821-52071-B1iNCP110..CBU201008-201604

GRAY,TRIM1#

main58821-52070-B0iNCP110..G..CBU200901-201007

main58821-52080-B0iNCP115..G..CBU200901-201007

58844BEZEL, CONSOLE BOX

main58844-52010iNCP11#,ZSP110..CBU200707

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-52050-B0iNCP110,ZSP110..CBU200707-201604

DK.GRAY,TRIM1#

main58901-52060-B0iNCP115..CBU200707-201604

DK.GRAY,TRIM1#

58917ACOVER, CONSOLE BOX, REAR

main58917-52070-B0iNCP110,ZSP110..CBU200707-201604

DK.GRAY,TRIM1#

main58917-52080-B0iNCP115..CBU200707-201604

DK.GRAY,TRIM1#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58902-52020iNCP110,ZSP110..CBU200707

9015950311

main90159-50311

9018305103

main90183-05103

9046712080

main90467-12080

91631J0612

main91631-J0612

14 parts on this diagram · 1 diagram in section
