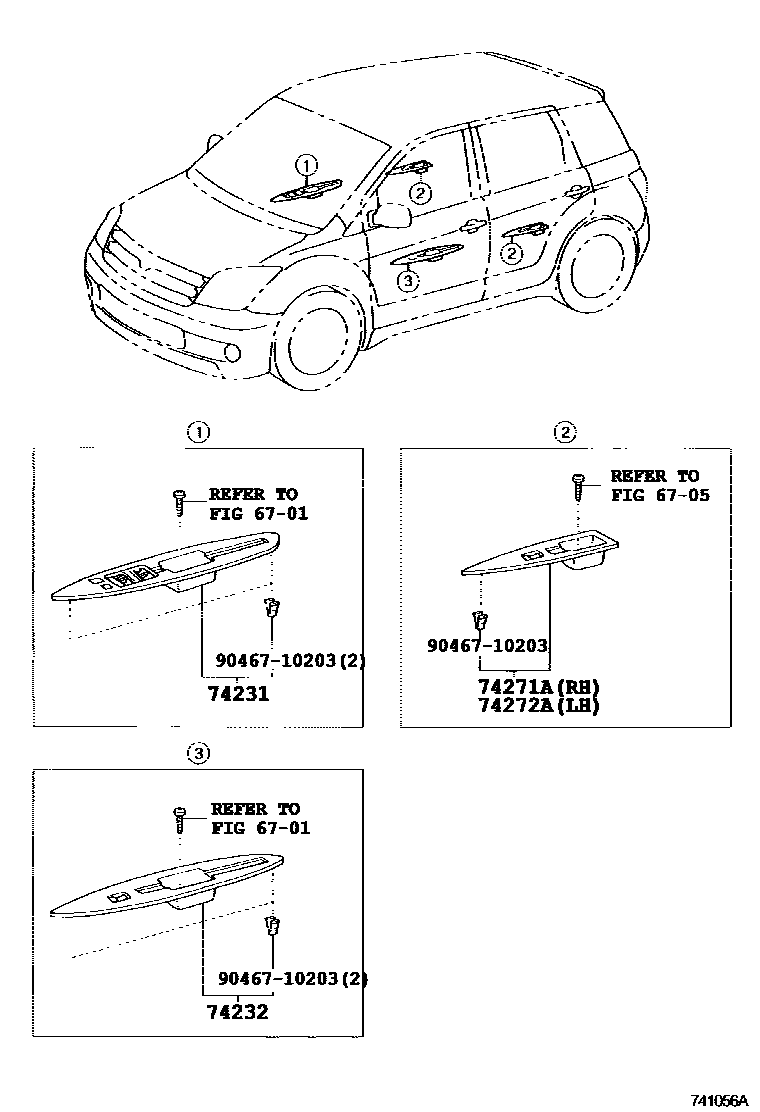

Toyota IST — ARMREST & VISOR

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52190-B0i200204-200505

LT.GRAY,TRIM9#

main74231-52190-B1i200505-200707

DK.GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52130-B0i200204-200505

LT.GRAY,TRIM9#

main74232-52130-B1i200204-200505

DK.GRAY,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-52020-B0i200204-200505

LT.GRAY,TRIM9#

main74271-52020-B1i200505-200707

DK.GRAY,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-52020-B0i200204-200505

LT.GRAY,TRIM9#

main74272-52020-B1i200505-200707

DK.GRAY,TRIM1#

9046710203

main90467-10203

7 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota IST

This section contains 14 genuine Toyota parts for the ARMREST & VISOR system of the Toyota IST. Key components include: FRONT DOOR PANEL & GLASS, REAR DOOR PANEL & GLASS, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH.
