Toyota IST — ABS & VSC

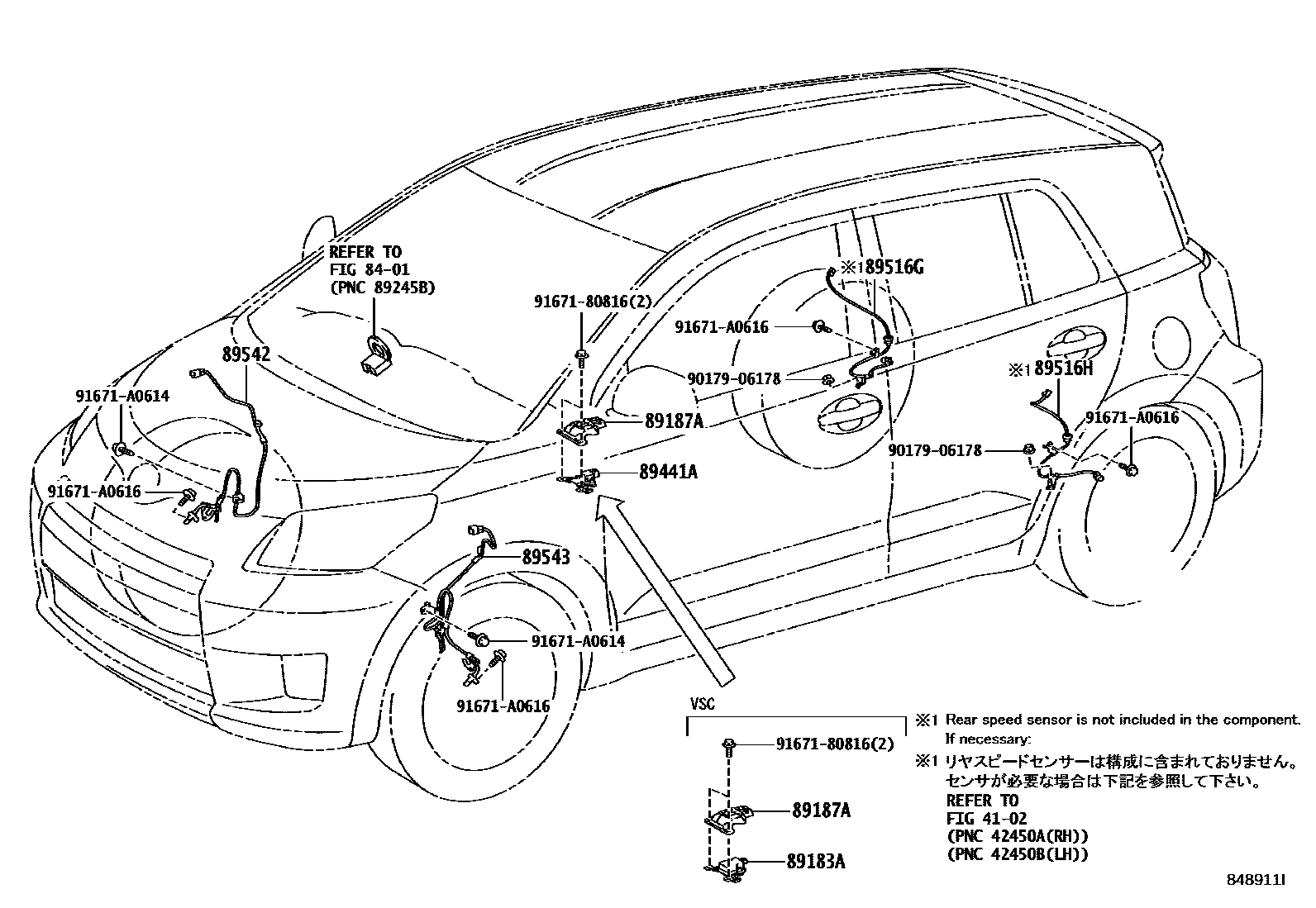

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89183ASENSOR, YAWRATE

main89180-52050i201206

main89180-52070i201206

main89180-52010i200707-200906

main89180-52020i200707-200906

89187APROTECTOR, YAWRATE SENSOR

main89187-52010i200707

main89187-52020i201206

89441ASENSOR, DECELERATION

main89440-52060i200707-201206

main89441-12060i200707-201206

89516GWIRE, SKID CONTROL SENSOR, REAR RH NO.1

main89516-52090i200707-200904

main89516-52110i200905-201604

89516HWIRE, SKID CONTROL SENSOR, REAR LH NO.1

main89516-52100i200707-200904

main89516-52120i200905

89542SENSOR, SPEED, FRONT RH

main89542-52030i200707-200812

main89542-52060i200901-201107

main89542-52120i201108

89543SENSOR, SPEED, FRONT LH

main89543-52030i200707-200810

main89543-52060i200810-201107

main89543-52120i201108

9017906178

main90179-06178

9167180816

main91671-80816

91671A0614

main91671-A0614

91671A0616

main91671-A0616

13 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota IST

This section contains 21 genuine Toyota parts for the ABS & VSC system of the Toyota IST. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, SENSOR, YAWRATE, PROTECTOR, YAWRATE SENSOR, SENSOR, DECELERATION.
